Exhaust Side

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

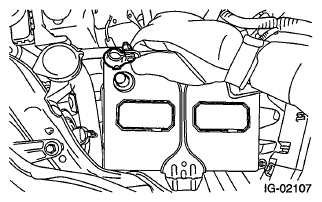

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift up the vehicle.
Remove the under cover. Ref. to REMOVAL , Front Under Cover.
Remove the center exhaust pipe. (LH side only) Ref. to REMOVAL , Center Exhaust Pipe.
Remove ground cable (A) from the engine harness cover, and remove the engine harness cover from the engine. (LH side only)

Fig 2: Identifying Engine Harness Cover And Ground Cable
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the connector from the oil flow control solenoid valve, and remove the oil flow control solenoid valve from the cylinder head.

Fig 3: Locating Oil Flow Control Solenoid Valve And Bolts
Courtesy of SUBARU OF AMERICA, INC.
