Main Relay: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

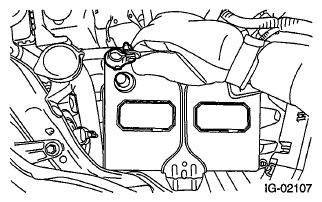

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box lid assembly. Ref. to REMOVAL , Glove Box.
Remove the main relay from the relay holder.

Fig 2: Locating Main Relay From Relay Holder
Courtesy of SUBARU OF AMERICA, INC.
