Fuel Tank: Installation

WARNING: This page is about a different variant/trim than selected.

Support the fuel tank with a transmission jack, set the fuel tank in place, and temporarily tighten the bolts of the fuel tank band.
WARNING: A helper is required to perform this work.

Fig 1: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.
Securely insert the fuel filler hose (A), PCV inlet hose (B) and circulate hose (C) to the spool or stopper, then attach the clamp or clip as shown in the figure.
Tightening torque: 2.5 N.m (0.3 kgf-m, 1.8 ft-lb)

Fig 2: Locating Fuel Filler Hose, PCV Inlet Hose And Circulate Hose
Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Identifying Fuel Filler Hose Components
Courtesy of SUBARU OF AMERICA, INC.
Connect the quick connector of the circulate tube to the evaporation pipe as shown in the figure.
CAUTION:
- Check that there is no damage or dust on the quick connector. If necessary, clean the seal surface of the pipe.
- Make sure that the quick connector is securely connected.

  Fig 4: Connecting Quick Connector Of Circulate Tube
  Courtesy of SUBARU OF AMERICA, INC.

  Fig 5: Locating Circulate Tube Connector
  Courtesy of SUBARU OF AMERICA, INC.
Connect the air vent hose to fuel tank.

Fig 6: Locating Air Vent Hose From Fuel Tank
Courtesy of SUBARU OF AMERICA, INC.
Connect the PCV drain hose (A) and PCV outlet hose (B) to the pressure control solenoid valve.

Fig 7: Identifying PCV Drain Hose And PCV Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Tighten the bolts of the fuel tank band in the order shown in the figure.
Tightening torque: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 8: Locating Fuel Tank Band Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear suspension assembly.
WARNING: A helper is required to perform this work.
1. Support the rear differential with the transmission jack.
2. While supporting the rear suspension assembly, install the rear suspension assembly to the body.
  Tightening torque:

  T1: 70 N.m (7.1 kgf-m, 51.6 ft-lb)

  T2: 200 N.m (20.4 kgf-m, 147.5 ft-lb)

  Fig 9: Locating Rear Suspension Assembly Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the rear shock absorber to the rear suspension arm.
  NOTE: Use a new self-locking nut.

  Tightening torque: 120 N.m (12.2 kgf-m, 88.5 ft-lb)

  Fig 10: Locating Rear Shock Absorber Bolt And Nut
  Courtesy of SUBARU OF AMERICA, INC.
Install the heat shield cover.
Tightening torque: 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 11: Locating Heat Shield Cover Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the bolts (B) and nuts (C) securing the fuel tank protector and install the clip (A) securing the fuel tank protector and heat shield cover.
Tightening torque:

Nut (C): 9 N.m (0.9 kgf-m, 6.6 ft-lb)

Bolt (B): 18 N.m (1.8 kgf-m, 13.3 ft-lb)

Fig 12: Identifying Fuel Tank Protector With Bolts And Nuts
Courtesy of SUBARU OF AMERICA, INC.
Install the propeller shaft. Ref. to INSTALLATION , Propeller Shaft.
Install the rear exhaust pipe and muffler. Ref. to INSTALLATION , Rear Exhaust Pipe. Ref. to INSTALLATION , Muffler.
Lower the vehicle.
Connect the parking brake cable to the parking brake assembly. Ref. to INSTALLATION , Parking Brake Assembly (Rear Disc Brake).
Install the rear disc brake assembly.
Tightening torque: 66 N.m (6.7 kgf-m, 48.7 ft-lb)

Fig 13: Locating Rear Disc Brake Assembly Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear brake hose bracket to the rear housing.
Tightening torque: 33 N.m (3.4 kgf-m, 24.3 ft-lb)

Fig 14: Locating Bolt And Rear Brake Hose Bracket From Rear Housing
Courtesy of SUBARU OF AMERICA, INC.
Install the rear ABS wheel speed sensor harness bracket to the upper arm.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 15: Locating Rear ABS Wheel Speed Sensor Harness Bracket From Upper Arm Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the rear ABS wheel speed sensor to the rear housing.
Tightening torque: 7.5 N.m (0.8 kgf-m, 5.5 ft-lb)

Fig 16: Locating Rear ABS Wheel Speed Sensor From Rear Housing
Courtesy of SUBARU OF AMERICA, INC.
Install the rear wheels.
Tightening torque: 120 N.m (12.2 kgf-m, 88.5 ft-lb)
Connect the quick connector of fuel delivery tube (A) and fuel return tube (B). Ref. to INSTALLATION , Fuel Delivery, Return and Evaporation Lines.
NOTE: When connecting, be careful not to reverse the delivery side and return side.

Fig 17: Identifying Quick Connector Of Fuel Delivery Tube And Fuel Return Tube
Courtesy of SUBARU OF AMERICA, INC.
Install the service hole cover of fuel sub level sensor.

Fig 18: Locating Service Hole Cover Screws
Courtesy of SUBARU OF AMERICA, INC.

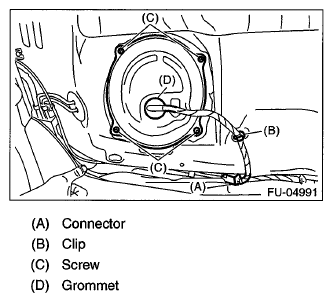

Install the service hole cover of the fuel pump, and install the connector and clip.

Fig 19: Locating Service Hole Cover Screws
Courtesy of SUBARU OF AMERICA, INC.
Set the floor mat (C), and install clips (A) and seat cushion hooks (B).

Fig 20: Identifying Seat Cushion Hooks, Floor Mat And Clips
Courtesy of SUBARU OF AMERICA, INC.
Install the rear seat cushion. Ref. to INSTALLATION , Rear Seat.

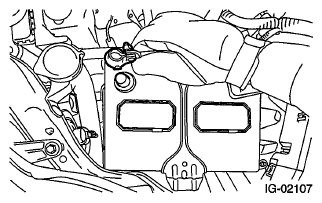

Connect the ground cable to battery.

Fig 21: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Inspect the wheel alignment and adjust if necessary.
