Engine Control Module (ECM): Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

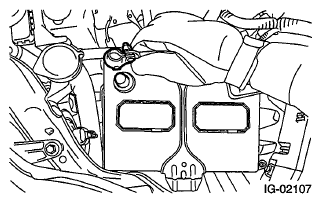

Fig 1: Identifying Ground Cable And Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the glove box lid assembly. Ref. to REMOVAL , Glove Box.
Remove the connectors from ECM.

Fig 2: Locating Glove Box Lid Assembly
Courtesy of SUBARU OF AMERICA, INC.
Remove the ECM from vehicle.

Fig 3: Locating ECM
Courtesy of SUBARU OF AMERICA, INC.
