Camshaft Position Sensor (Method With Oscilloscope)

WARNING: This page is about a different variant/trim than selected.
  1. Prepare an oscilloscope.
  2. Remove the glove box lid assembly. Ref. to REMOVAL , Glove Box.
  3. Connect the probe to ECM connector.
    Fig 1: Locating Glove Box Lid Assembly
    G06648245Courtesy of SUBARU OF AMERICA, INC.
    • Intake camshaft position sensor
      Fig 2: Connecting Probe To ECM Connector (Intake Camshaft Position Sensor)
      G06648845Courtesy of SUBARU OF AMERICA, INC.
    • Exhaust camshaft position sensor
      Fig 3: Connecting Probe To ECM Connector (Exhaust Camshaft Position Sensor)
      G06648846Courtesy of SUBARU OF AMERICA, INC.
      TERMINALS REFERENCE CHART

      Camshaft position sensor Terminal No. Probe
      Intake RH 24 +
      LH 16 +
      Exhaust RH 23 +
      LH 29 +
      RH and LH 30 -
  4. Start the engine and let it idle.
  5. Check that the pattern is the same as the waveform and voltage shown below.

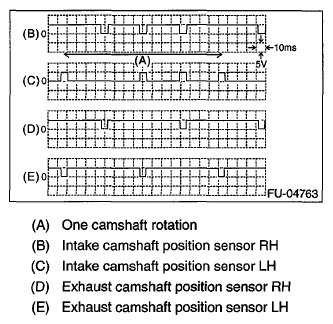

    Fig 4: Intake/Exhaust Camshaft Position Sensor Waveform Graph
    G06648847Courtesy of SUBARU OF AMERICA, INC.
  6. After inspection, install the related parts in the reverse order of removal.
