Section 10 (Engine Cooling System - Cooling (H4DOTC - 2.5L DOHC Turbo)): Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

Lift up the vehicle.
Remove the under cover. Ref. to REMOVAL , Front Under Cover.
Drain engine coolant. Ref. to DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant.
Disconnect the radiator outlet hose from thermostat cover.

Fig 1: Locating Radiator Outlet Hose
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover, and then remove the gasket and thermostat.

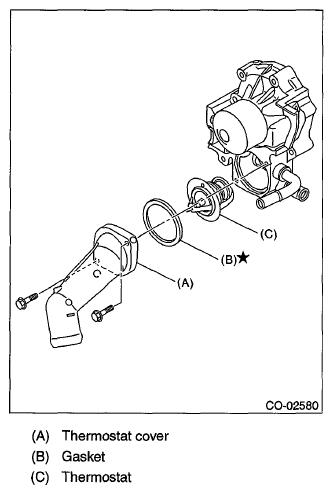

Fig 2: Identifying Thermostat Cover, Gasket And Thermostat
Courtesy of SUBARU OF AMERICA, INC.
