LH Side

  1. Disconnect the ground cable from the battery.
    Fig 1: Disconnecting Ground Cable From Battery
    G05019586Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the V-belts. Refer to REMOVAL , V-belt.
  3. Remove the crank pulley. Refer to REMOVAL , Crank Pulley.
  4. Remove the timing belt cover. Refer to REMOVAL , Timing Belt Cover.
  5. Remove the timing belt. Refer to REMOVAL , Timing Belt.
  6. Remove the cam sprocket. Refer to REMOVAL , Cam Sprocket.
  7. Remove the timing belt cover No. 2 (LH).
  8. Disconnect the connector from the oil switching solenoid valve.
  9. Remove the oil switching solenoid valve.
  10. Remove the variable valve lift diagnosis oil pressure switch. Refer to REMOVAL , Variable Valve Lift Diagnosis Oil Pressure Switch.
  11. Remove the oil switching solenoid valve holder from the cylinder head.

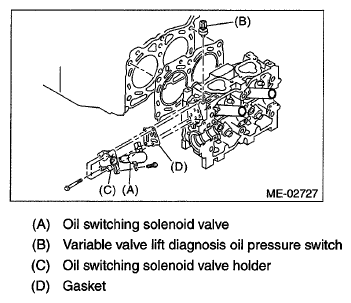

    Fig 2: Identifying Oil Switching Solenoid Valve Holder
    G06334466Courtesy of SUBARU OF AMERICA, INC.
