Front Chain Cover: Installation

WARNING: This page is about a different car, the 2006 Subaru Outback. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the used liquid gasket from mating surface, and degrease it.
  2. Apply liquid gasket to the mating surface of front chain cover.

    Liquid gasket

    THREE BOND 1280B (Part No. K0877YA018)

    Applying liquid gasket diameter

    2.5±0.5 mm (0.098±0.020 in)

    Fig 1: Applying Liquid Gasket Diameter
    G05018700
  3. Install the front chain cover. Temporarily tighten the bolts.
    CAUTION: Do not install the bolts in wrong place.
    Fig 2: Identifying Front Chain Cover Bolts
    G05018701
  4. Tighten the bolts in the numerical order as shown in the figure.

    Tightening torque:

    6.6 N.m (0.67 kgf-m, 4.8 ft-lb)

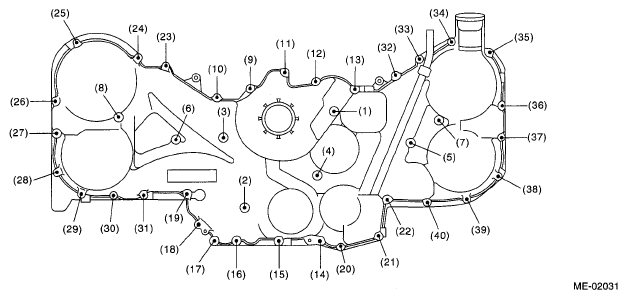

    Fig 3: Tightening Sequence Of Bolts
    G05018702
  5. Install the crank pulley. < Ref. to INSTALLATION , Crank Pulley. >
