Water Pump: Removal

WARNING: This page is about a different variant/trim than selected.

Remove the radiator. < Ref. to REMOVAL , Radiator. >
Remove the V-belts. < Ref. to REMOVAL , V-belt. >
Remove the timing belt. < Ref. to REMOVAL , Timing Belt. >
Remove the automatic belt tension adjuster.

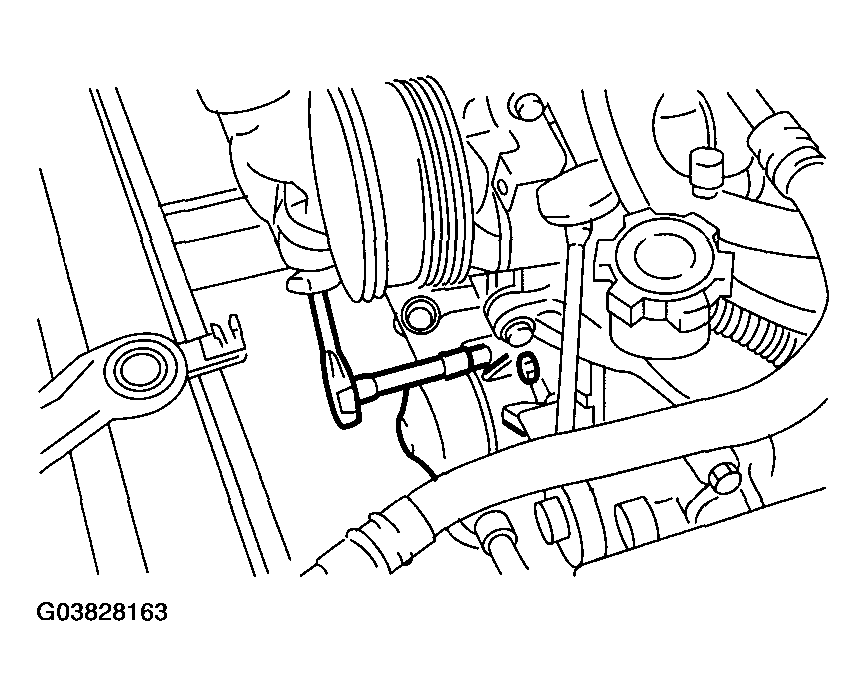

Fig 1: Removing Automatic Belt Tension Adjuster
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt idler No. 2.

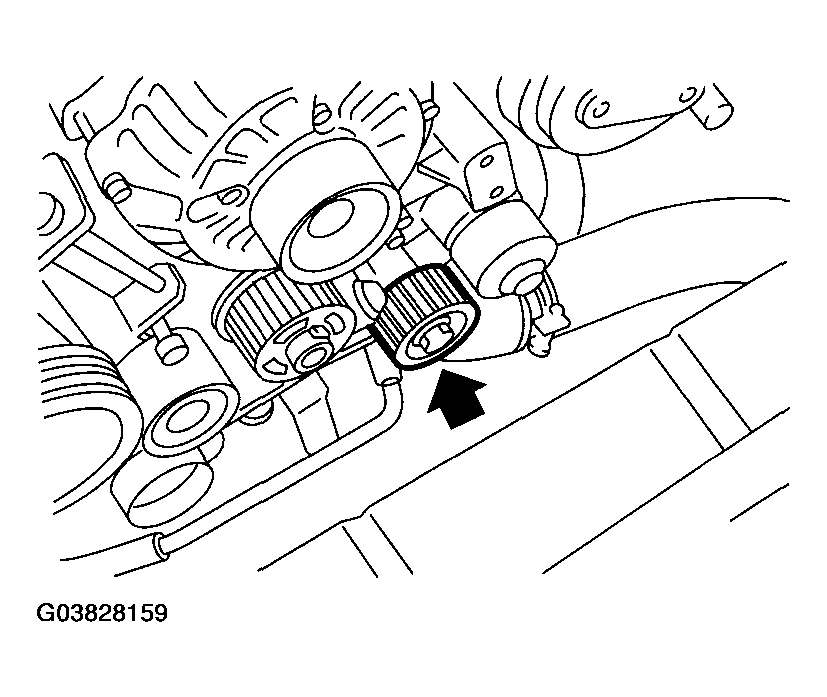

Fig 2: Removing Belt Idler No. 2
Courtesy of SUBARU OF AMERICA, INC.
Remove the cam sprocket (LH) using ST.
ST 18231AA010 CAM SPROCKET WRENCH

NOTE: CAM SPROCKET WRENCH (499207100) can also be used.

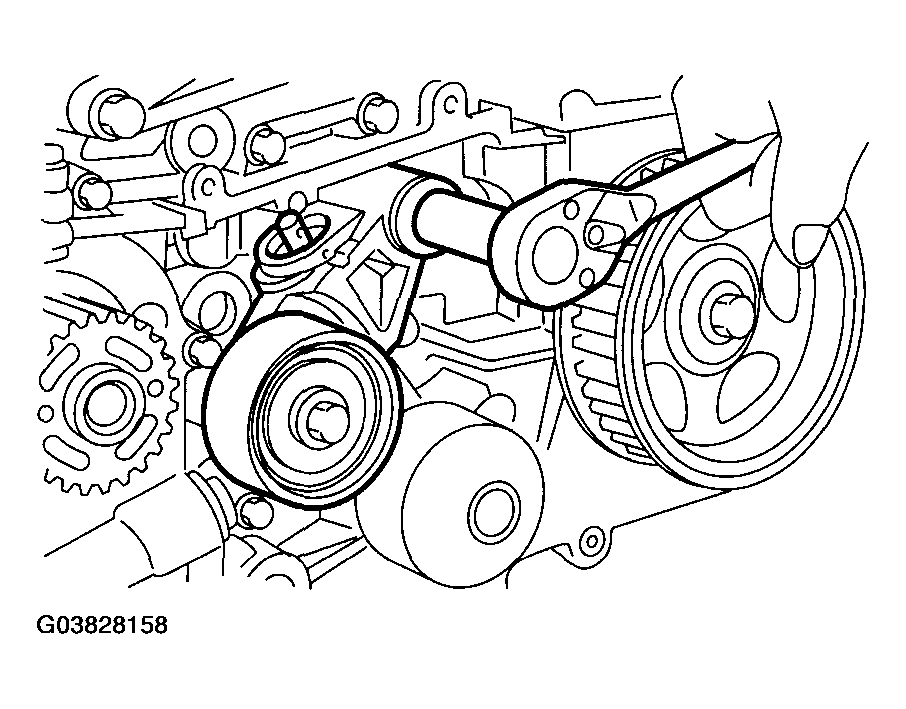

Fig 3: Removing Cam Sprocket (LH) Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the belt cover No. 2 (LH).

Fig 4: Removing Belt Cover No. 2 (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the tensioner bracket.

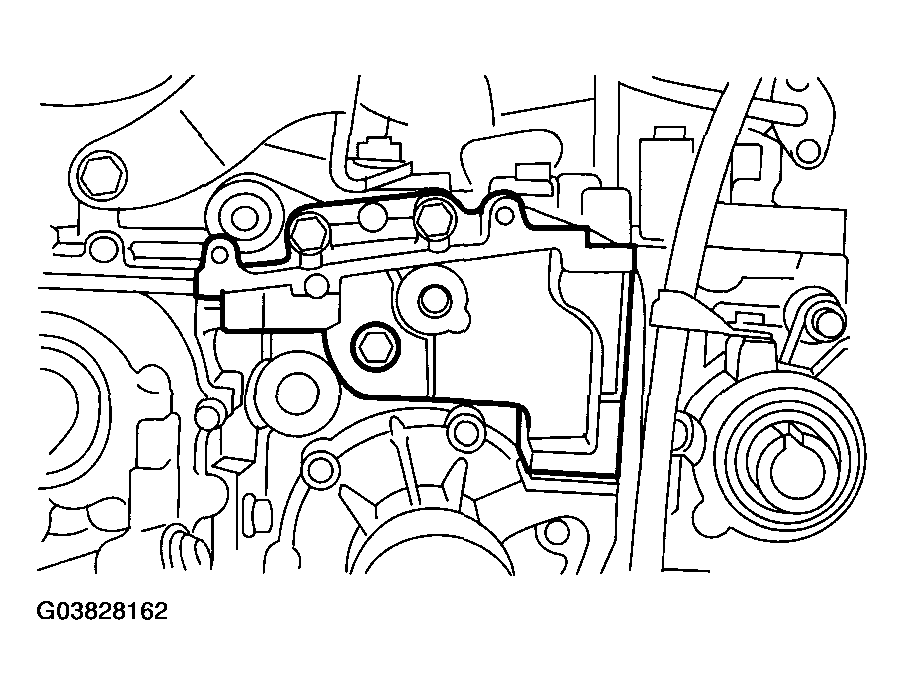

Fig 5: Removing Tensioner Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the hose from water pump.
Remove the water pump.

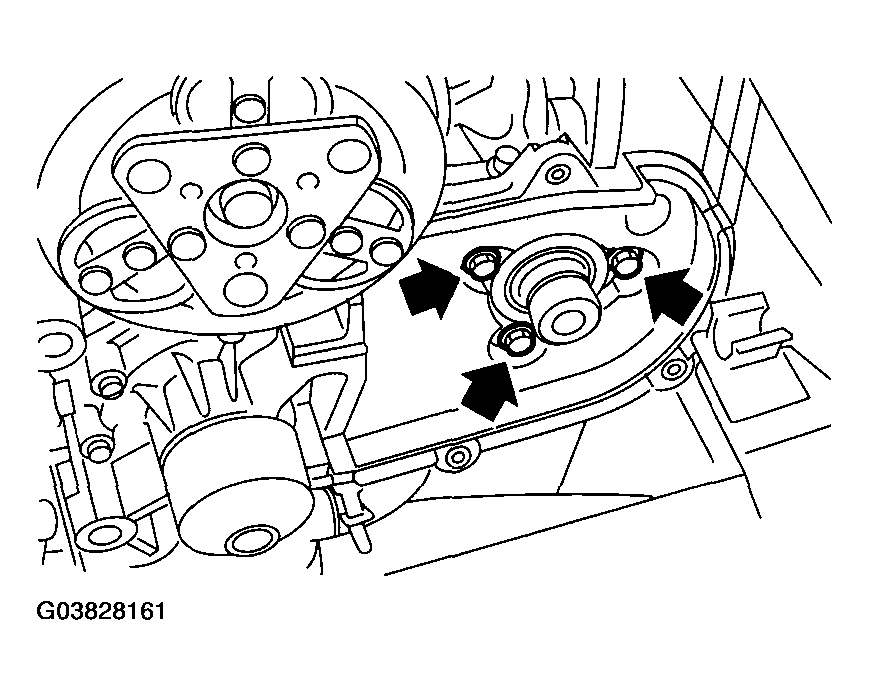

Fig 6: Removing Water Pump

Courtesy of SUBARU OF AMERICA, INC.
