Radiator Sub Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Disconnect the ground cable from battery.

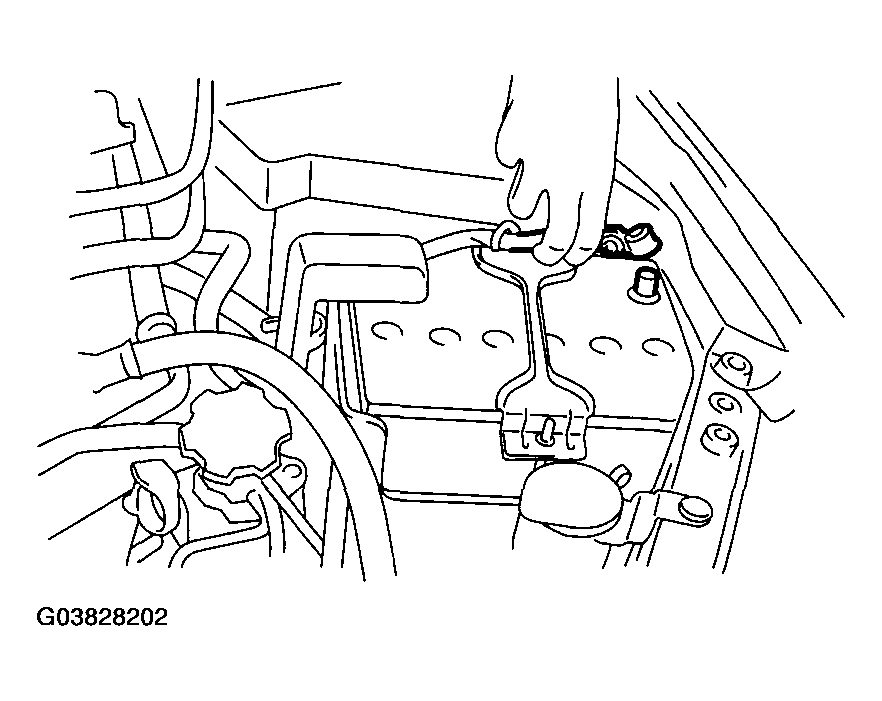

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Disconnect the connector (B) of sub fan motor.

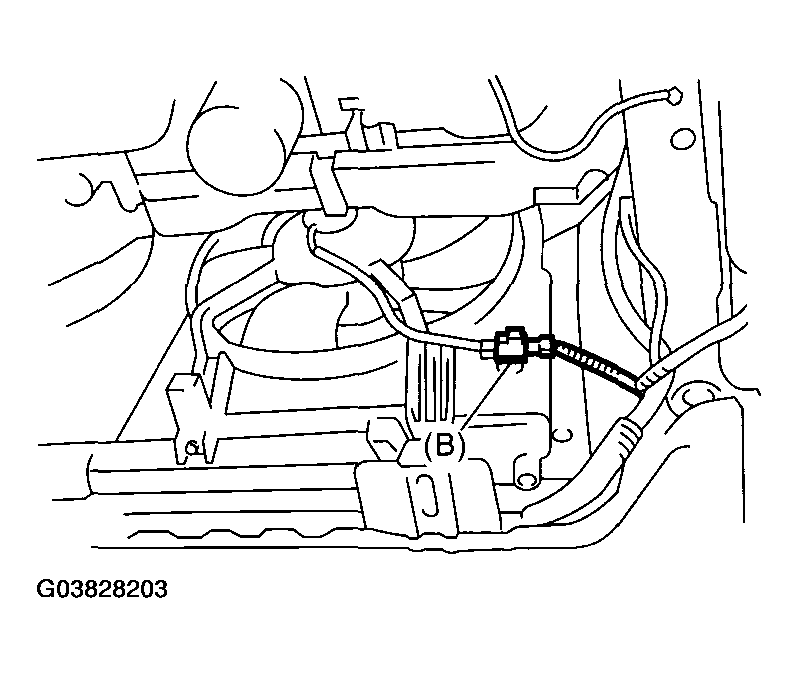

Fig 2: Disconnecting Connector Of Sub Fan Motor
Courtesy of SUBARU OF AMERICA, INC.
Remove the ATF hose from the clip of radiator sub fan motor assembly. (AT model)
Lower the vehicle.
Remove the air intake duct. < Ref. to REMOVAL , Air Intake Duct. >
Remove the bolts which hold the radiator sub fan shroud to radiator.

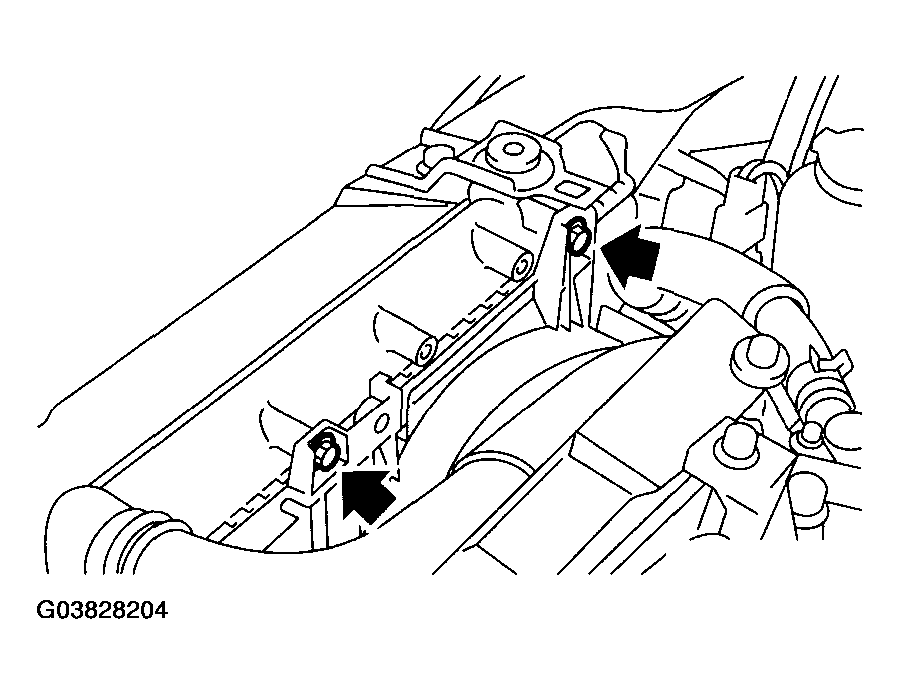

Fig 3: Removing Bolts From Radiator Sub Fan Shroud To Radiator
Courtesy of SUBARU OF AMERICA, INC.
Remove the radiator sub fan motor assembly from the lower side of vehicle.
