Radiator Main Fan and Fan Motor: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Set the vehicle on a lift.
  2. Disconnect the ground cable from battery.

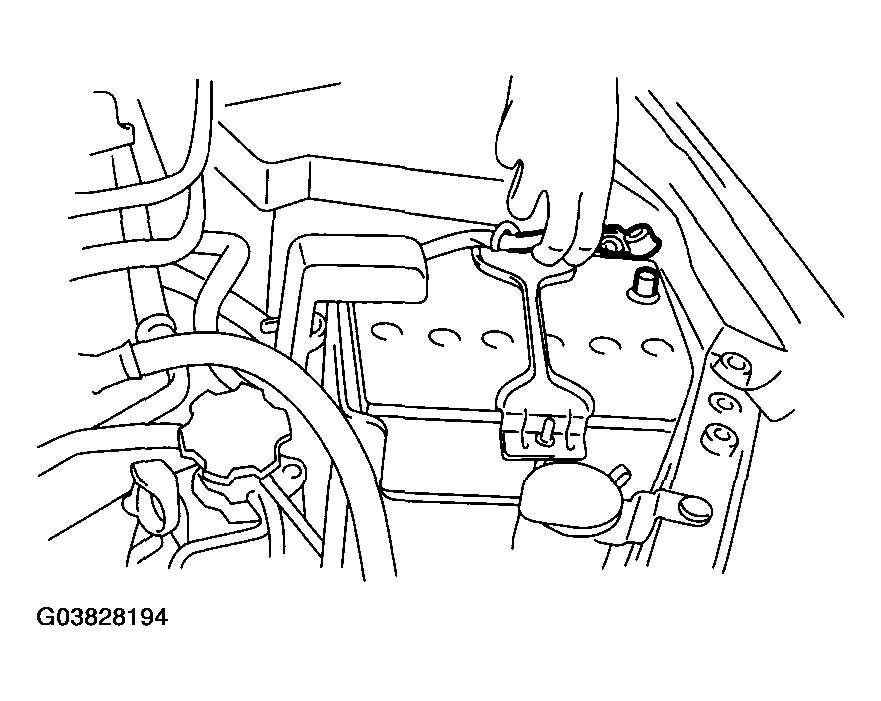

    Fig 1: Disconnecting Ground Cable From Battery
    G03828194Courtesy of SUBARU OF AMERICA, INC.
  3. Lift-up the vehicle.
  4. Remove the under cover.
  5. Disconnect the connector (A) of main fan motor.

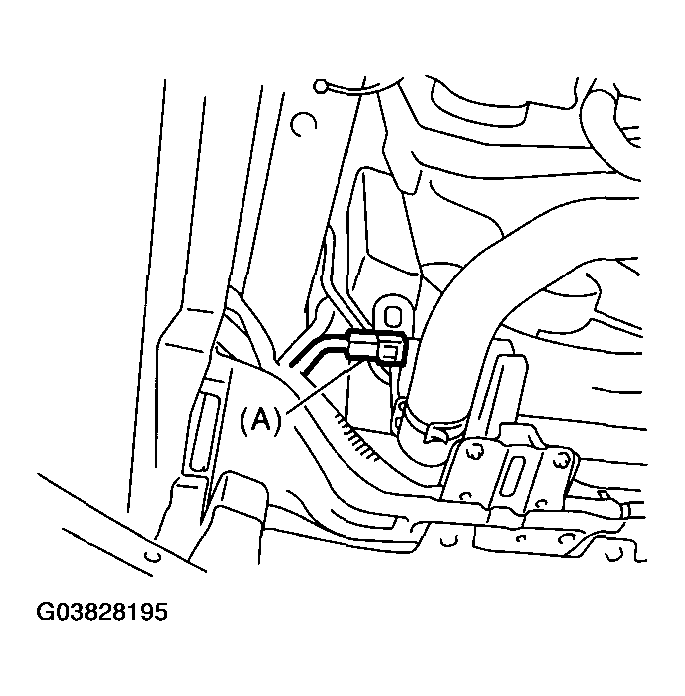

    Fig 2: Disconnecting Connector Of Main Fan Motor
    G03828195Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the ATF hose from the clip of radiator main fan motor assembly. (AT model)
  7. Lower the vehicle.
  8. Disconnect the over flow hose.
  9. Remove the reservoir tank. < Ref. to , REMOVAL , Reservoir Tank. >
  10. Remove the bolts which hold the radiator main fan shroud to radiator.

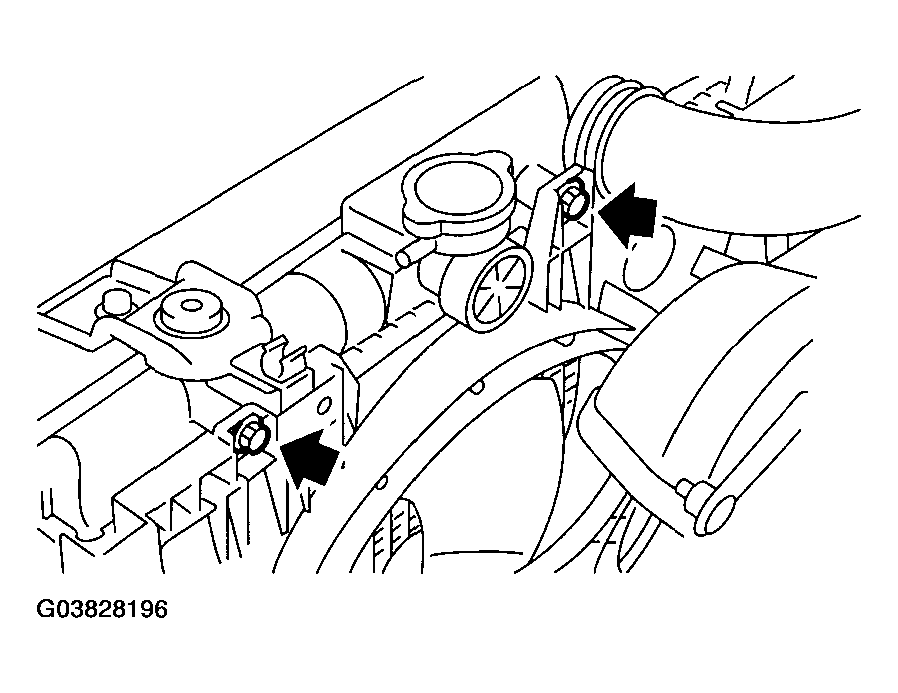

    Fig 3: Removing Bolts To Holding Radiator Main Fan Shroud To Radiator
    G03828196Courtesy of SUBARU OF AMERICA, INC.
  11. Remove the radiator main fan motor assembly.
