Engine Oil Pressure: Inspection

1. Disconnect the ground cable from battery.

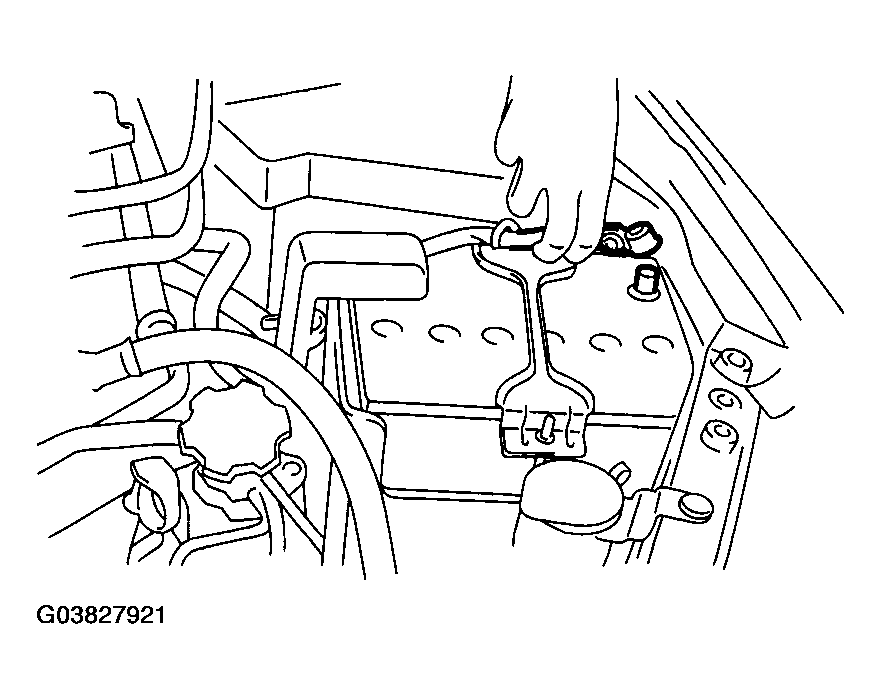

   Fig 1: Disconnecting Ground Cable From Battery

   Courtesy of SUBARU OF AMERICA, INC.
2. Remove the generator. < Ref. to REMOVAL , Generator. >
3. Disconnect the connector from oil pressure switch.
4. Remove the oil pressure switch from cylinder block. < Ref. to REMOVAL , Oil Pressure Switch. >
5. Connect the oil pressure gauge hose to cylinder block.
6. Connect the battery ground cable to battery.

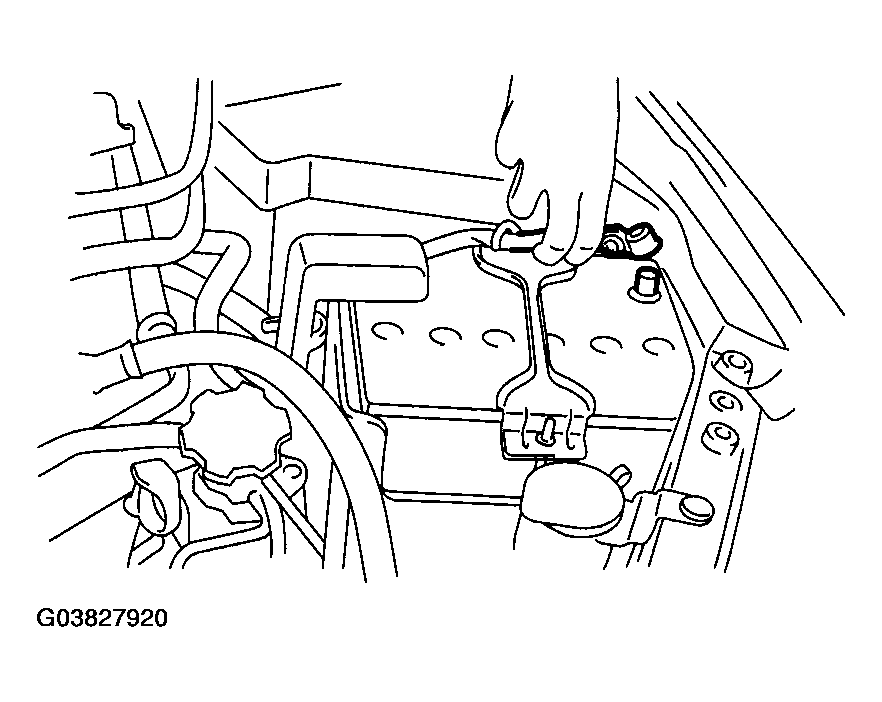

   Fig 2: Connecting Battery Ground Cable To Battery

   Courtesy of SUBARU OF AMERICA, INC.
7. Start the engine, and measure oil pressure.

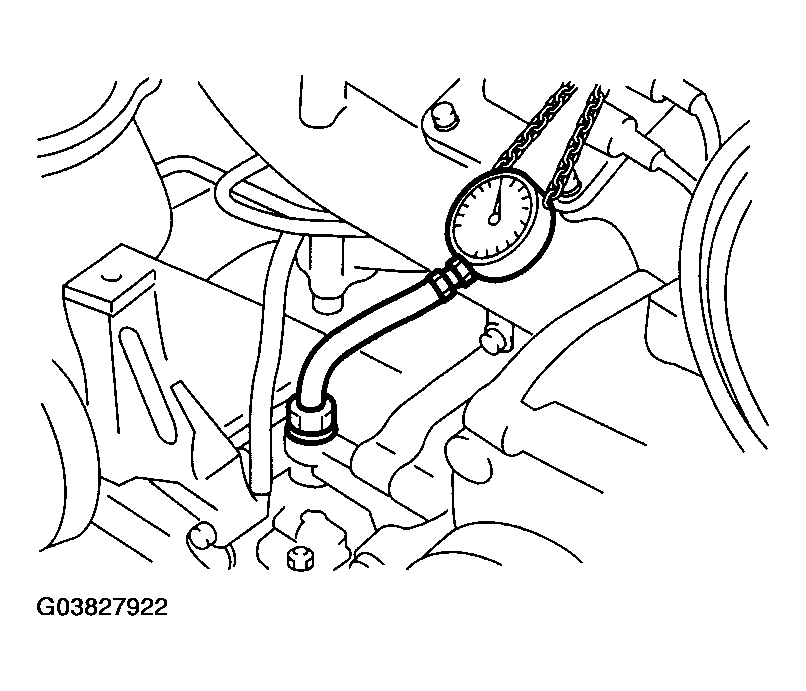

   Fig 3: Measuring Oil Pressure

   Courtesy of SUBARU OF AMERICA, INC.

   Oil pressure:

   Standard

   88 kPa (0.9 kg/cm ²  , 13 psi) or more at 800 rpm

   294 kPa (3.0 kg/cm ²  , 43 psi) or more at 5,000 rpm

   CAUTION:

   • If the oil pressure is out of specification, check oil pump, oil filter and lubrication line. < Ref. to INSPECTION , General Diagnostic Table. >
   • If the oil pressure warning light is turned to ON but oil pressure is within specification, replace the oil pressure switch. < Ref. to INSPECTION , General Diagnostic Table. >
   NOTE: The specified value is based on an engine oil temperature of 80°C (176°F).
8. After measuring the oil pressure, install the oil pressure switch. < Ref. to INSTALLATION , Oil Pressure Switch. >

Tightening torque:

25 N.m (2.5 kgf-m, 18.1 ft-lb)
