Oil Pressure Switch: Removal

  1. Remove the generator from bracket.

    < Ref. to REMOVAL , Generator. >

  2. Disconnect the terminal from oil pressure switch.

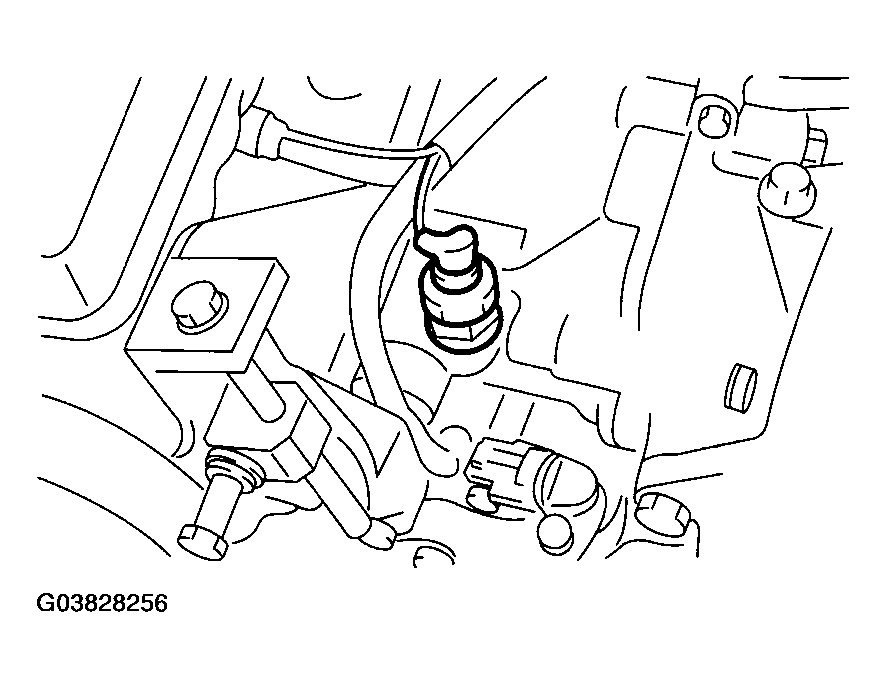

    Fig 1: Disconnecting Terminal From Oil Pressure Switch
    G03828256Courtesy of SUBARU OF AMERICA, INC.
  3. Remove the oil pressure switch.

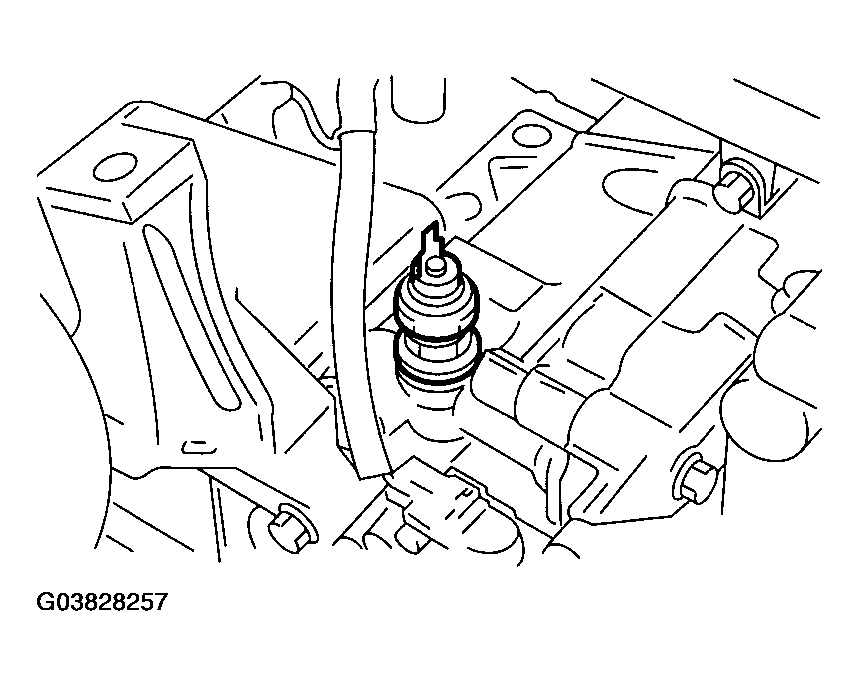

    Fig 2: Removing Oil Pressure Switch
    G03828257Courtesy of SUBARU OF AMERICA, INC.
