Release Bearing and Lever: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
Before or during installation, lubricate the following points with a light coat of grease.
- Contact surface of lever and pivot
- Contact surface of lever and bearing
- Transmission main shaft spline (Use grease containing molybdenum disulphide.)

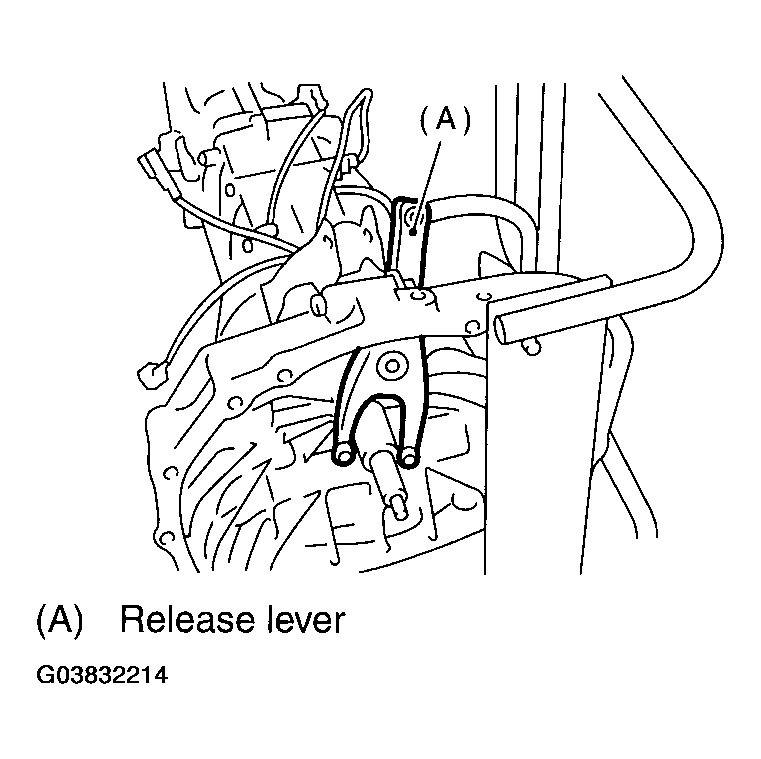

- While pushing the release lever to pivot and twisting it to both sides, fit the lever spring onto the constricted portion of pivot.NOTE:
- Apply grease (SUNLIGHT 2: Part No. 003602010) to the contact point of release lever and operating cylinder.
- Observing from main case hole, check that the lever spring is installed securely.
- Place the release bearing and fasten it with two clips.

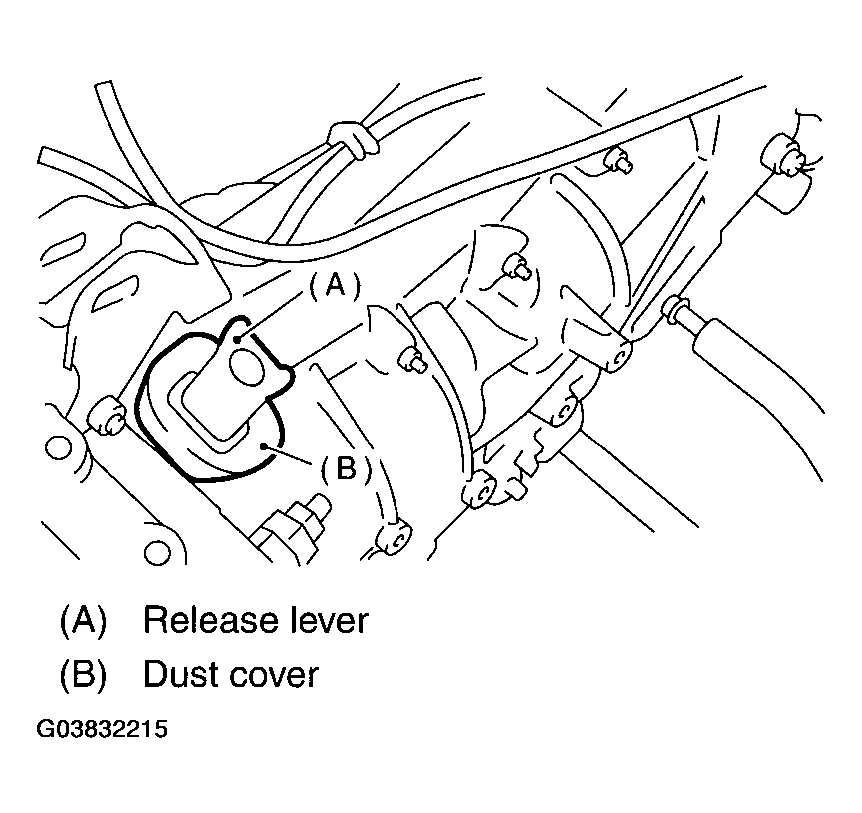

- Install the dust cover.
- Check the bearing for smooth movement of with operating release lever.
- Install the transmission assembly.
< Ref. to INSTALLATION , Manual Transmission Assembly. >
