Clutch Switch (With Cruise Control)

WARNING: This page is about a different variant/trim than selected.

Install the clutch switch and clutch pedal stopper so that the gap between them is 0 mm (0 in).
Tightening torque:

8 N.m (0.8 kgf-m, 5.8 ft-lb)

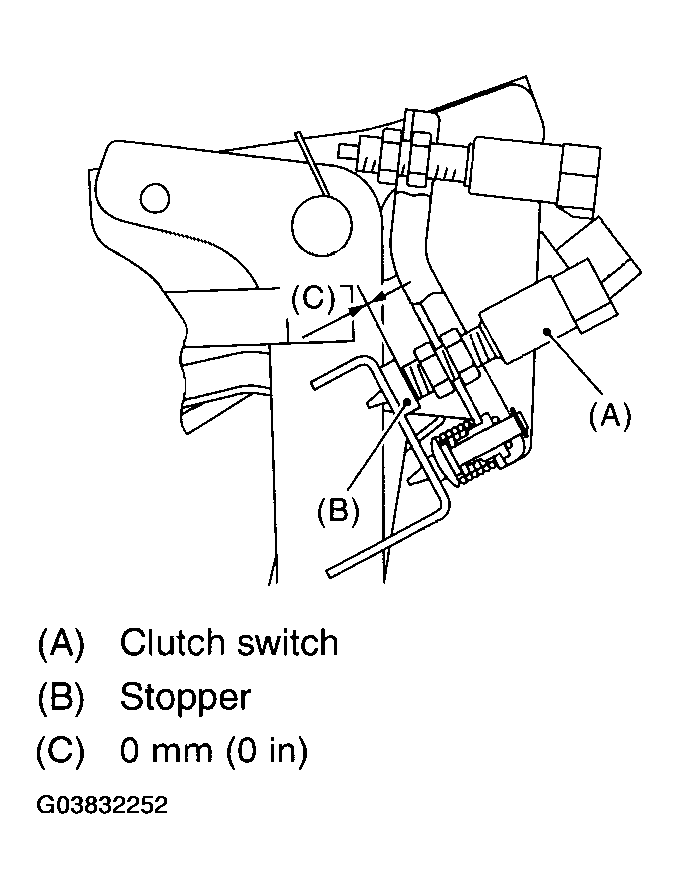

Fig 1: Installing Clutch Switch And Clutch Pedal Stopper
Courtesy of SUBARU OF AMERICA, INC.
Measure the stroke of the clutch pedal.
Specified clutch pedal full stroke: A

Non-turbo model

130 - 135 mm (5.12 - 5.31 in)

Turbo model

135 - 140 mm (5.31 - 5.51 in)

Fig 2: Measuring Stroke Of Clutch Pedal
Courtesy of SUBARU OF AMERICA, INC.
If the clutch pedal stroke is out of specification, adjust the stroke. < Ref. to , ADJUSTMENT , Clutch Pedal. >
Connect the clutch switch connector.
