Clutch Pedal: Adjustment

1. Measure the full stroke amount of clutch pedal.
   NOTE:

   • Measure the length between the seat cushion front end and center portion of clutch pedal.
   • Slide the seat at seventh notch from the first notch.

   Specified clutch pedal full stroke A:

   Non-turbo model:

   130 - 135 mm (5.12 - 5.31 in)

   Turbo model:

   135 - 140 mm (5.31 - 5.51 in)

   Fig 1: Measuring Full Stroke Amount Of Clutch Pedal

   Courtesy of SUBARU OF AMERICA, INC.
2. If the clutch pedal stroke is out of specification, loosen the clutch switch lock nut to adjust.

   Tightening torque (Clutch switch lock nut):

   8 N.m (0.8 kgf-m, 5.8 ft-lb)

3. Loosen the push rod lock nut.
   Fig 2: Loosening Push Rod Lock Nut

   Courtesy of SUBARU OF AMERICA, INC.
4. Turn the push rod to adjust.
   1. Ensure that the clutch pedal contacts clutch switch, when releasing the clutch pedal.
   2. Ensure that the clutch pedal contacts clutch pedal bracket stopper, when fully depressing the clutch pedal.
   Fig 3: Adjusting Clutch Pedal

   Courtesy of SUBARU OF AMERICA, INC.
5. Turn the push rod counterclockwise to shorten until clearance is made at clutch switch.

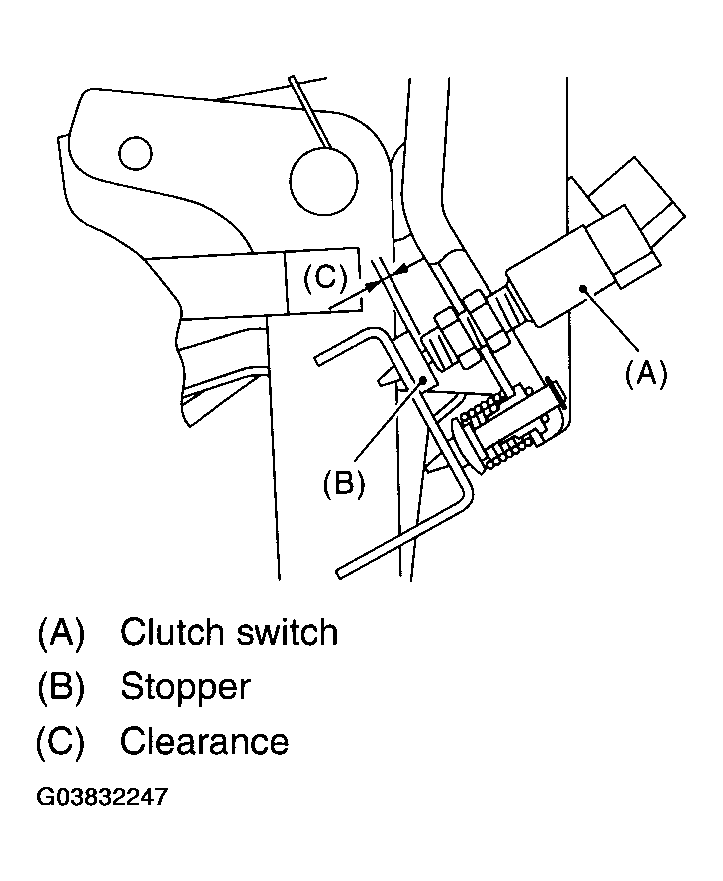

   Fig 4: Pushing Rod Counterclockwise Shorten Clearance Made Clutch Switch

   Courtesy of SUBARU OF AMERICA, INC.
6. Turn the push rod clockwise to lengthen until clutch pedal contacts to clutch switch.
7. Turn the push rod further 270° counterclockwise to shorten (arrow direction as shown in Fig 5 ).

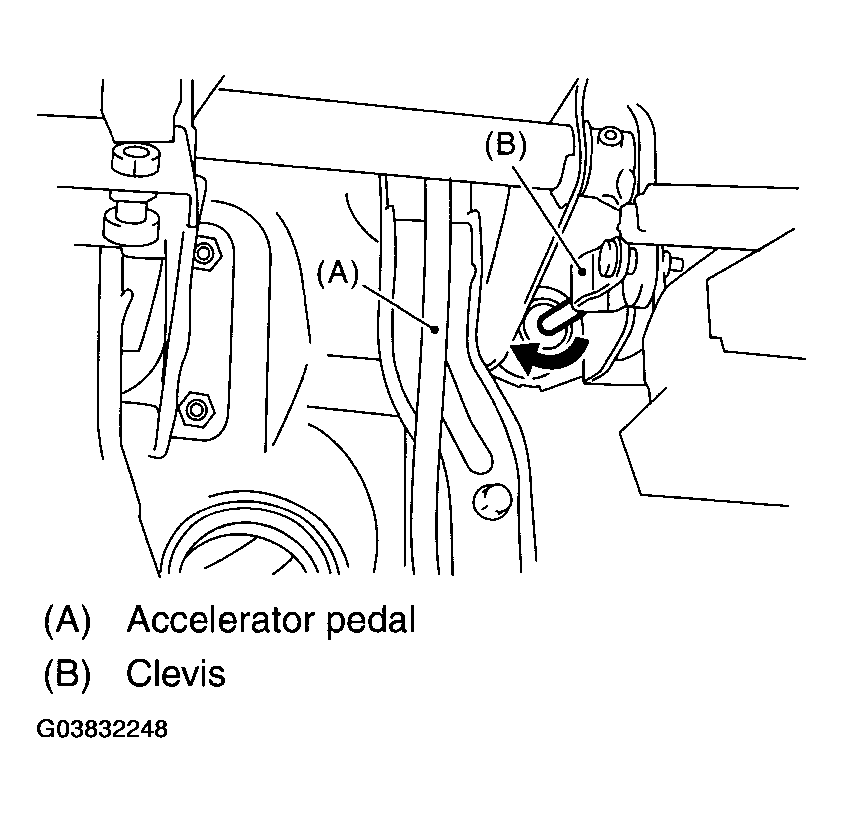

   Fig 5: Turning Push Rod Clockwise To Lengthen Until Clutch Pedal

   Courtesy of SUBARU OF AMERICA, INC.
8. Move the clevis pin in lateral direction to ensure it moves smoothly.
9. Tighten the push rod lock nut.

   Tightening torque:

   10 N.m (1.0 kgf-m, 7.2 ft-lb)

10. Depress and release the clutch pedal two or three times to ensure that clutch pedal and release fork operate smoothly. If the clutch pedal and release fork do not operate smoothly, bleed air from the clutch hydraulic system. < Ref. to , CLUTCH FLUID AIR BLEEDING . >
11. Measure the clutch pedal full stroke length again to ensure that it is within specifications. If it is not, repeat adjustment procedures again from the beginning.

    Specified clutch pedal full stroke:

    Non-turbo model:

    130 - 135 mm (5.12 - 5.31 in)

    Turbo model:

    135 - 140 mm (5.31 - 5.51 in)

12. Move the clevis pin to the left and then to the right. It should move without resistance while it is rattling. If resistance is felt, repeat adjustment procedures again from the beginning.
13. Push the release lever until operating cylinder push rod retracts. Ensure that the clutch fluid level in reservoir tank increases. If the clutch fluid level increases, hydraulic clutch is properly adjusted; if the fluid level does not increase or push rod does not retract, replace the master cylinder with a new one. < Ref. to , MASTER CYLINDER . >

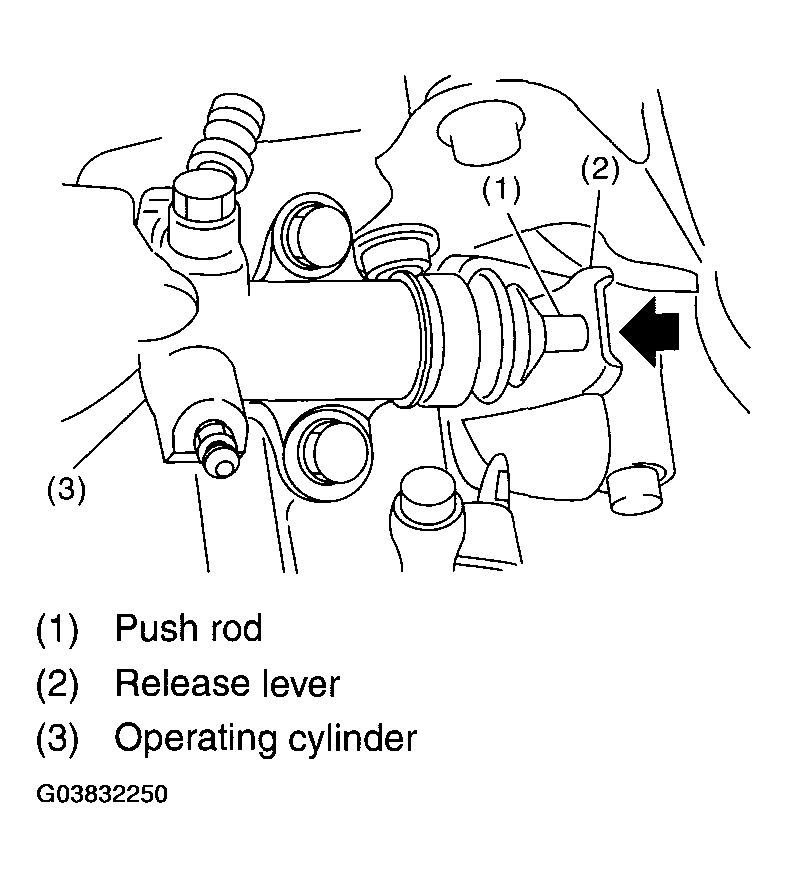

    Fig 6: Pushing Release Lever Until Operating Cylinder Push Rod Retracts

    Courtesy of SUBARU OF AMERICA, INC.
14. Push the release lever until the operating cylinder push rod retracts. Check that the clutch fluid level in reservoir tank increases.

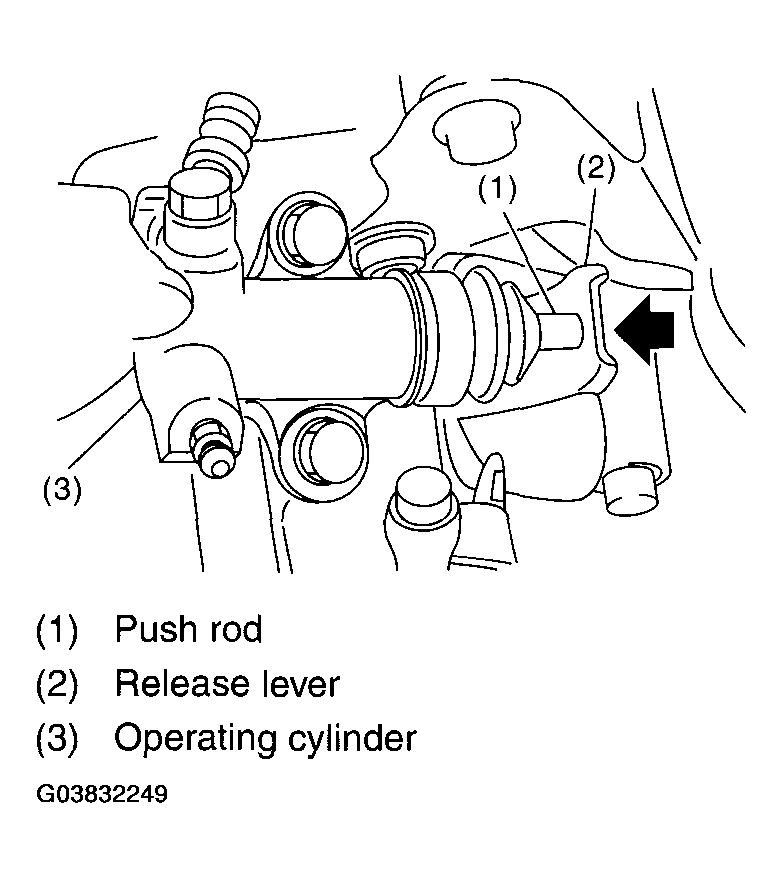

    Fig 7: Pushing Release Lever Operating Cylinder

    Courtesy of SUBARU OF AMERICA, INC.
15. If the clutch fluid level increases, hydraulic clutch play is correct.
16. If the clutch fluid level does not increase or push rod does not retract, clutch pedal must be readjusted.
17. Check the fluid level on the outside of the reservoir tank. If the level is below "MIN", add clutch fluid to bring it up to "MAX".

Recommended clutch fluid:

FMVSS No. 116, fresh DOT 3 or DOT 4 brake fluid

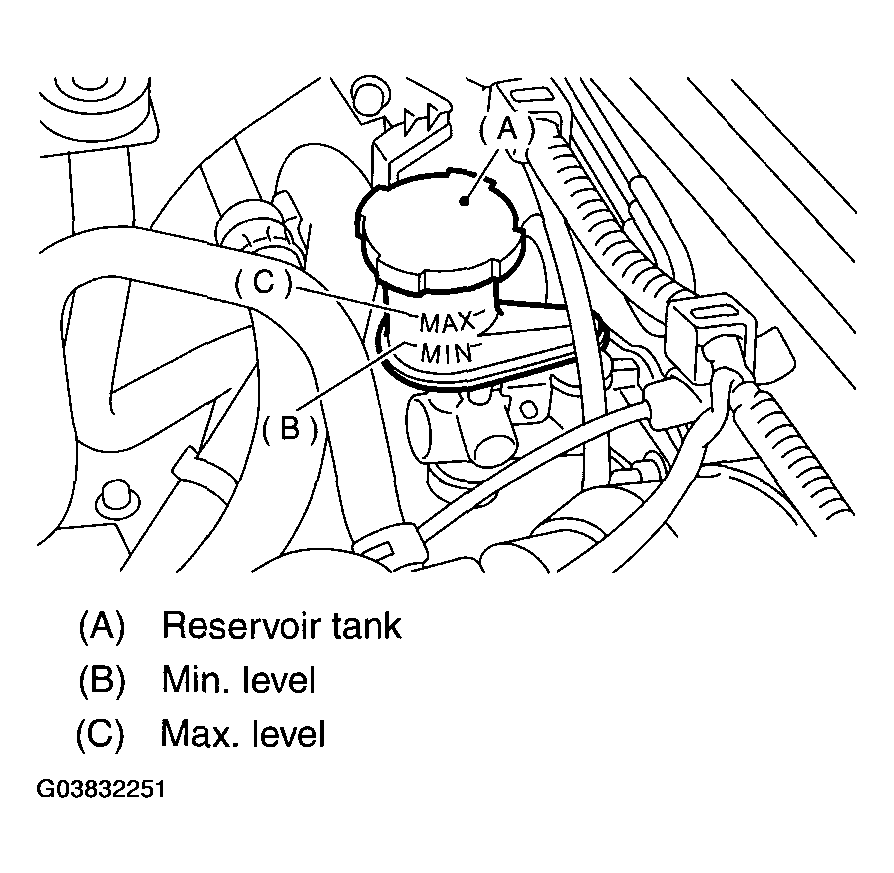

Fig 8: Checking Clutch Fluid Level

Courtesy of SUBARU OF AMERICA, INC.
