Clutch Pipe and Hose: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the air intake chamber. (Non-turbo model) < Ref. to REMOVAL , Air Intake Chamber. >
  2. Remove the intercooler. (Turbo model) < Ref. to REMOVAL , Intercooler. >
  3. Drain the clutch fluid. < Ref. to , CLUTCH FLUID . >
  4. Disconnect the clutch pipe from the clutch hose and master cylinder.
  5. Pull out the clamp, then remove the clutch hose from bracket.

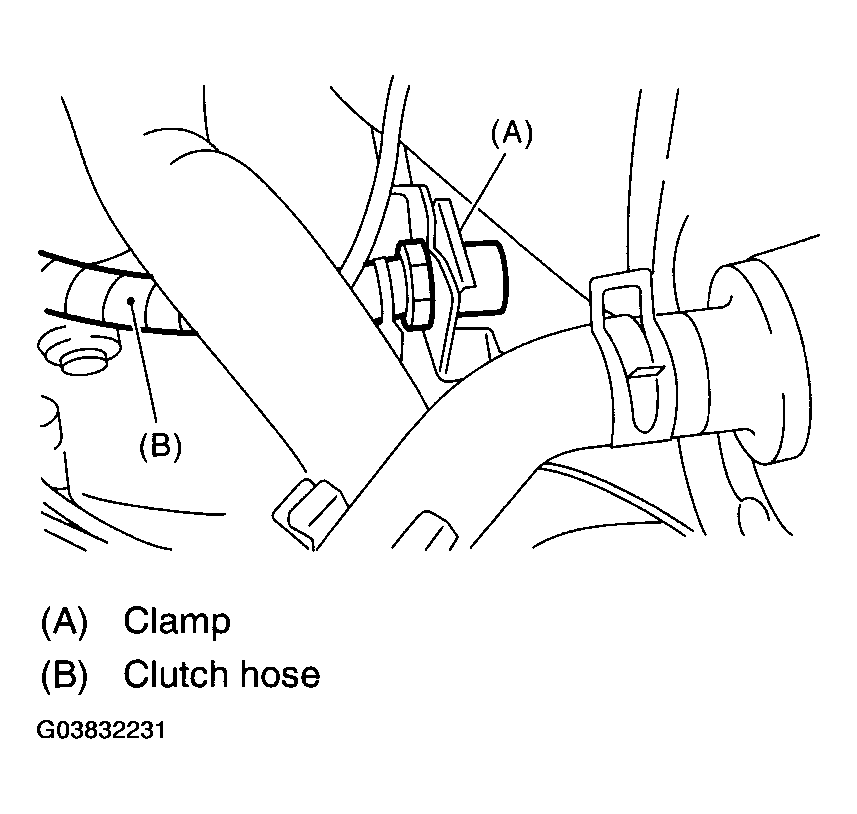

    Fig 1: Removing Clutch Hose From Bracket
    G03832231Courtesy of SUBARU OF AMERICA, INC.
  6. Disconnect the hose from operating cylinder.
  7. Remove the bracket.
