Clutch Disc and Cover: Removal

WARNING: This page is about a different variant/trim than selected.

NOTE: The illustration shown in Fig 1 is for Turbo model. However, perform the same procedure for Non-turbo model.

Remove the transmission assembly from vehicle. < Ref. to REMOVAL , Manual Transmission Assembly. >
Insert the ST on flywheel.
ST 499747100 CLUTCH DISC GUIDE

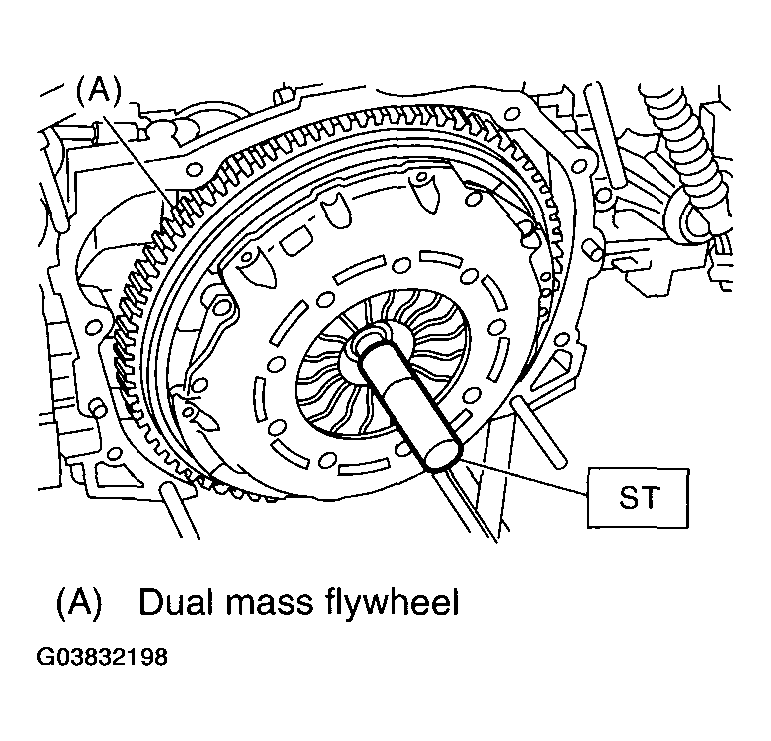

Fig 1: Inserting ST On Flywheel Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Remove the clutch cover and clutch disc.

NOTE:

Take care not to allow oil on the clutch disc surface.
Do not disassemble the clutch cover or clutch disc.
Be sure to mark alignment marks on the flywheel and clutch cover before removing clutch cover.

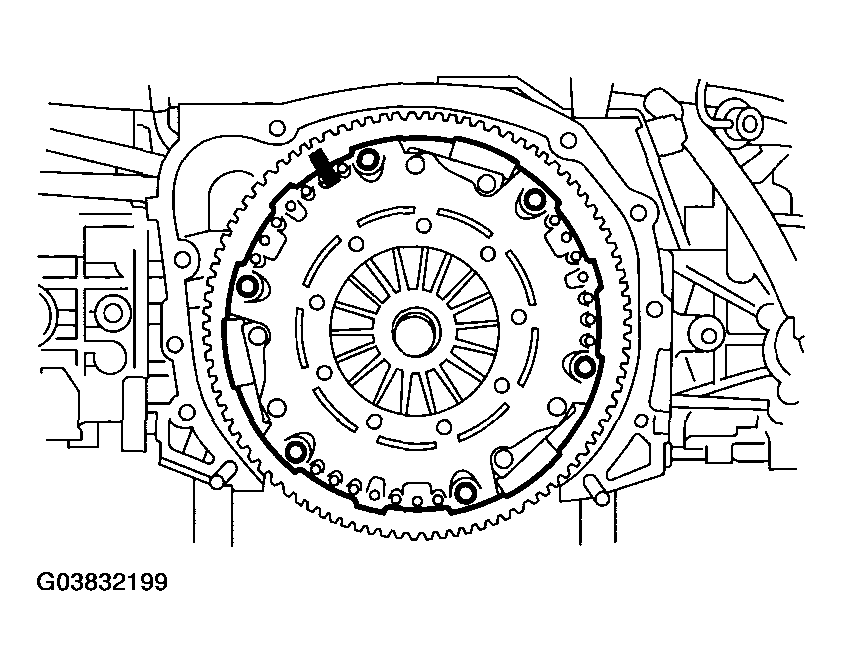

Fig 2: Removing Clutch Cover And Clutch Disc

Courtesy of SUBARU OF AMERICA, INC.
