Clutch Disc and Cover: Installation

WARNING: This page is about a different variant/trim than selected.

NOTE: The illustration shown in Fig 1 is for Turbo model. However, perform the same procedure for Non-turbo model.

Insert the ST into clutch disc and install on the flywheel by inserting the ST end into pilot bearing.
NOTE: When installing the clutch disc, be careful of its direction.

ST 499747100 CLUTCH DISC GUIDE

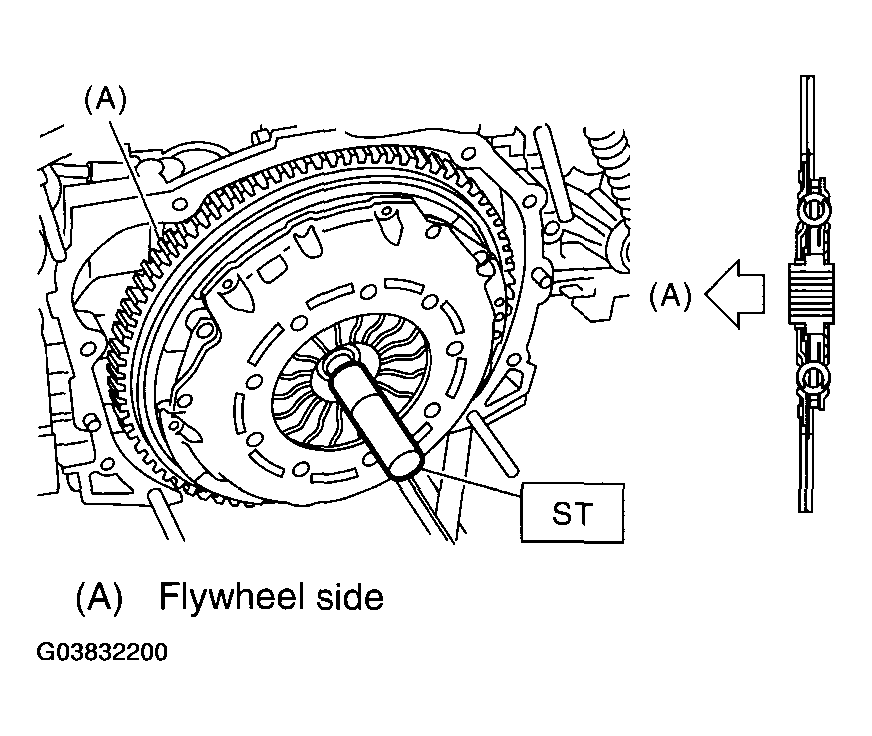

Fig 1: Inserting ST Into Clutch Disc
Courtesy of SUBARU OF AMERICA, INC.
Place the clutch cover on flywheel and tighten the bolts to specified torque.
NOTE:
- When reinstalling, align the alignment marks.
- When installing a new clutch cover and flywheel, position the clutch cover in order to make the gap between "0" marks of flywheel and clutch cover 120° or more.
- Note the front and rear of the clutch disc when installing.
- Tighten the clutch cover installing bolts gradually. Each bolt should be tightened to the specified torque in a crisscross order.
Tightening torque:

16 N.m (1.6 kgf-m, 11.8 ft-lb)

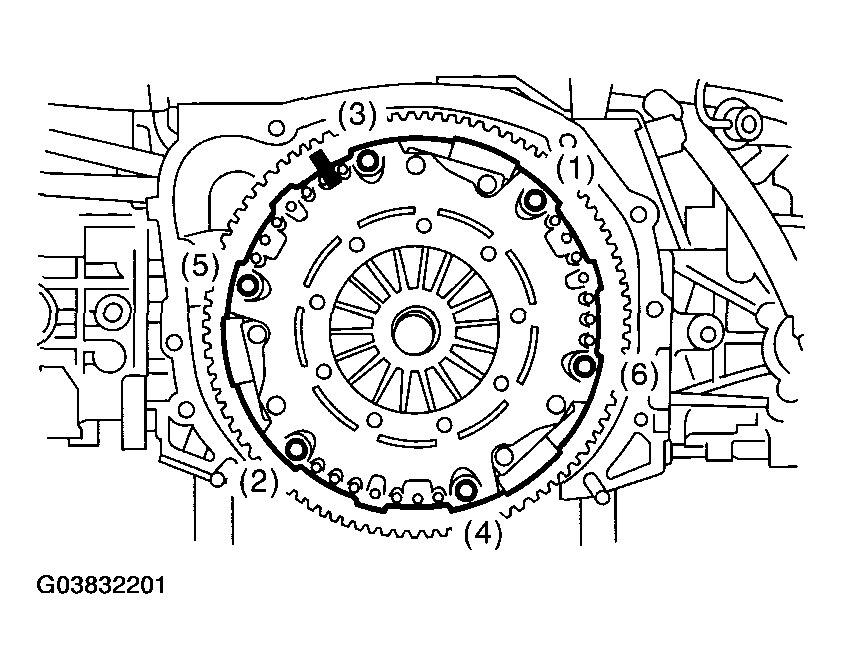

Fig 2: Tightening Clutch Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the ST.
ST 499747100 CLUTCH DISC GUIDE
Install the transmission assembly. < Ref. to INSTALLATION , Manual Transmission Assembly. >
