Pitching Stopper
WARNING: This page is about a different variant/trim than selected.

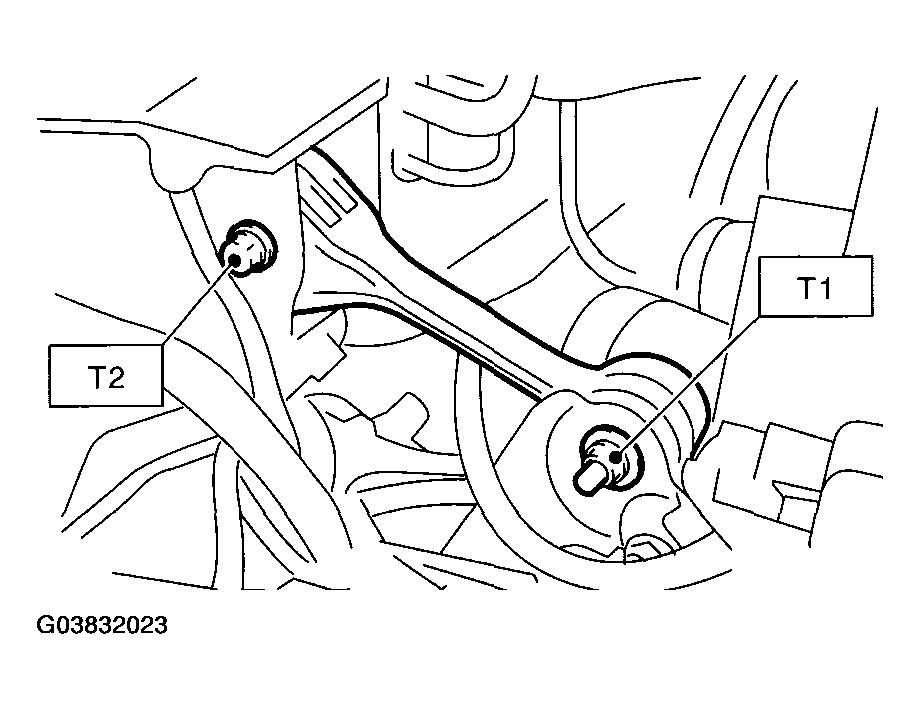

- Install the pitching stopper.
Tightening torque:
T1: 50 N.m (5.1 kgf-m, 37 ft-lb)
T2: 58 N.m (5.9 kgf-m, 43 ft-lb)
- Install the air intake chamber and cleaner case. (Non-turbo model) < Ref. to INSTALLATION , Air Cleaner Case.> < Ref. to INSTALLATION , Air Intake Chamber. >
- Install the intercooler. (Turbo model)
< Ref. to INSTALLATION , Intercooler. >
- Connect the battery ground cable to battery.
