Transfer Driven Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the bearing outer races to the extension case and transfer case.

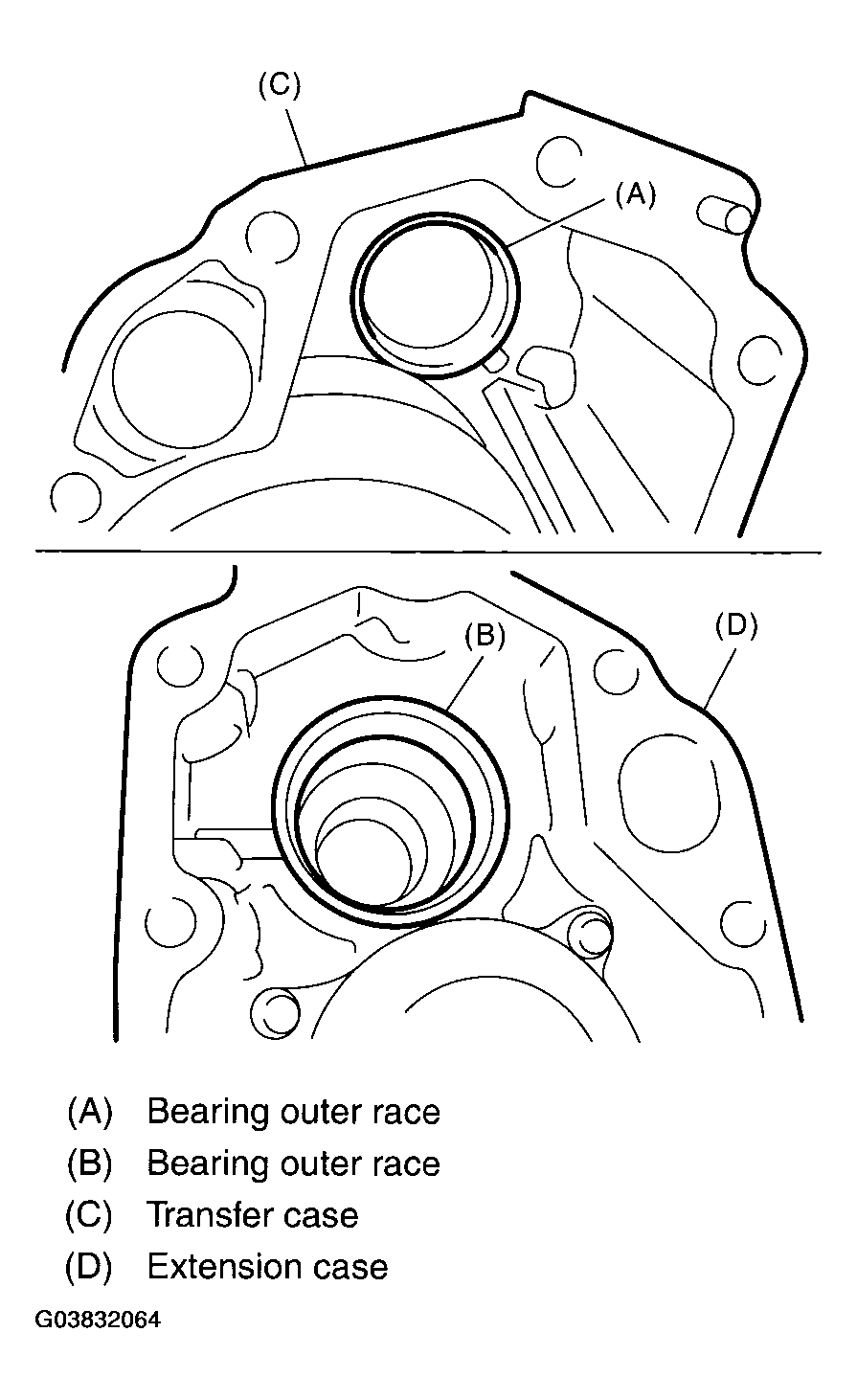

    Fig 1: Installing Bearing Outer Races To Extension Case And Transfer Case
    G03832064Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer driven gear.

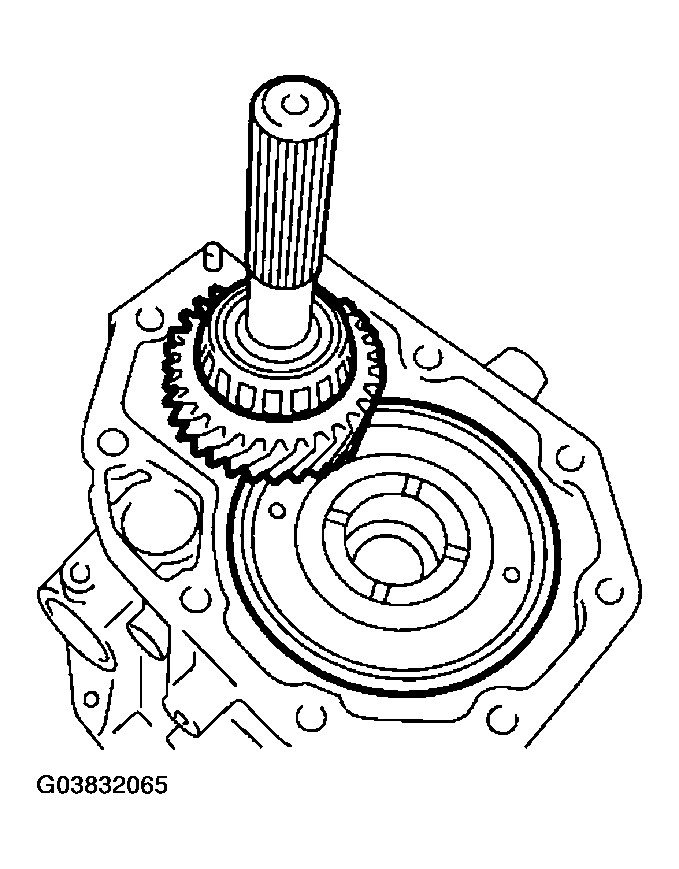

    Fig 2: Installing Transfer Driven Gear
    G03832065Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer case and extension case assembly. < Ref. to , INSTALLATION , Transfer Case and Extension Case Assembly. >
  4. Install the back-up light switch and neutral position switch. < Ref. to , INSTALLATION , Switches and Harness. >
  5. Install the manual transmission assembly into vehicle. < Ref. to , INSTALLATION , Manual Transmission Assembly. >
