Transfer Drive Gear: Installation

WARNING: This page is about a different variant/trim than selected.
  1. Install the transfer drive gear.

    Tightening torque:

    26 N.m (2.7kgf-m, 20 ft-lb)

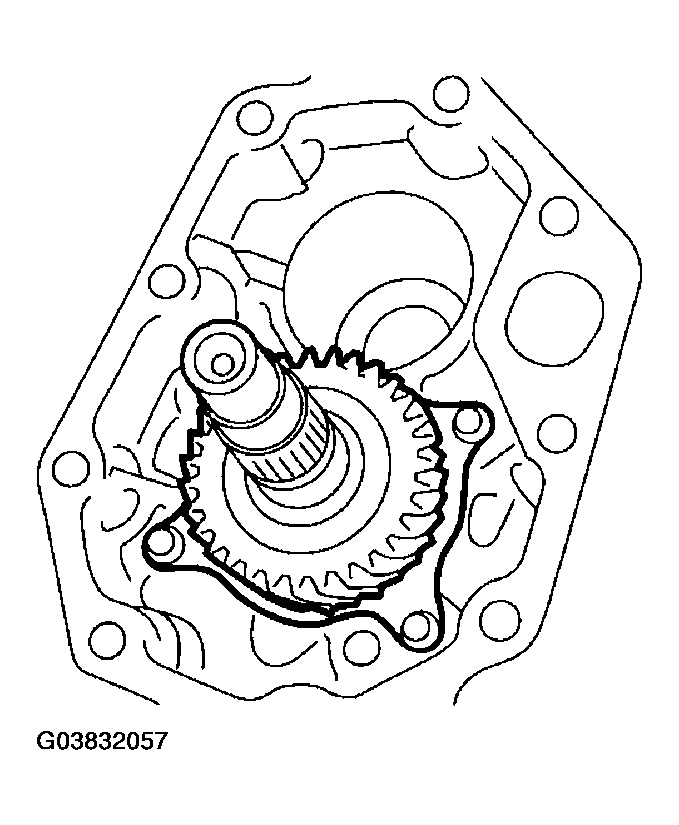

    Fig 1: Installing Transfer Drive Gear
    G03832057Courtesy of SUBARU OF AMERICA, INC.
  2. Install the transfer driven gear.
  3. Install the extension case assembly.
  4. Install the transfer case and extension case assembly. < Ref. to , INSTALLATION , Transfer Case and Extension Case Assembly. >
  5. Install the back-up light switch and neutral position switch. < Ref. to , INSTALLATION , Switches and Harness. >
  6. Install the manual transmission assembly into vehicle. < Ref. to , INSTALLATION , Manual Transmission Assembly. >
