Extension Case
WARNING: This page is about a different variant/trim than selected.
- Remove the transfer drive gear assembly. < Ref. to
, REMOVAL , Transfer Drive Gear. >

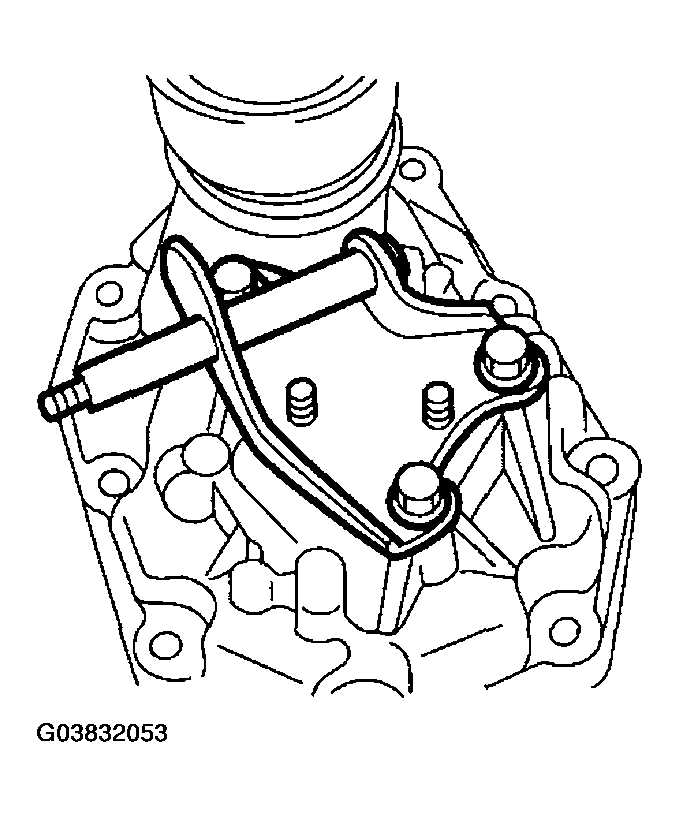

- Remove the shift bracket.
Courtesy of SUBARU OF AMERICA, INC.
- Remove the oil seal from extension case. < Ref. to
, OIL SEAL . >
