Transfer Case

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil guide to transfer case.

    Tightening torque:

    6.4 N.m (0.65 kgf-m, 4.7 ft-lb)

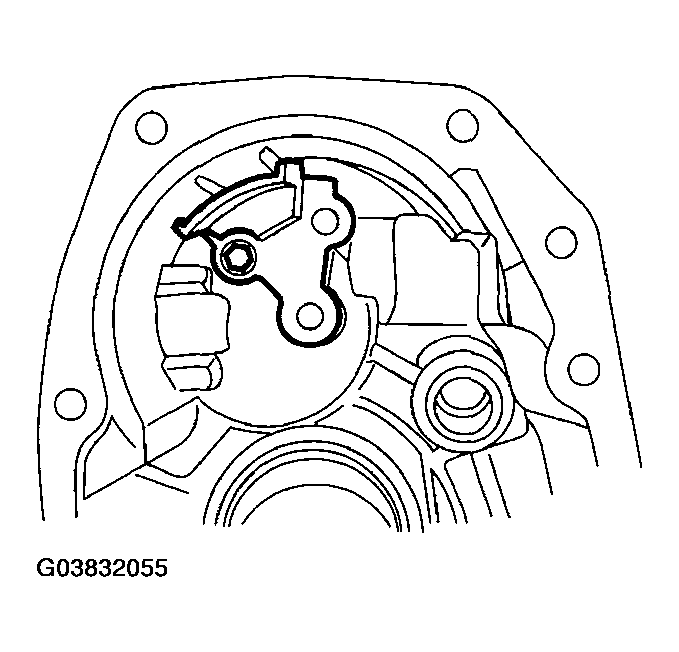

    Fig 1: Installing Oil Guide To Transfer Case
    G03832055Courtesy of SUBARU OF AMERICA, INC.
  2. Install the reverse check sleeve assembly to transfer case. < Ref. to , INSTALLATION , Reverse Check Sleeve. >
