Extension Case

WARNING: This page is about a different variant/trim than selected.
  1. Using the ST, install the oil seal to extension case. < Ref. to , OIL SEAL . >
    NOTE: Use a new oil seal.
  2. Install the shift bracket to extension case.

    Tightening torque:

    24.5 N.m (2.5 kgf-m, 18.1 ft-lb)

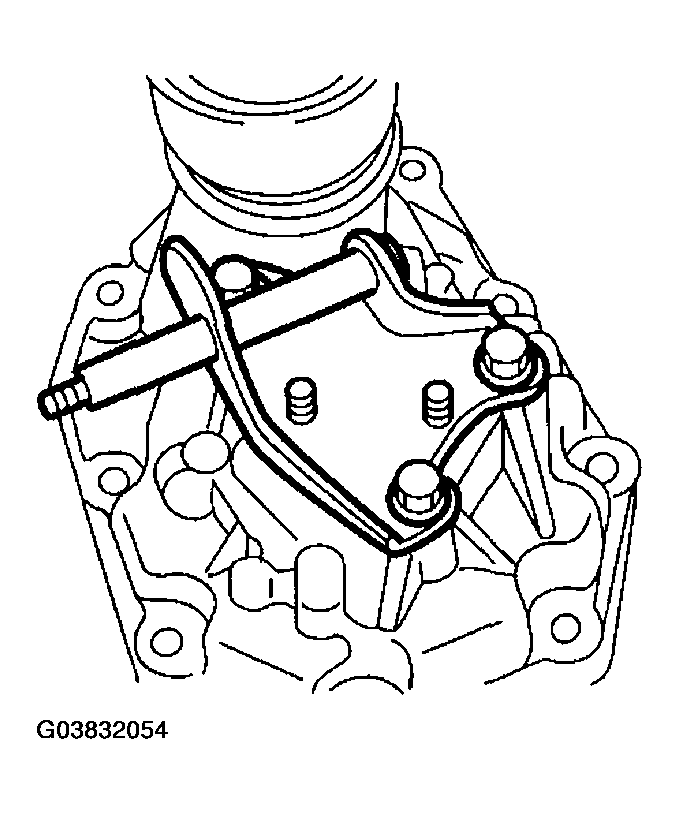

    Fig 1: Installing Shift Bracket To Extension Case
    G03832054Courtesy of SUBARU OF AMERICA, INC.
  3. Install the transfer drive gear to extension case. < Ref. to , INSTALLATION , Transfer Drive Gear. >
