Section 19 (Cooling System (H4DOTC)): Thermostat: Removal

WARNING: This page is about a different variant/trim than selected.

Set the vehicle on a lift.
Lift-up the vehicle.
Remove the under cover.
Drain engine coolant completely.
< Ref. to , DRAINING OF ENGINE COOLANT , REPLACEMENT, Engine Coolant. >

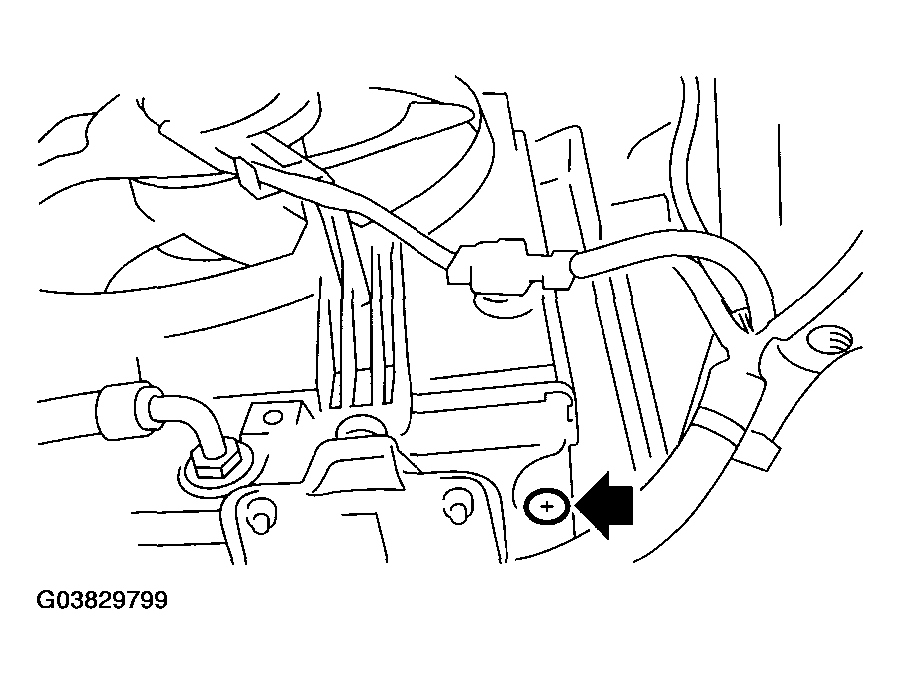

Fig 1: Identifying Coolant Filler Tank Cap
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the radiator outlet hose from the thermostat cover.

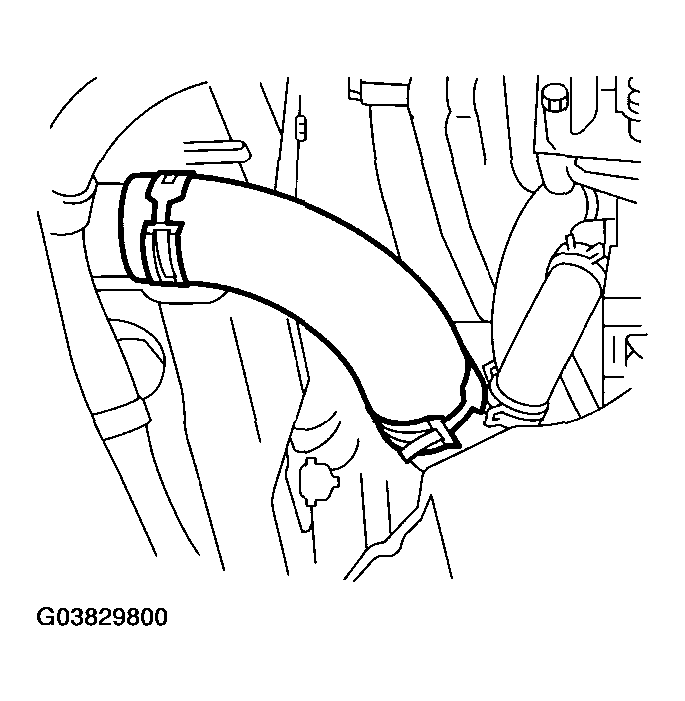

Fig 2: Disconnecting Radiator Outlet Hose From Thermostat Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the thermostat cover, and then remove the gasket and thermostat.

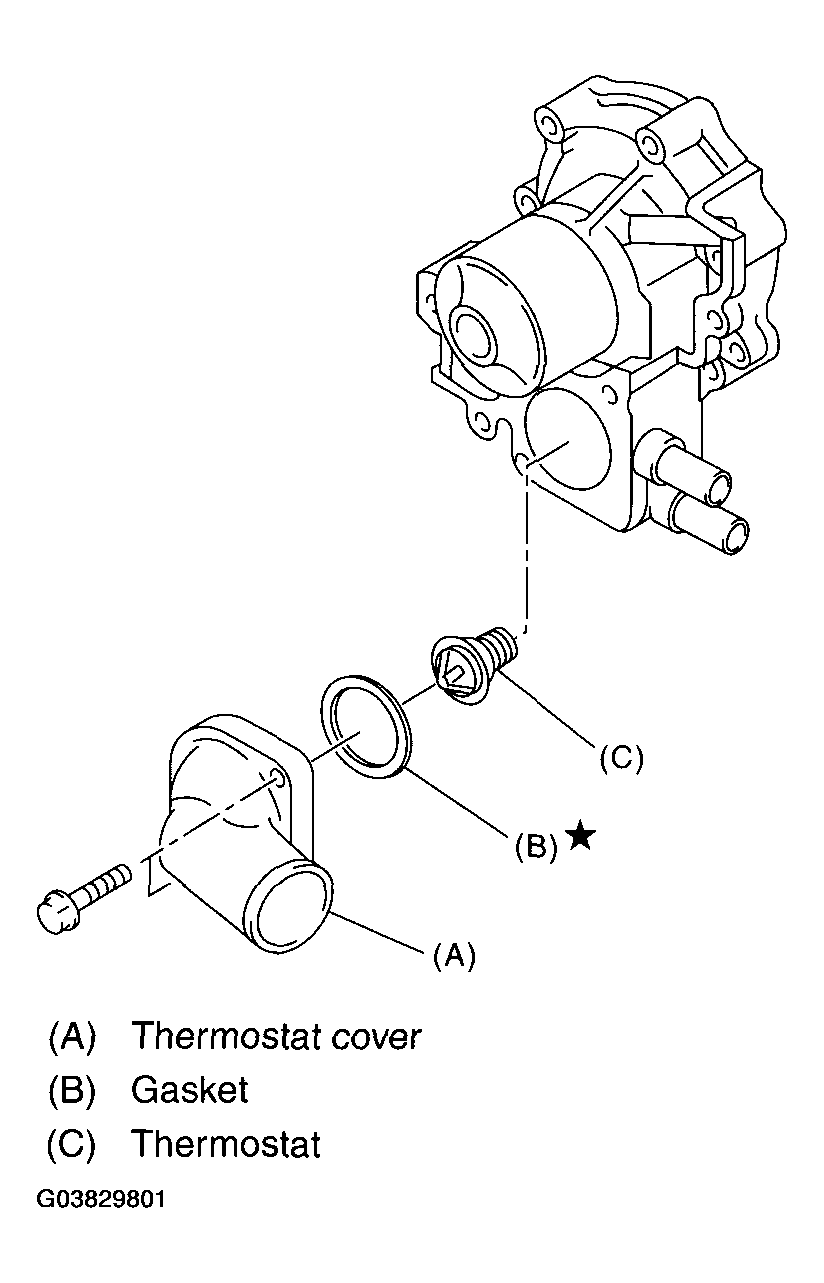

Fig 3: Removing Thermostat
Courtesy of SUBARU OF AMERICA, INC.
