Cam Sprocket: Installation

WARNING: This page is about a different variant/trim than selected.

Install the cam sprocket. To lock the camshaft, use ST.
ST 499207400 CAMSHAFT SPROCKET WRENCH

Tightening torque:

Tighten to 29.5 N.m (3.0 kgf-m, 21.8 ft-lb) of torque, and then tighten further by 45°

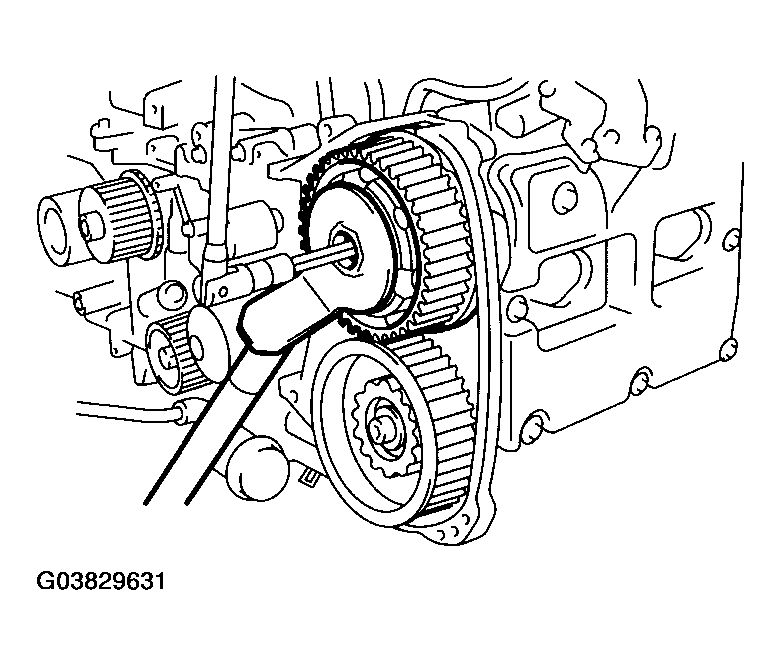

Fig 1: Locking Cam Sprocket Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.

ST 499977500 CAMSHAFT SPROCKET WRENCH

Tightening torque:

Tighten to 29.5 N.m (3.0 kgf-m, 21.8 ft-lb) of torque, and then tighten further by 45°

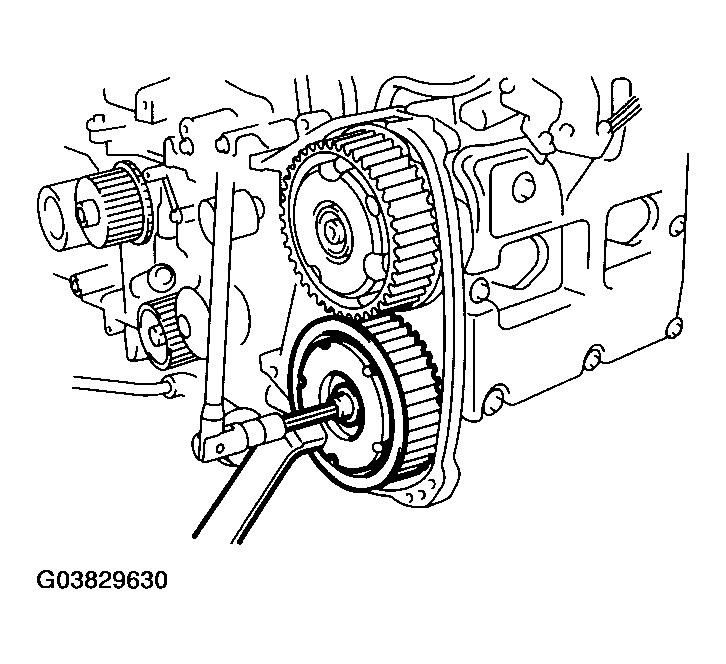

Fig 2: Installing Cam Sprocket Using Special Tool
Courtesy of SUBARU OF AMERICA, INC.
Install the timing belt. < Ref. to , INSTALLATION , Timing Belt. >
Install the timing belt cover.
< Ref. to , INSTALLATION , Timing Belt Cover. >
Install the crank pulley.
< Ref. to , INSTALLATION , Crank Pulley. >
Install the V-belts. < Ref. to , INSTALLATION , V-belt. >
