LH Side

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the ground cable from battery.

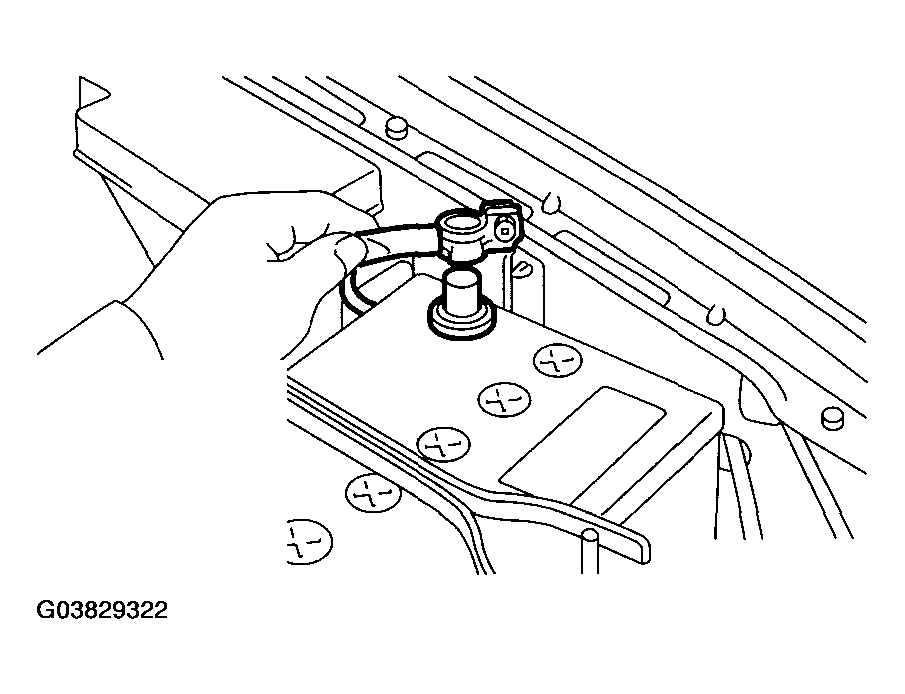

    Fig 1: Disconnecting Ground Cable From Battery
    G03829322Courtesy of SUBARU OF AMERICA, INC.
  2. Remove the intercooler. < Ref. to REMOVAL , lntercooler. >
  3. Disconnect the connector from tumble generator valve actuator LH.
  4. Remove the tumble generator valve actuator LH.

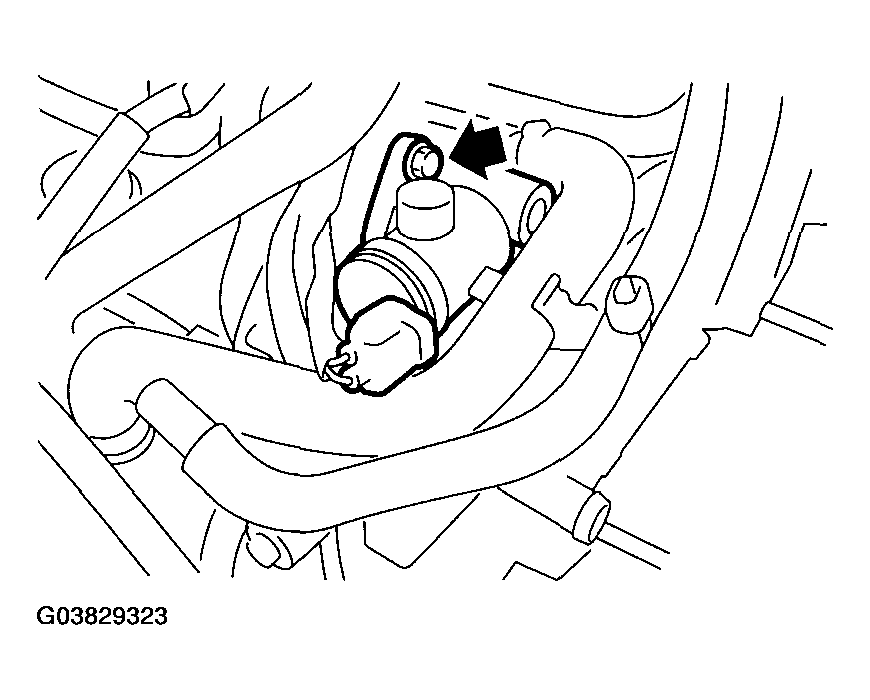

Fig 2: Removing Tumble Generator Valve Actuator LH
G03829323Courtesy of SUBARU OF AMERICA, INC.
