Exhaust Temperature Sensor: Removal

WARNING: This page is about a different variant/trim than selected.

Disconnect the ground cable from battery.

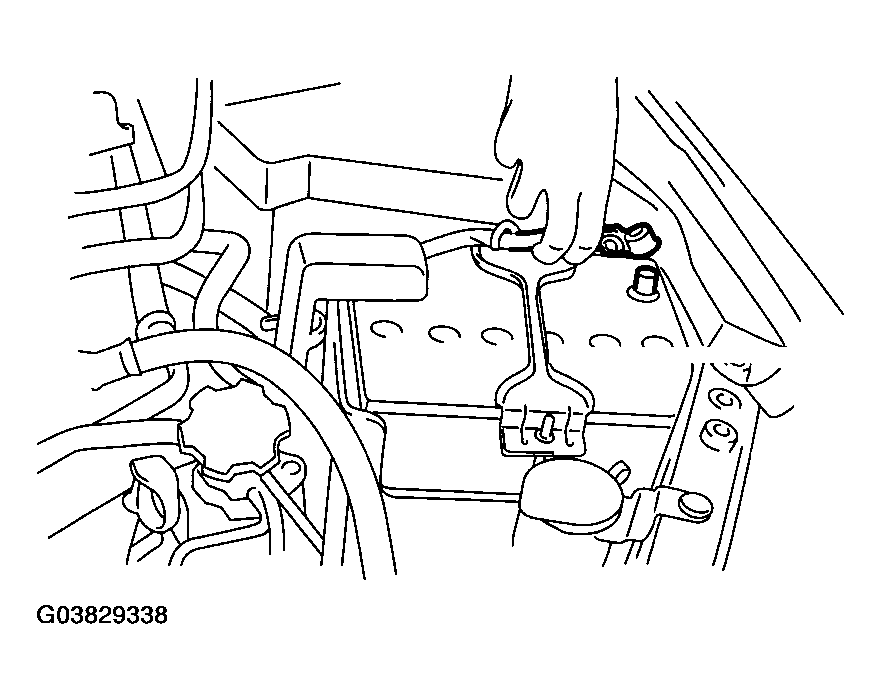

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the joint pipe. < Ref. to REMOVAL , Joint Pipe. >
Apply spray type lubricant or its equivalent to the threaded portion of exhaust temperature sensor, and leave it for one minute or more.
Remove the exhaust temperature sensor.

CAUTION: When removing the exhaust temperature sensor, wait until exhaust pipe cools, otherwise it will damage exhaust pipe.

Fig 2: Removing Exhaust Temperature Sensor

Courtesy of SUBARU OF AMERICA, INC.
