Resonator Chamber: Removal

  1. Set the vehicle on a lift.
  2. Remove the air intake duct. < Ref. REMOVAL , Air Intake Duct. >
  3. Remove the air cleaner lower case. < Ref. REMOVAL , Air Cleaner Case. >
  4. Remove the resonator chamber mounting bolt on the right of engine compartment.
    Fig 1: Removing Resonator Chamber Mounting Bolt
    G03806577Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the front right tire, and lift the vehicle.
  6. Remove the front mudguard RH.
  7. Remove the resonator chamber from the inside front fender.

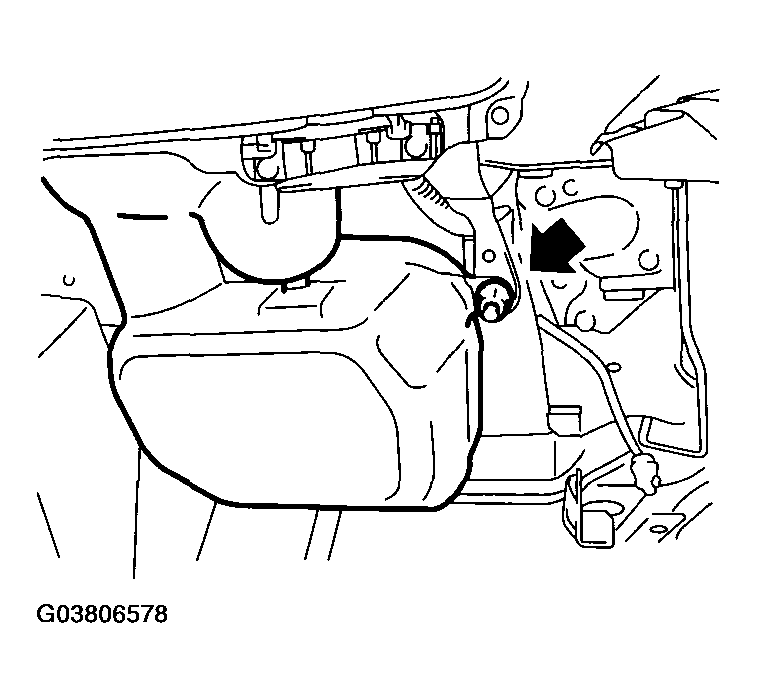

    Fig 2: Removing Resonator Chamber
    G03806578Courtesy of SUBARU OF AMERICA, INC.
