Air Cleaner Case: Removal

  1. Disconnect the ground cable from battery.

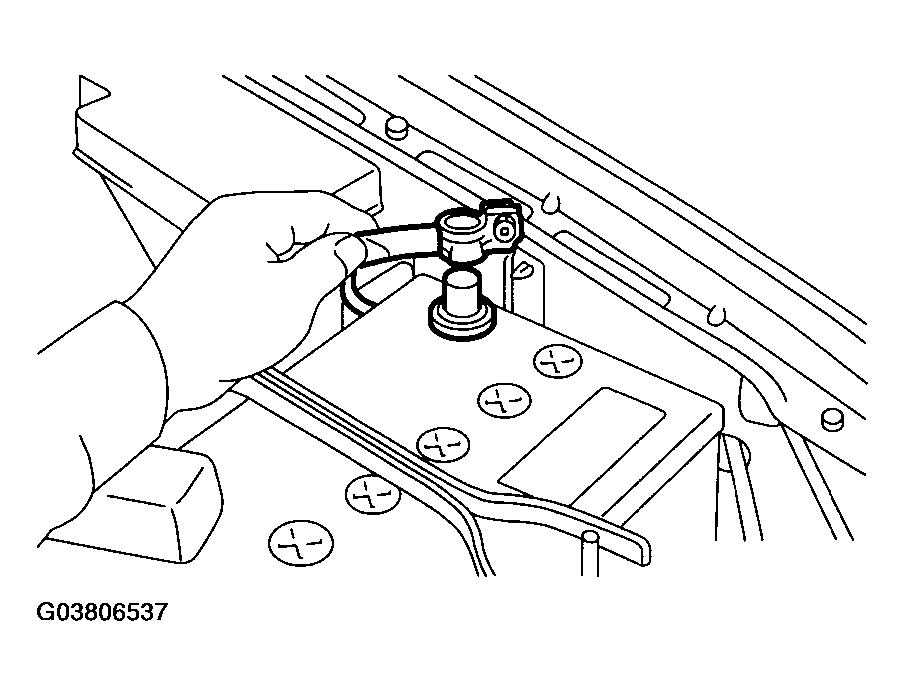

    Fig 1: Disconnecting Ground Cable From Battery
    G03806537Courtesy of SUBARU OF AMERICA, INC.
  2. Disconnect the connector from mass air flow sensor.

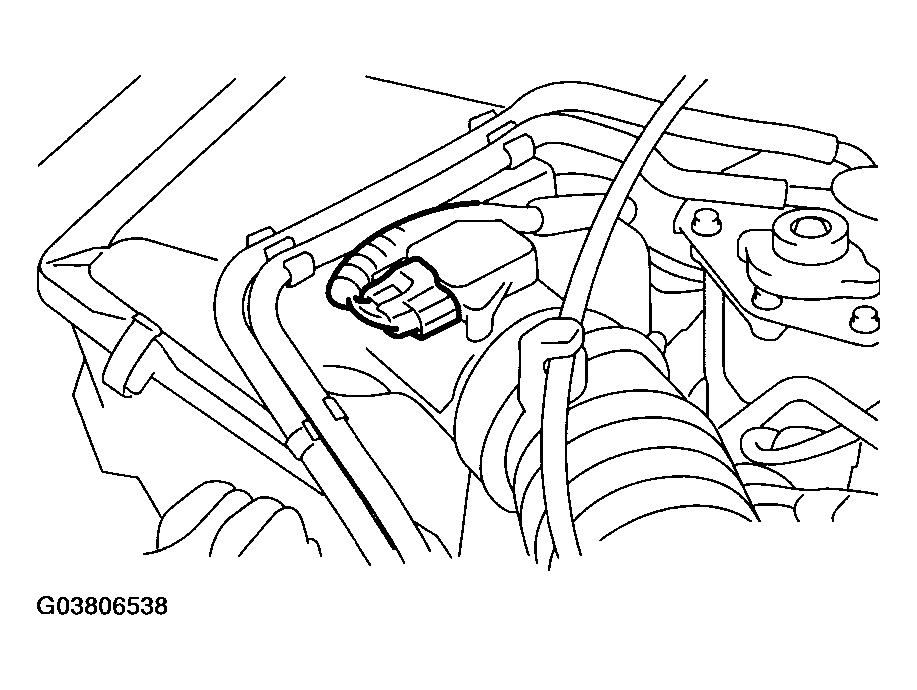

    Fig 2: Disconnecting Connector From Mass Air Flow Sensor
    G03806538Courtesy of SUBARU OF AMERICA, INC.
  3. Loosen the clamp (A) which connects air intake boot and intake duct.
  4. Remove the clip (B) from air cleaner upper cover.

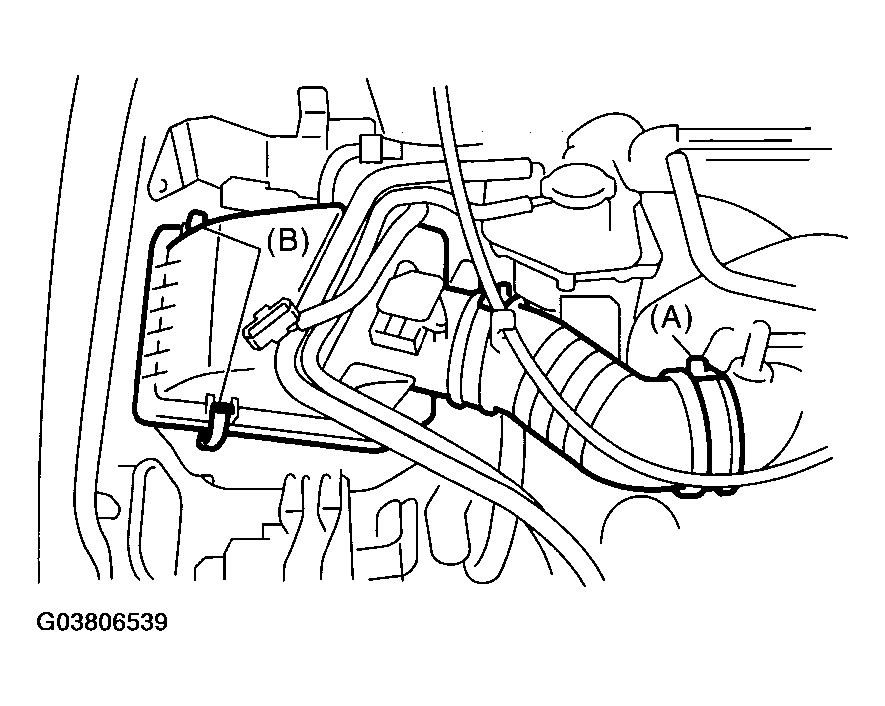

    Fig 3: Removing Clip From Air Cleaner Upper Cover
    G03806539Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the air cleaner upper cover.
  6. Remove the air cleaner element.
  7. Remove the air cleaner lower case.
    Fig 4: Removing Air Cleaner Upper Cover
    G03806540Courtesy of SUBARU OF AMERICA, INC.
