Intake (Induction) (H4DOTC): Turbocharger: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.

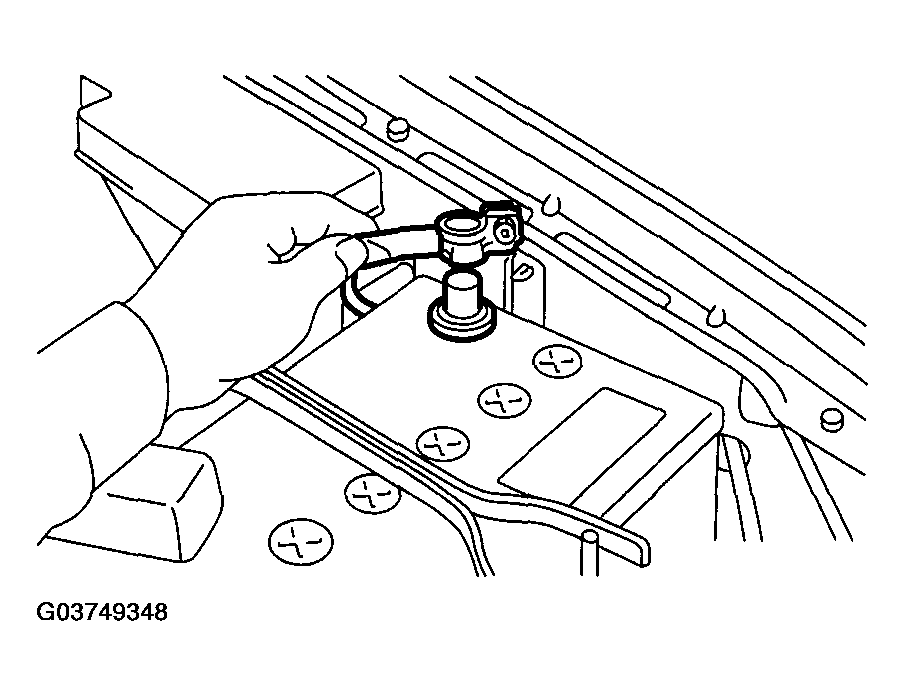

Fig 1: Disconnecting Ground Cable From Battery
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe.
< Ref. to REMOVAL , Center Exhaust Pipe . >
Lower the vehicle.
Separate the turbocharger joint pipe from turbo-charger.

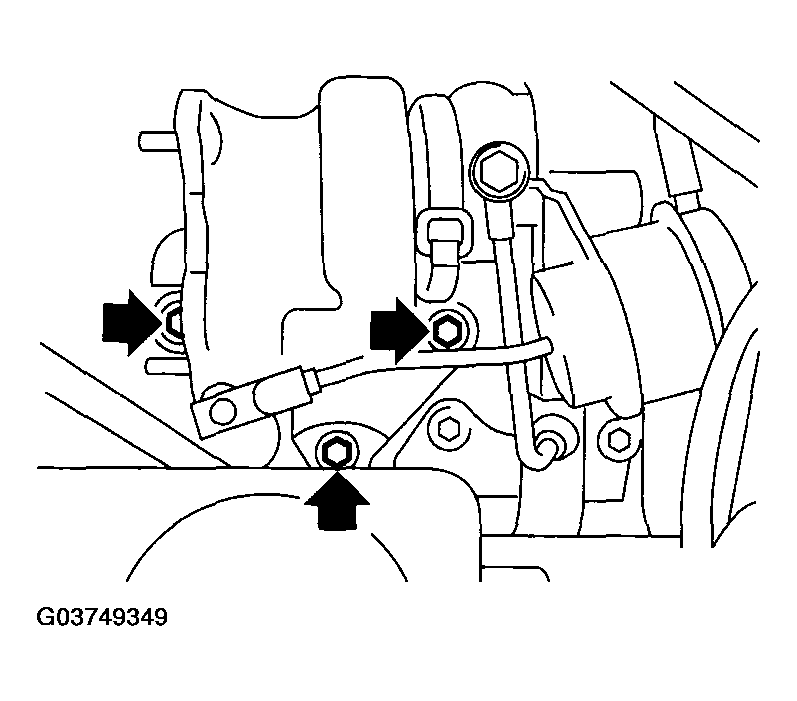

Fig 2: Identifying Bolt
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose which is connected to coolant filler tank.

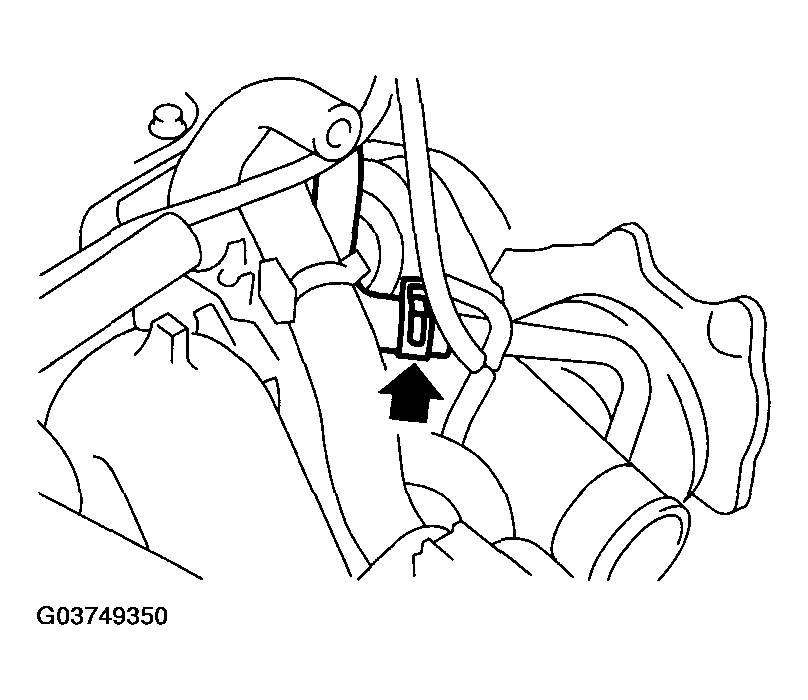

Fig 3: Disconnecting Engine Coolant Hose Which Is Connected To Coolant Filler Tank
Courtesy of SUBARU OF AMERICA, INC.
Loosen the clamp which secures the turbocharger to intake duct.

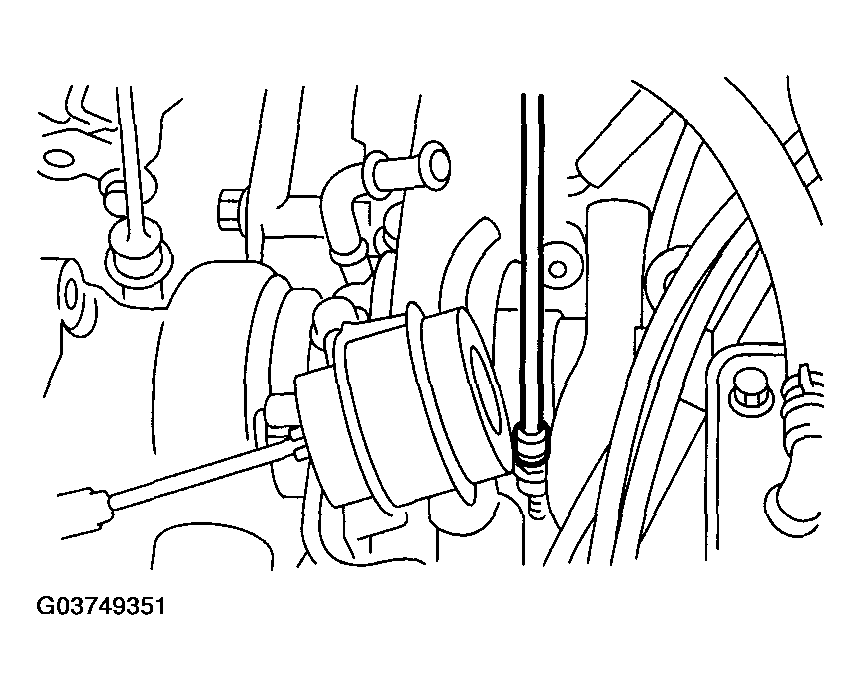

Fig 4: Loosening Clamp Which Secures Turbocharger To Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which secures the bracket of oil pipe to turbocharger.
Remove the oil pipe from turbocharger.

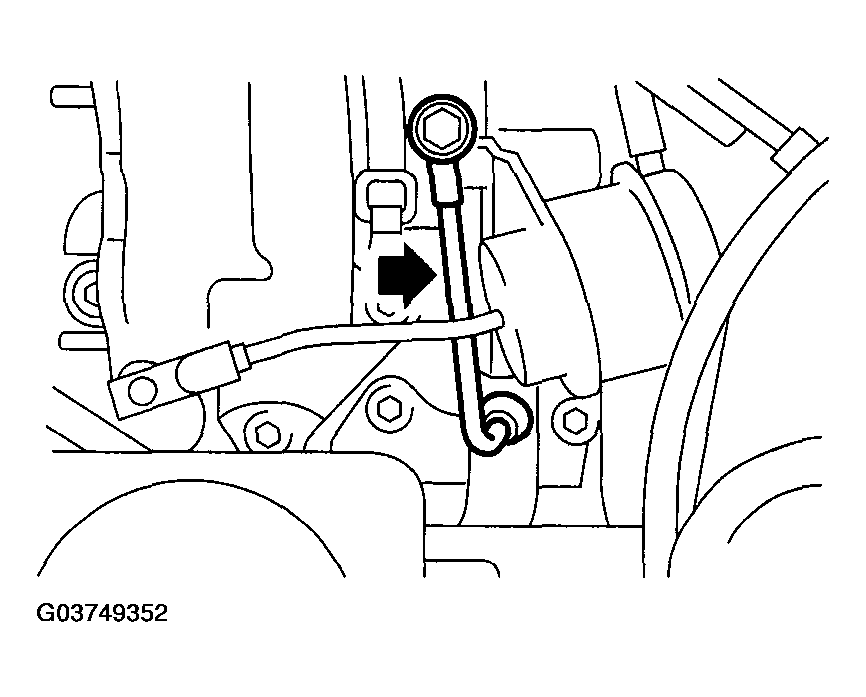

Fig 5: Removing Oil Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the engine coolant hose.
Remove the turbocharger bracket.

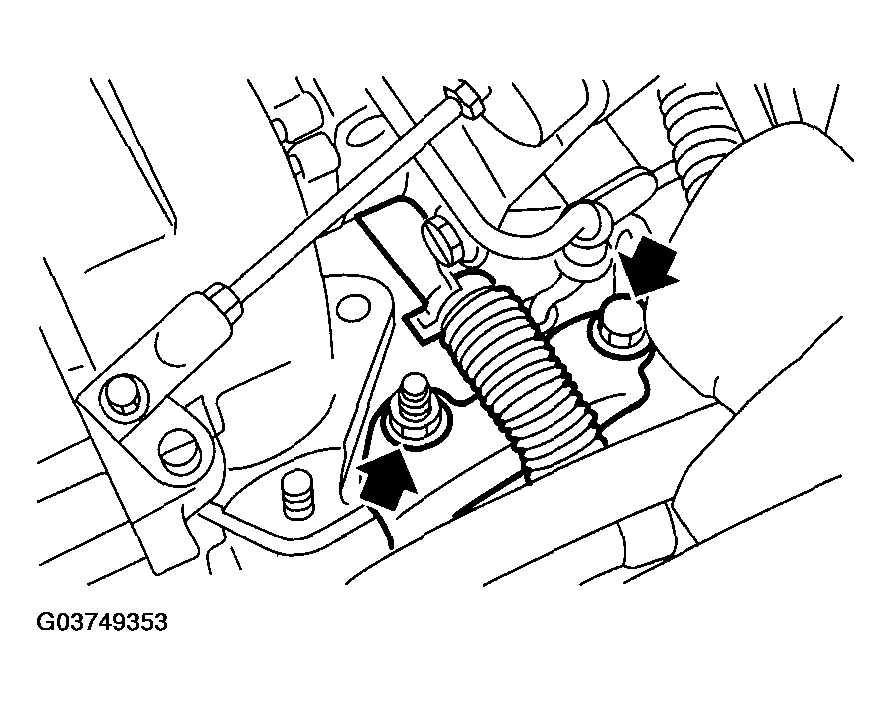

Fig 6: Removing Turbocharger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Disconnect the oil outlet hose from pipe.

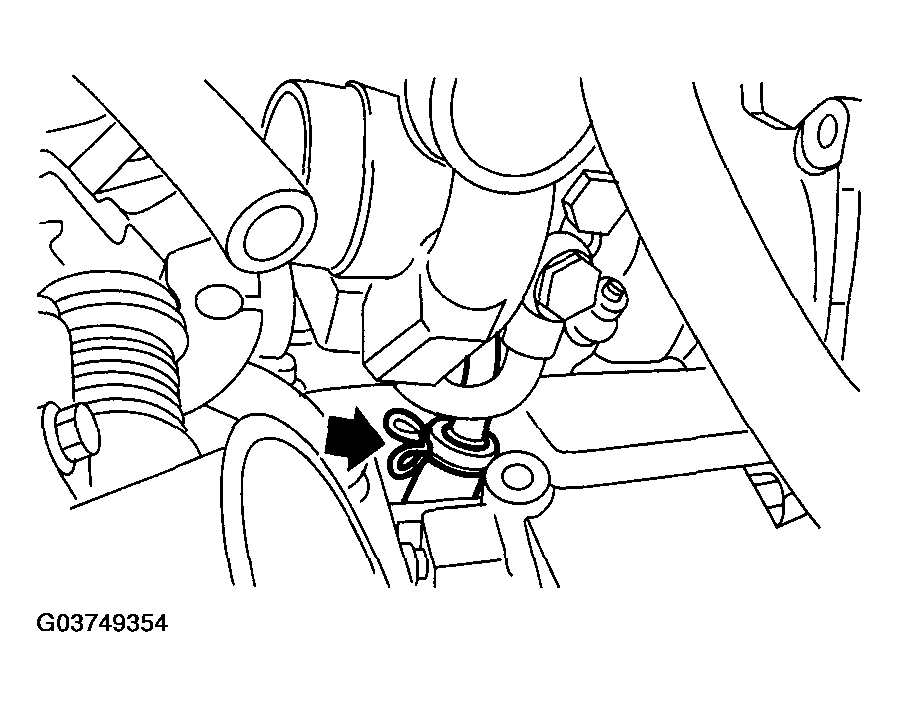

Fig 7: Disconnecting Oil Outlet Hose From Pipe
Courtesy of SUBARU OF AMERICA, INC.
Take out the turbocharger from engine compartment.
