Center Exhaust Pipe: Removal

Set the vehicle on a lift.
Disconnect the ground cable from battery.
Remove the intercooler. < Ref. to REMOVAL , Intercooler . >
Remove the intercooler bracket.

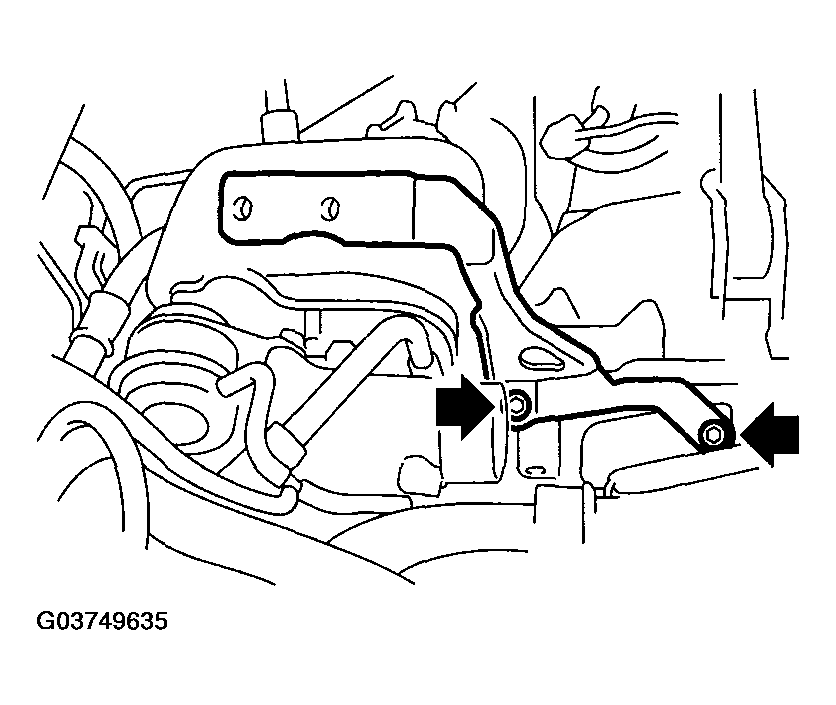

Fig 1: Removing Intercooler Bracket
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Remove the under cover.
Remove the bolts which install the lower side of turbocharger upper cover.
CAUTION: Be careful, the turbocharger and exhaust pipe are hot.

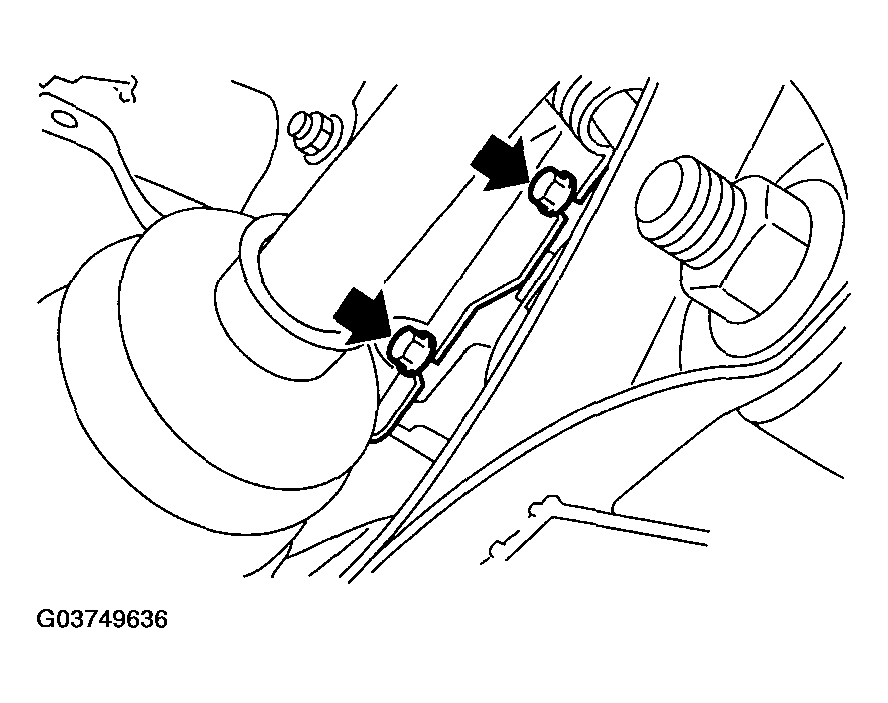

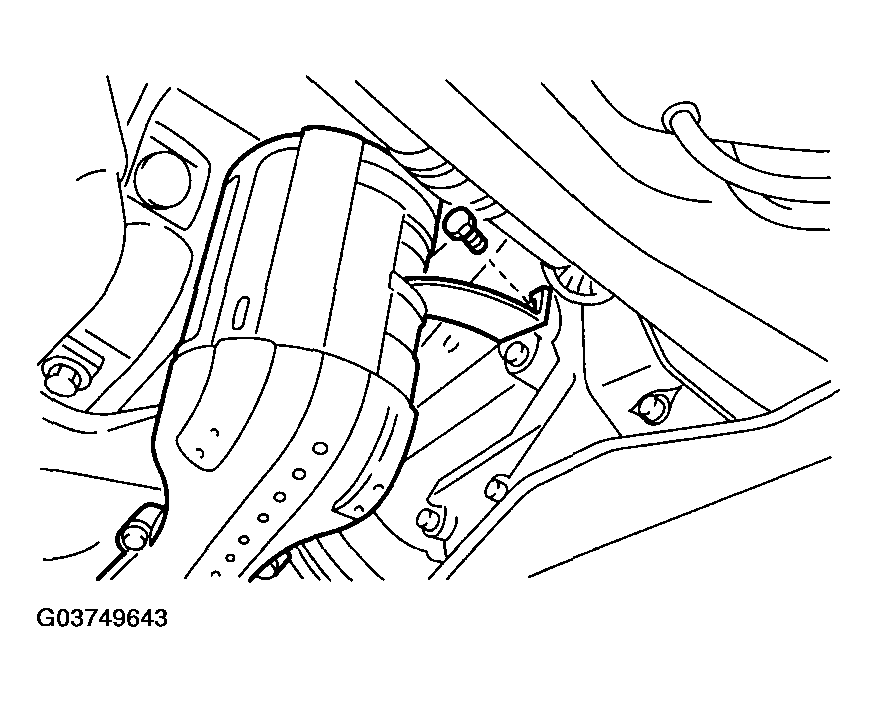

Fig 2: Removing Turbocharger Upper Cover Bolts
Courtesy of SUBARU OF AMERICA, INC.
Lower the vehicle.
Remove the turbocharger upper cover.

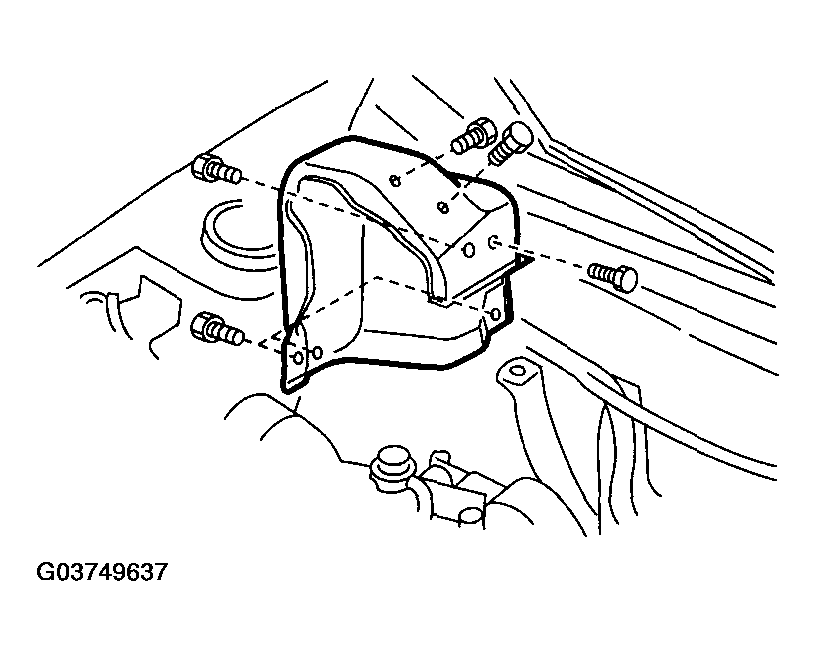

Fig 3: Removing Turbocharger Upper Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolts which install the lower upper side of turbocharger upper cover, and remove it.

Fig 4: Removing Turbocharger Upper Cover Bolt
Courtesy of SUBARU OF AMERICA, INC.
Separate the center exhaust pipe from turbocharger.

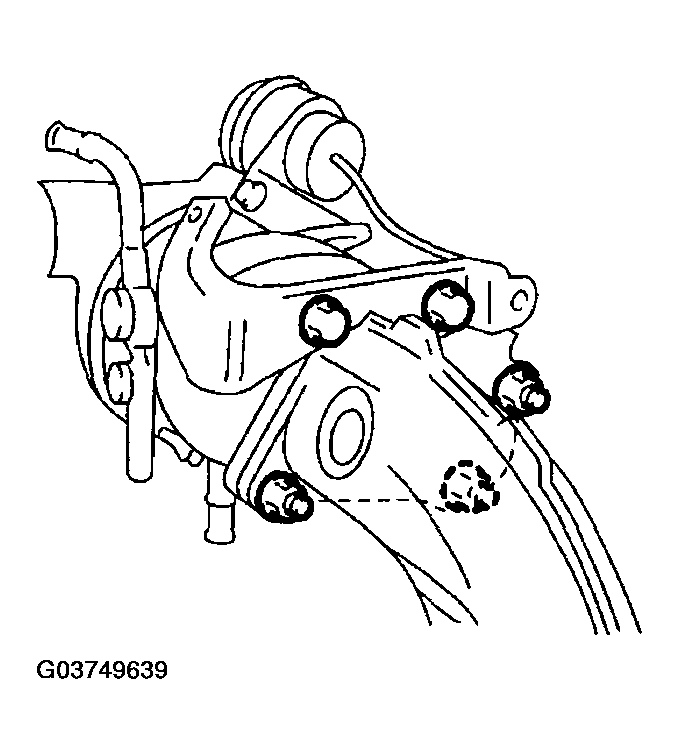

Fig 5: Separating Center Exhaust Pipe From Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Disconnect the connector from rear oxygen sensor.

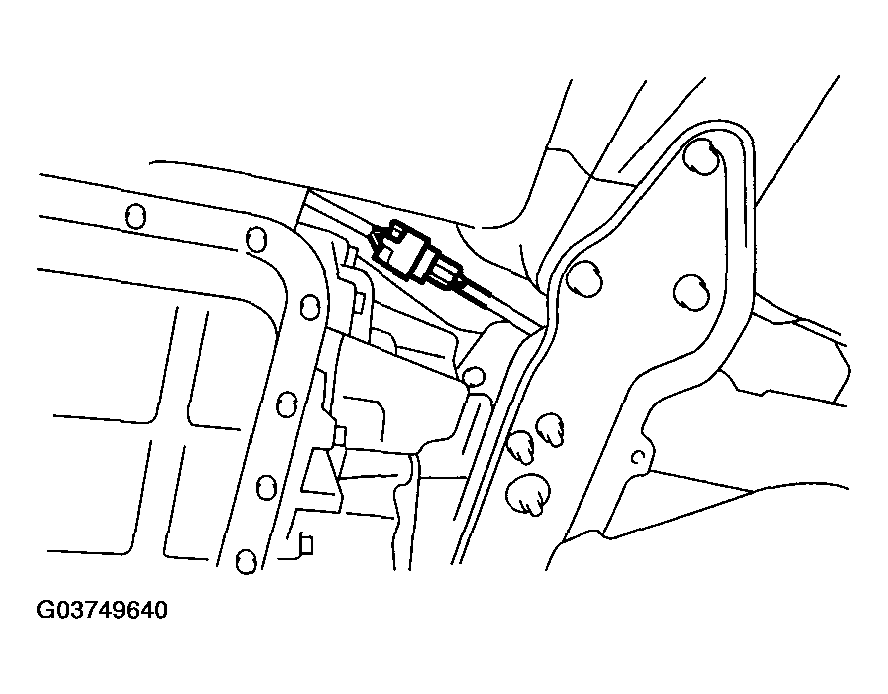

Fig 6: Disconnecting Connector From Rear Oxygen Sensor
Courtesy of SUBARU OF AMERICA, INC.
Vertically draw out the clip from crossmember.

Fig 7: Locating Crossmember Clips
Courtesy of SUBARU OF AMERICA, INC.
Separate the center exhaust pipe from rear exhaust pipe.

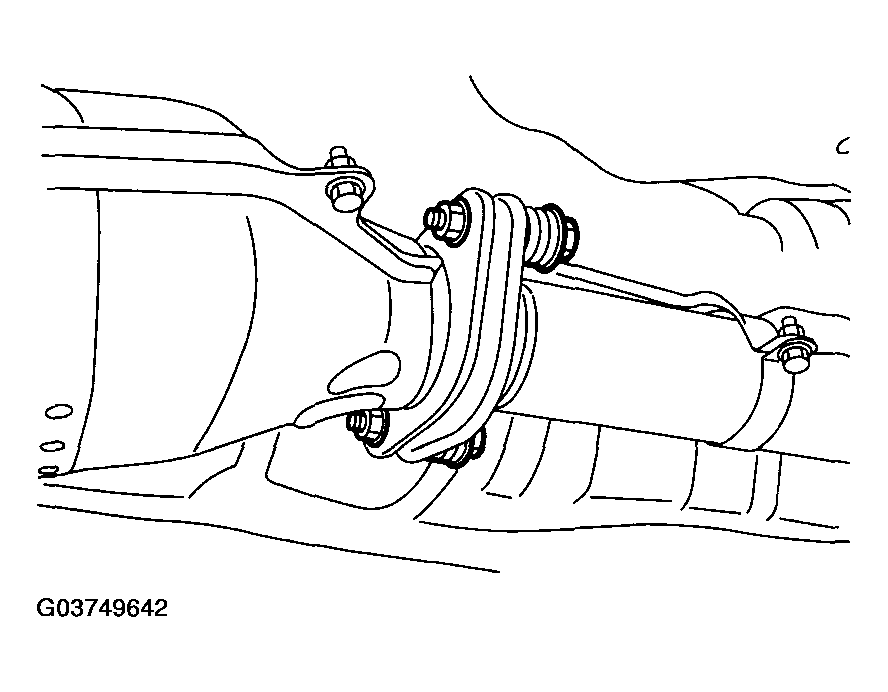

Fig 8: Separating Center Exhaust Pipe From Rear Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
Remove the bolt which holds the center exhaust pipe bracket to transmission.

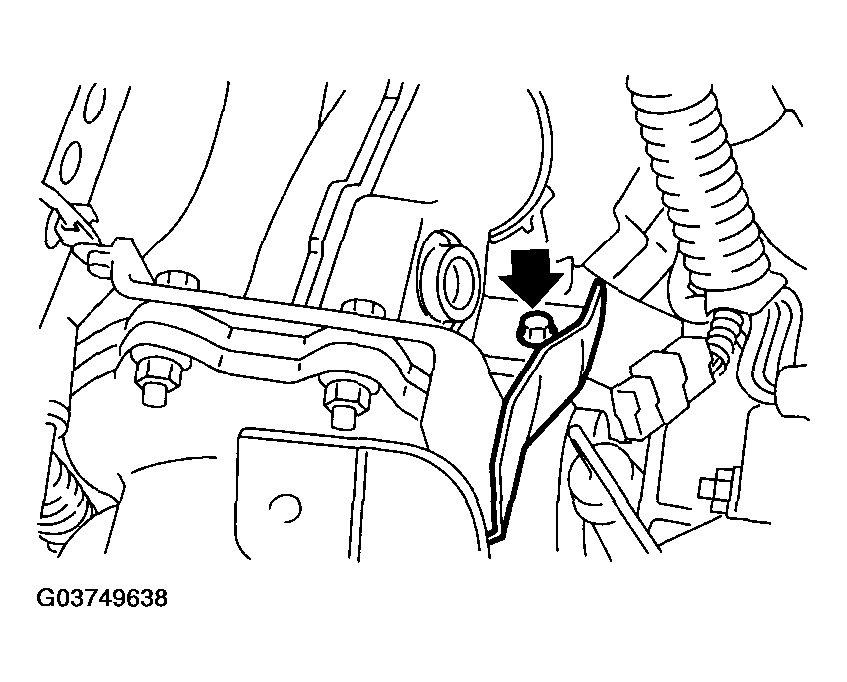

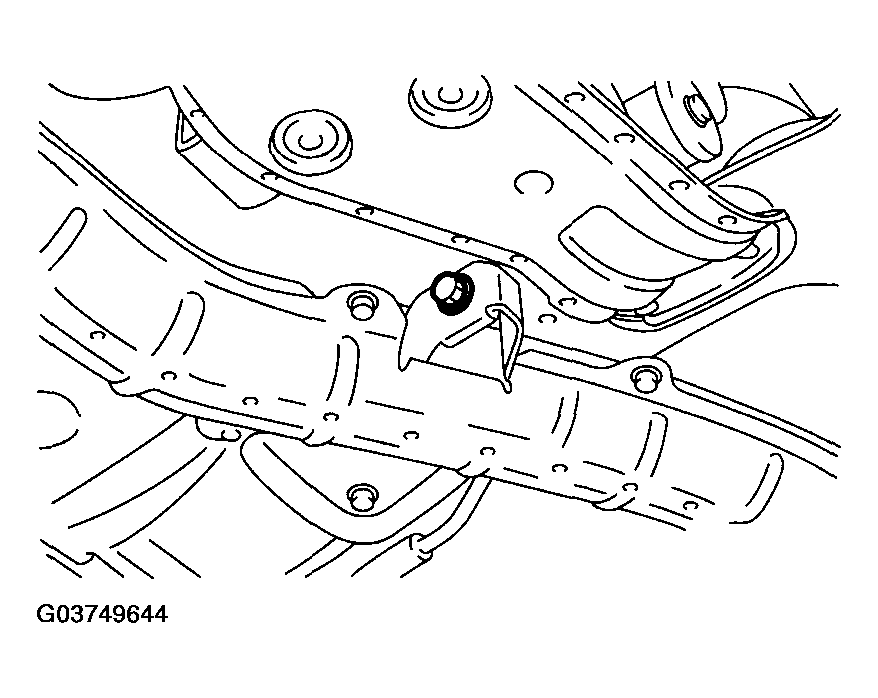

Fig 9: Removing Bolt Which Holds Center Exhaust Pipe Bracket To Transmission
Courtesy of SUBARU OF AMERICA, INC.
Remove the intercooler bracket.
Remove the bolt which holds the center exhaust pipe to hanger bracket.
CAUTION: Be careful not to pull down the center exhaust pipe.

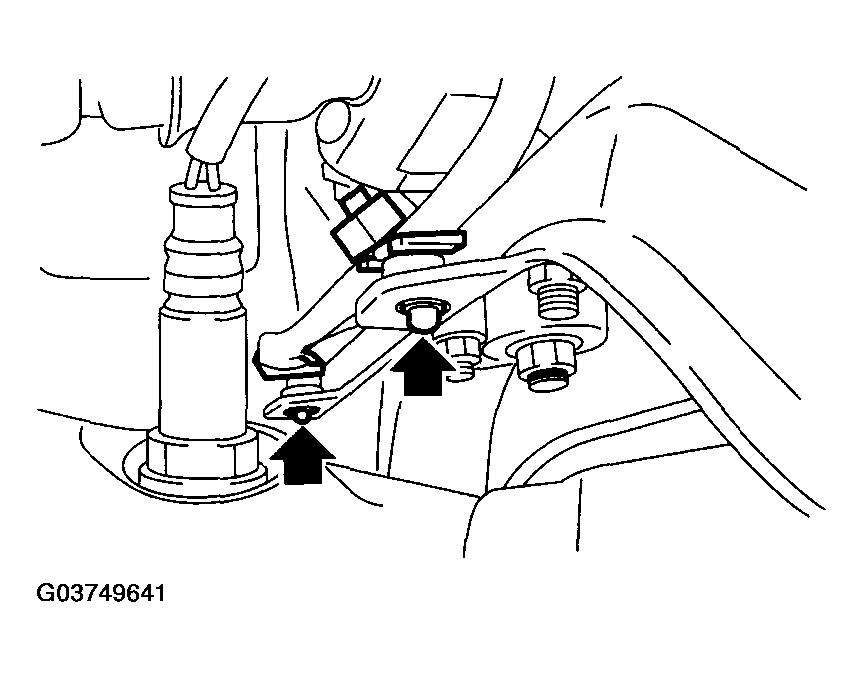

Fig 10: Removing Bolt Which Holds Center Exhaust Pipe To Hangar Bracket
Courtesy of SUBARU OF AMERICA, INC.
Remove the center exhaust pipe.

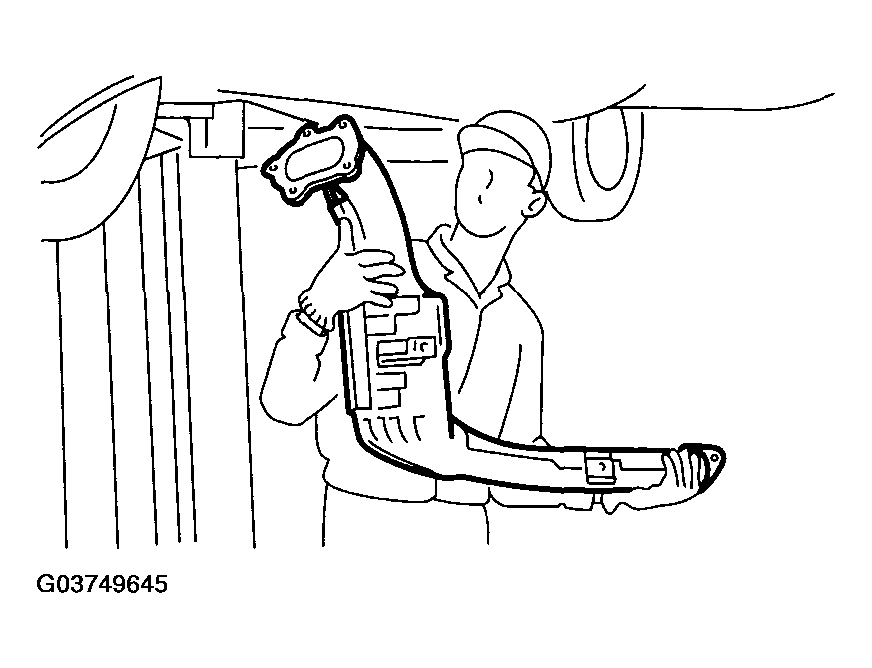

Fig 11: Removing Center Exhaust Pipe
Courtesy of SUBARU OF AMERICA, INC.
