Intake (Induction) (H4DOTC): Turbocharger: Installation

Connect the oil outlet hose to outlet pipe.

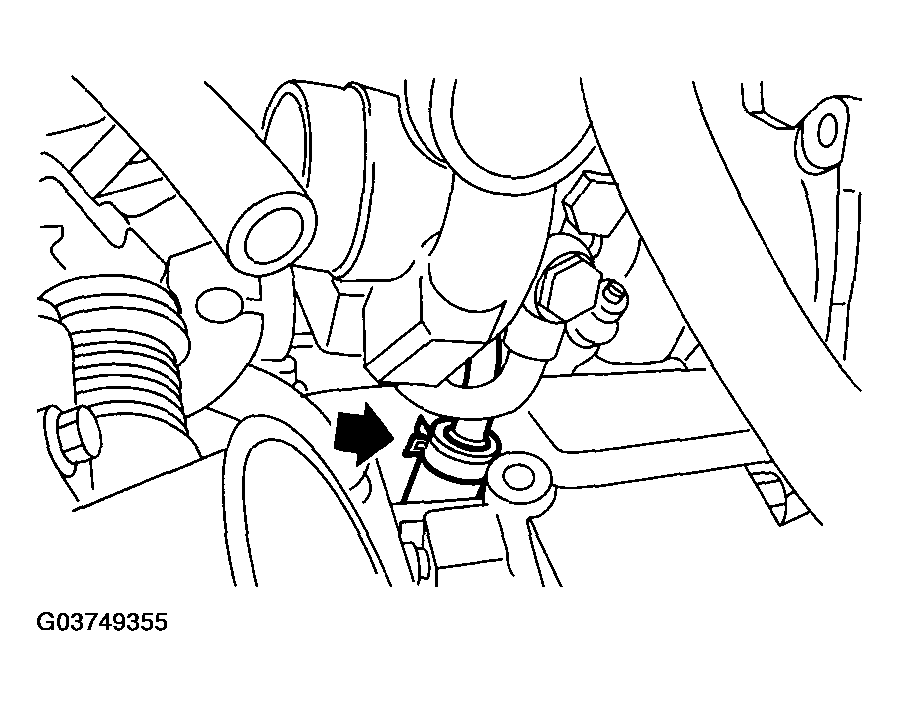

Fig 1: Connecting Oil Outlet Hose To Outlet Pipe
Courtesy of SUBARU OF AMERICA, INC.
Install the turbocharger to intake duct.
Tightening torque:

3 N.m (0.3 kgf-m, 2.2 ft-lb)

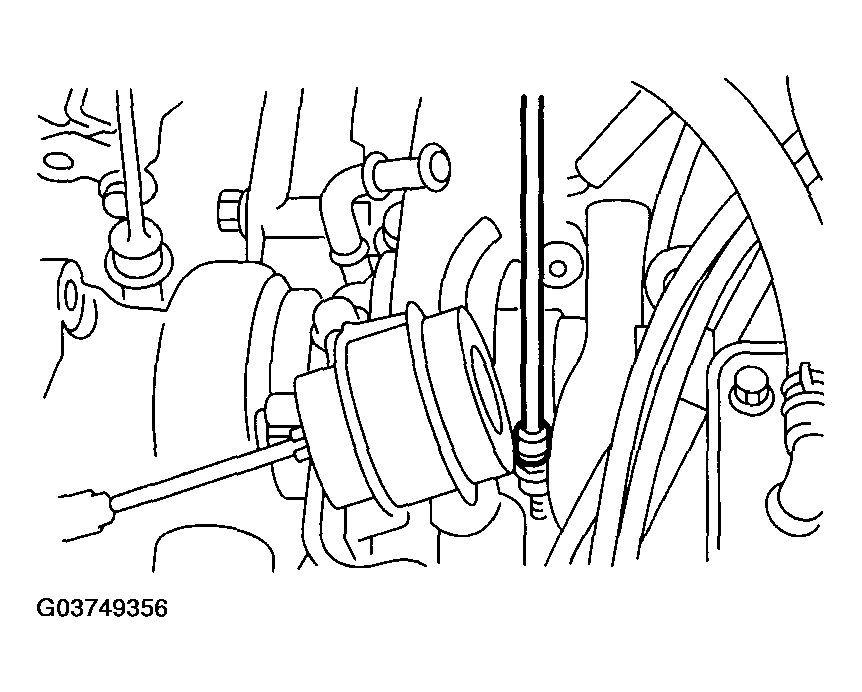

Fig 2: Installing Turbocharger To Intake Duct
Courtesy of SUBARU OF AMERICA, INC.
Install the oil pipe to turbocharger.
Tightening torque:

A: 20 N.m (2.0 kgf-m, 14.8 ft-lb)

B: 16 N.m (1.6 kgf-m, 11.6 ft-lb)

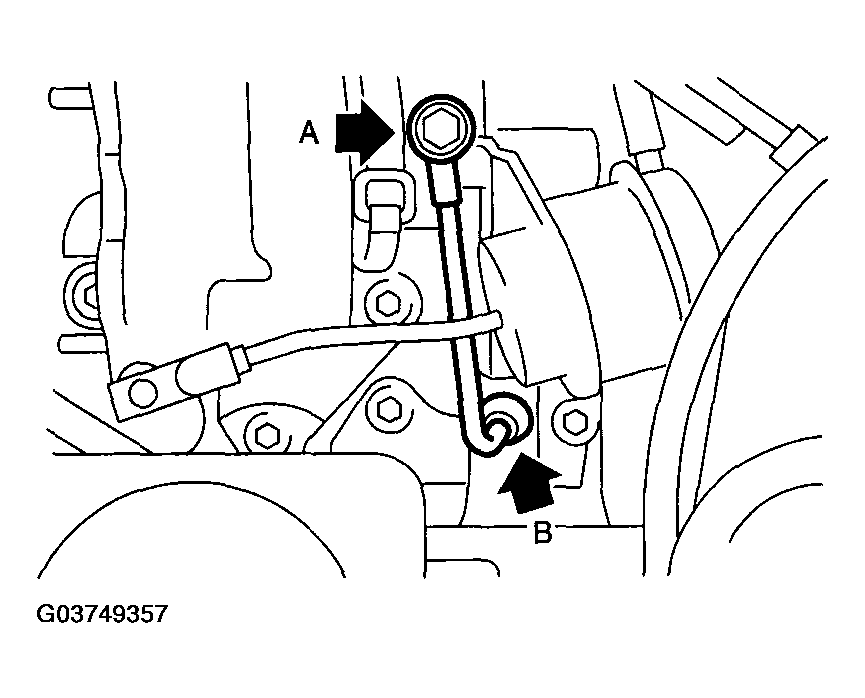

Fig 3: Installing Oil Pipe To Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Install the joint pipe to turbocharger.
NOTE: Replace the gasket with a new one.

Tightening torque:

35 N.m (3.6 kgf-m, 25.8 ft-lb)

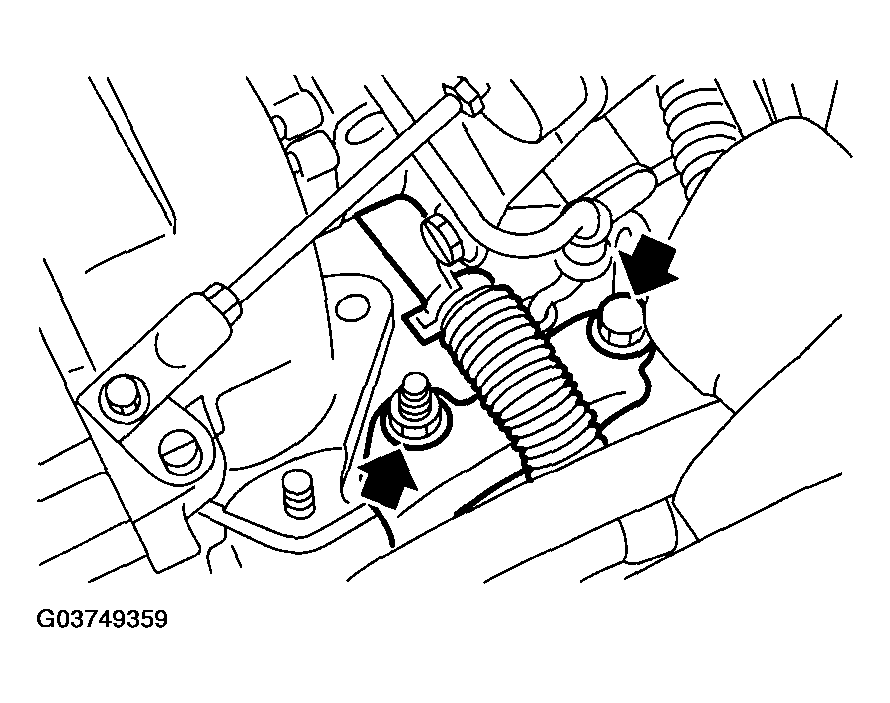

Fig 4: Installing Joint Pipe To Turbocharger
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant hose.
Install the turbocharger bracket.
Tightening torque:

33 N.m (3.4 kgf-m, 24.6 ft-lb)

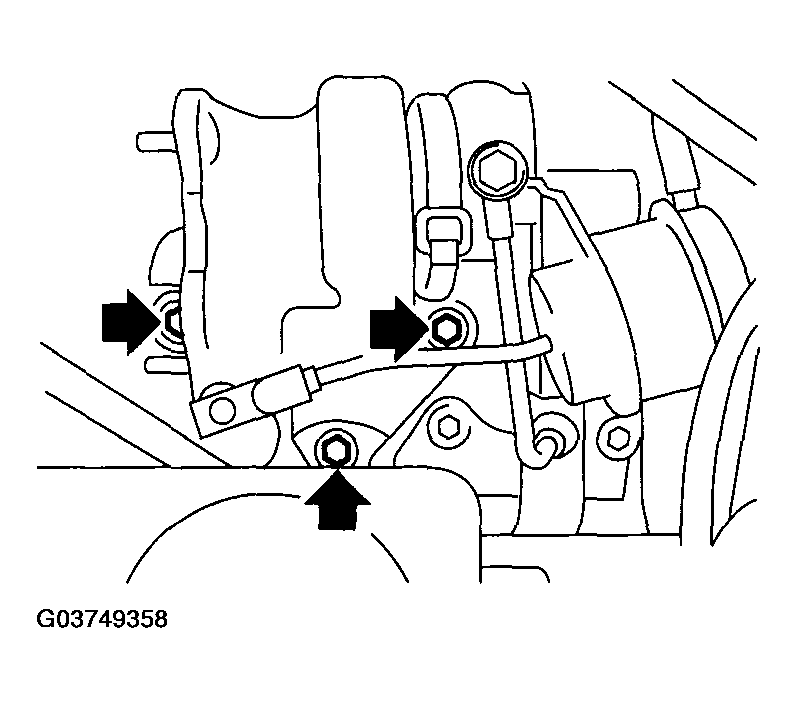

Fig 5: Installing Turbocharger Bracket
Courtesy of SUBARU OF AMERICA, INC.
Connect the engine coolant hose which is connected to coolant filler tank.

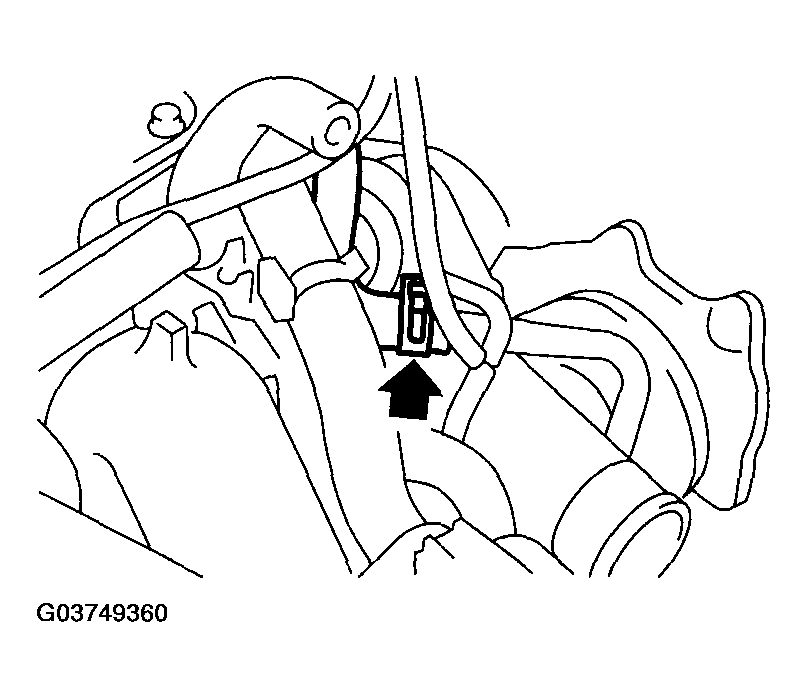

Fig 6: Connecting Engine Coolant Hose
Courtesy of SUBARU OF AMERICA, INC.
Lift-up the vehicle.
Install the center exhaust pipe.
< Ref. to INSTALLATION , Center Exhaust Pipe . >
