Resonator Chamber: Removal

  1. Set the vehicle on a lift.
  2. Remove the air intake duct. < Ref. to , REMOVAL , Air Intake Duct. >
  3. Remove the air cleaner lower case. < Ref. to , REMOVAL , Air Cleaner. >
  4. Remove the resonator chamber mounting bolt on right side of engine compartment.

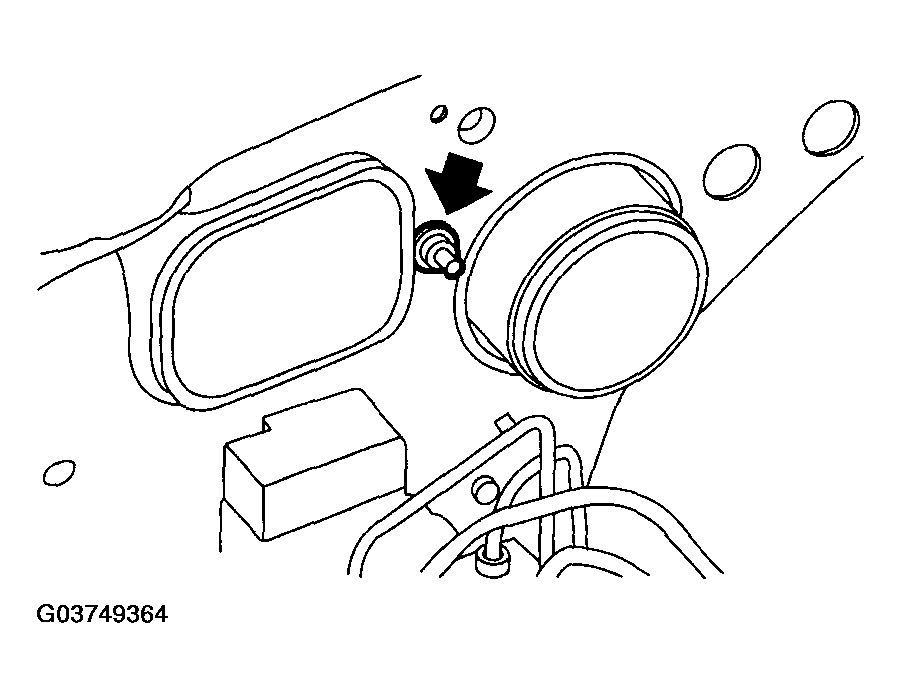

    Fig 1: Removing Resonator Chamber Mounting Bolt On Right Side Of Engine Compartment
    G03749364Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the front right tire, and lift up the vehicle.
  6. Remove the front mudguard RH.
  7. Remove the resonator chamber from the inside front fender.

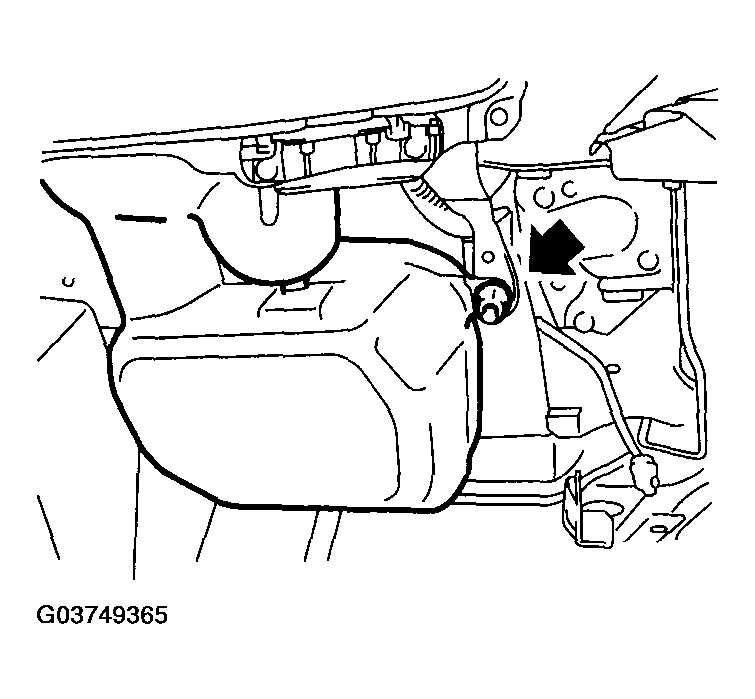

    Fig 2: Removing Resonator Chamber From Inside Front Fender
    G03749365Courtesy of SUBARU OF AMERICA, INC.
