Rear Door Glass: Removal

  1. Remove door trim. Refer to REMOVAL , Rear Door Trim.
  2. Remove sealing cover. Refer to REMOVAL , Rear Sealing Cover.
  3. Remove stabilizer.
    Fig 1: Removing Stabilizer
    G03510266Courtesy of SUBARU OF AMERICA, INC.
  4. Operate power window switch to move glass as shown in the figure, and remove two nuts.
    Fig 2: Operating Power Window Switch To Move Glass
    G03510267Courtesy of SUBARU OF AMERICA, INC.
  5. Loosen two screws to remove weatherstrip.

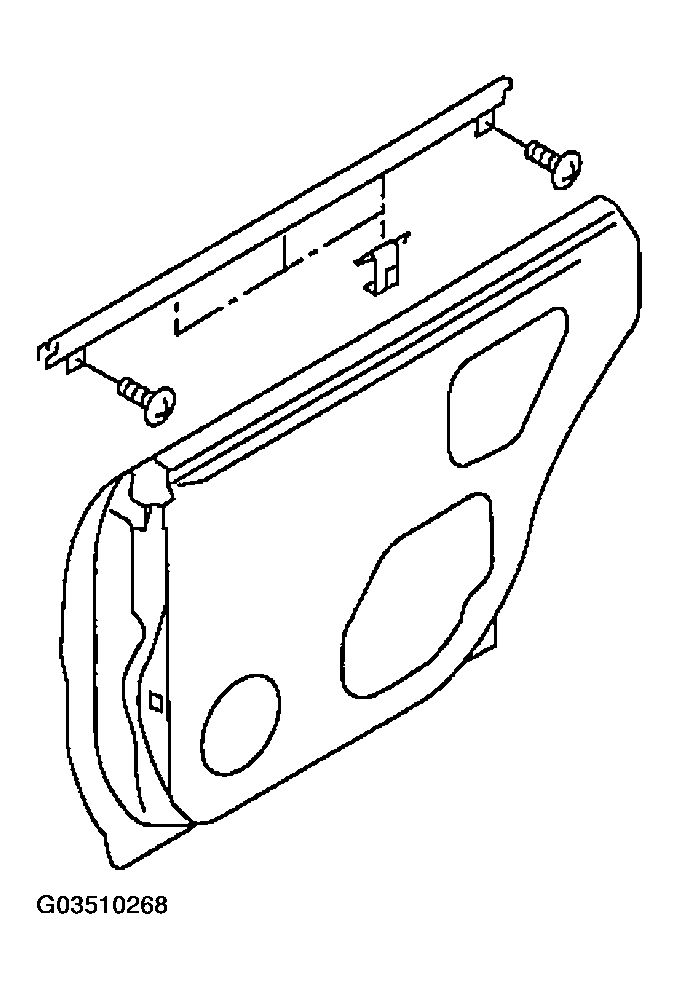

    Fig 3: Removing Weatherstrip
    G03510268Courtesy of SUBARU OF AMERICA, INC.
  6. Pull out glass.
    CAUTION: Avoid impact and damage to the glass.
