Home >> Subaru >> 2004 >> Baja Base, Standard >> Repair and Diagnosis >> Body & Frame >> Exterior Body Panels >> Rear Sealing Cover >> Removal

Rear Sealing Cover: Removal

  1. Remove rear door trim. Refer to REMOVAL , Rear Door Trim.
  2. Remove rear speaker. Refer to REMOVAL , Rear Speaker.
    CAUTION:
    • Carefully remove butyl tape. Excessive force will easily break the cover.
    • If cover gets broken, replace it with a new one.

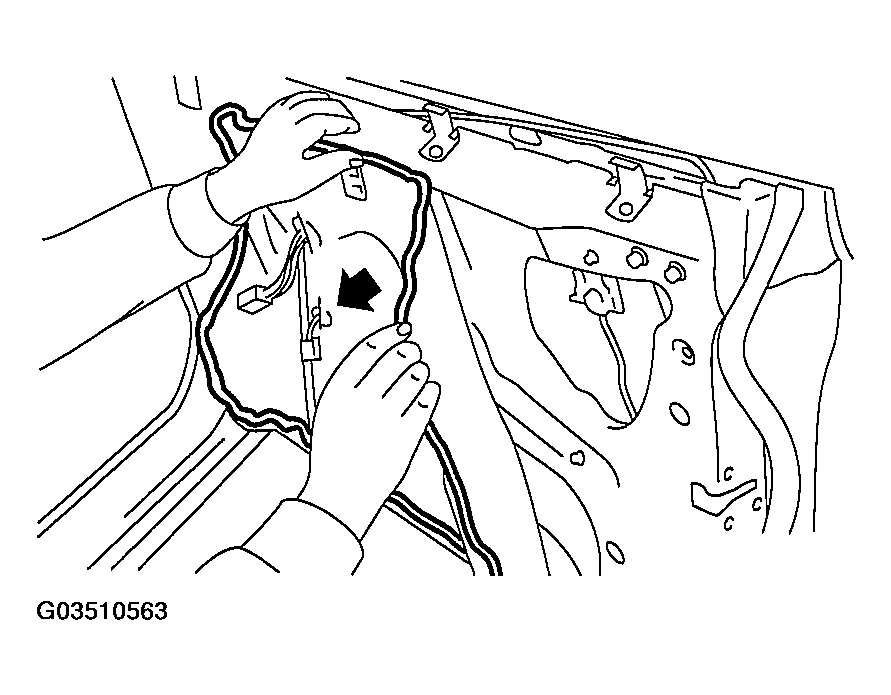

    Fig 1: Removing Rear Door Trim
    G03510563Courtesy of SUBARU OF AMERICA, INC.
