Sedan

Disconnect ground cable from battery.
Remove roof trim. < Ref. to SEDAN , REMOVAL, Roof Trim.>
Remove sunroof lid. < Ref. to SEDAN AND WAGON (REAR) , REMOVAL, Sunroof Lid.>
Disconnect drain tubes from sunroof frame.

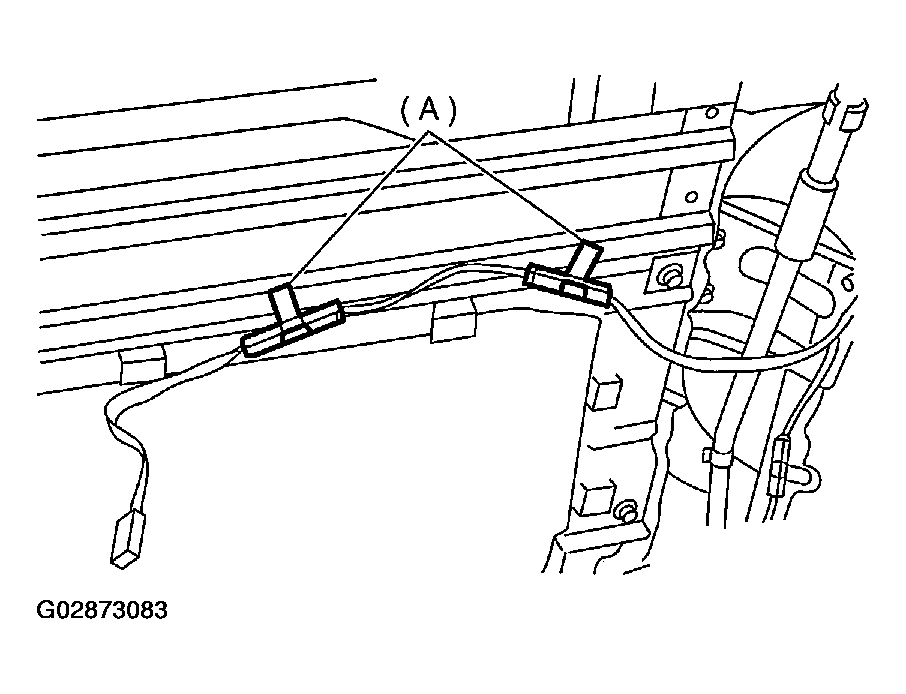

Remove room lamp harness clip (A).

Fig 1: Removing Room Lamp Harness Clip
Courtesy of SUBARU OF AMERICA, INC.
Disconnect sunroof harness connector.
Remove motor cover.

Fig 2: Removing Motor Cover
Courtesy of SUBARU OF AMERICA, INC.
Remove sunroof brackets front (A) and rear (B).

Fig 3: Removing Sunroof Brackets Front & Rear
Courtesy of SUBARU OF AMERICA, INC.

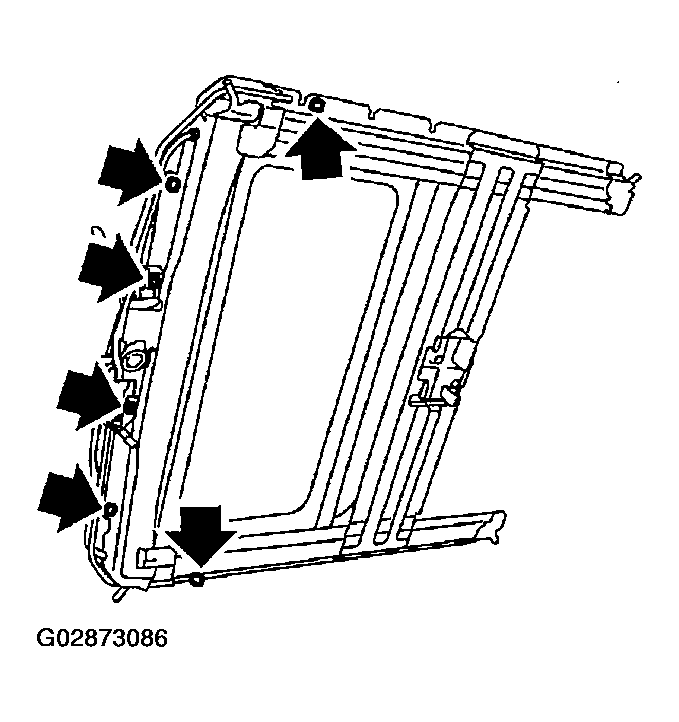

Remove nuts then detach the sunroof frame.

Fig 4: Removing Sunroof Frame
Courtesy of SUBARU OF AMERICA, INC.
