Rear Bumper: Removal

Disconnect the ground cable from battery.
Remove the bolts and clips.

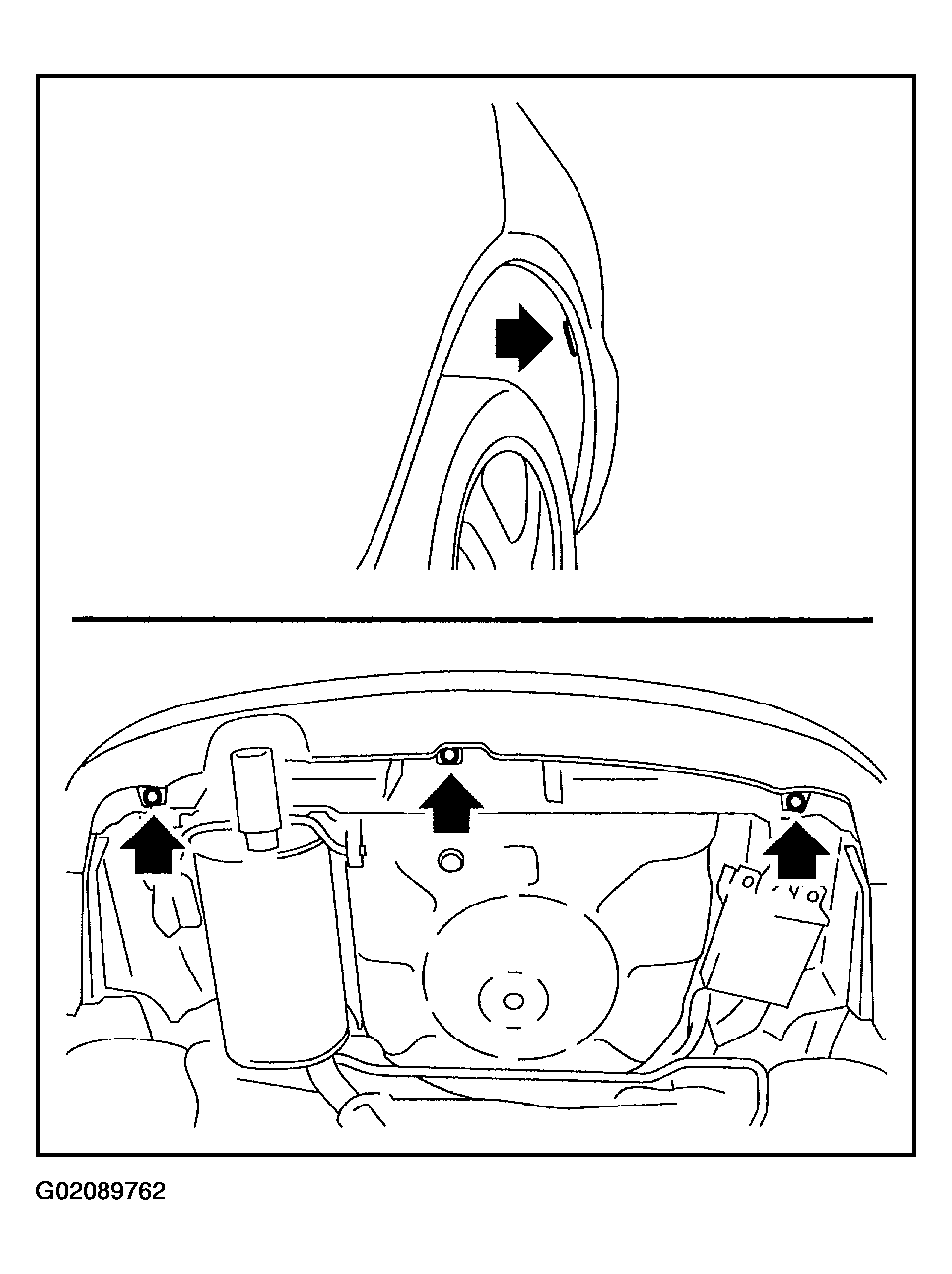

Fig 1: Removing Rear Bumper Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the clips from bumper and bracket.

Fig 2: Removing Clips From Bumper & Bracket
Courtesy of SUBARU OF AMERICA, INC.
When removing the rear bumper beam assembly, remove the six bolts on bumper stay.

Fig 3: Identifying Bolts On Bumper Stay
Courtesy of SUBARU OF AMERICA, INC.
Remove the rear combination light assembly. Refer to REMOVAL , Rear Combination Light Assembly.
Remove the two clips from each side.

Fig 4: Removing Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the floor box.
Remove the rear skirt trim.
Loosen the four nuts to remove rear bumper.

Fig 5: Removing Nuts To Remove Rear Bumper
Courtesy of SUBARU OF AMERICA, INC.

NOTE: Two persons are required when removing rear bumper assembly.
Remove the bolt to remove bracket from bumper.

Fig 6: Removing Bracket From Bumper
Courtesy of SUBARU OF AMERICA, INC.
Disengage the clips to remove bumper upper beam.

Fig 7: Removing Bumper Upper Beam
Courtesy of SUBARU OF AMERICA, INC.
Remove the four bolts to remove side bracket and bumper stay.

Fig 8: Removing Side Bracket & Bumper Stay
Courtesy of SUBARU OF AMERICA, INC.
