Rear Combination Light Assembly: Removal

  1. Disconnect the ground cable from battery.
  2. Remove the two bolts, and then turn the socket and disconnect cord assembly to remove rear combination light.

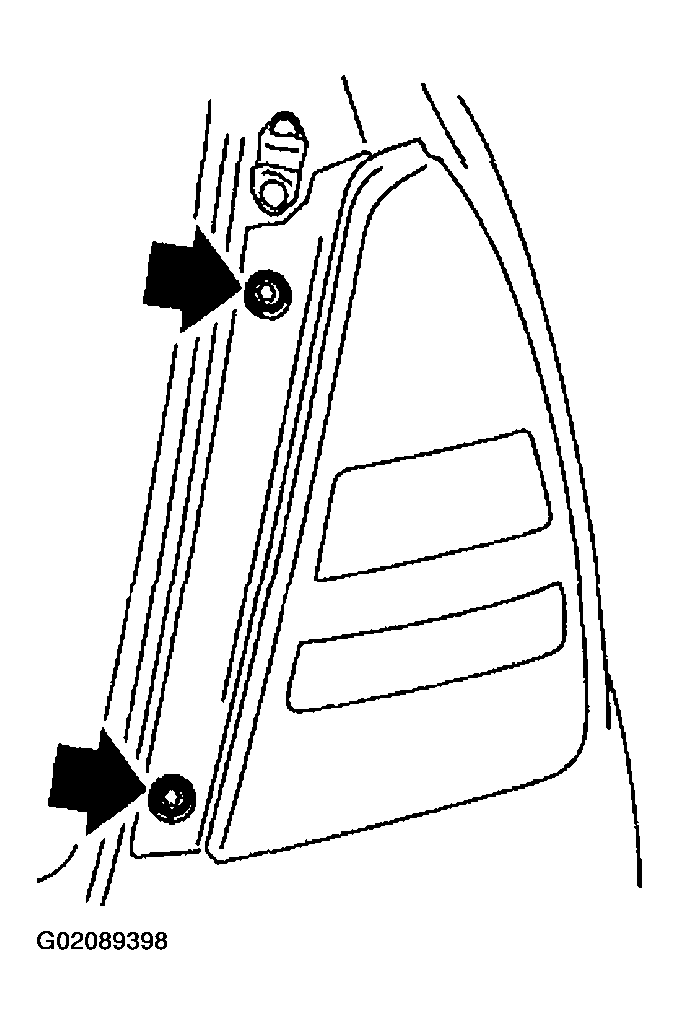

    Fig 1: Removing Bolts
    G02089398Courtesy of SUBARU OF AMERICA, INC.

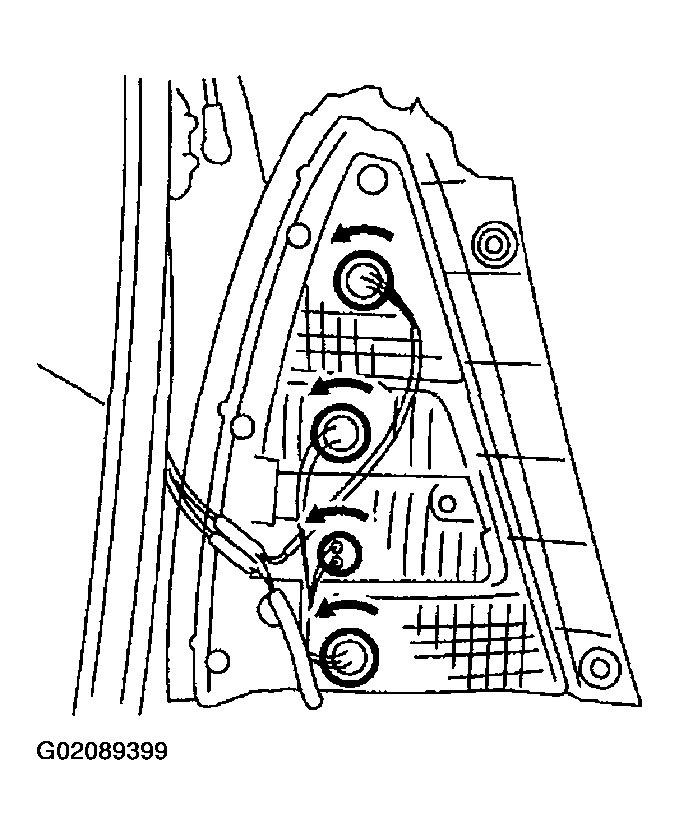

    Fig 2: Turning Socket & Disconnecting Cord Assembly
    G02089399Courtesy of SUBARU OF AMERICA, INC.
