Removing And Installing Brake Fluid Reservoir - AR42.10-P-0301SR
MODEL 453
| Risk of poisoning
from swallowing brake fluid. Risk of injury from skin and eye contact with brake fluid |
Only pour brake fluid into suitable and appropriately marked containers. Wear protective clothing and eye protection when handling brake fluid. | AS42.50-Z-0001-01A | |
| Notes on repairs to brake system | AH42.00-P-0003-01A | ||
| Brake fluid notes | AH42.50-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove maintenance flap | ||
| 2 | Disconnect electrical connector from hydraulic fluid reservoir for brake fluid (3) | ||
| Clean | |||
| 3 | Clean area around cap of hydraulic fluid reservoir for brake fluid (3) | ||
| 4 | Unscrew cap of hydraulic fluid reservoir for brake fluid (3) and extract brake fluid from hydraulic fluid reservoir for brake fluid (3) | ||
| 5 | Pinch off brake hose for clutch operating system using suitable hose clamp pliers and pull off brake hose for clutch operating system | ||
| 6 | Remove retaining clip (2) carefully in direction of arrow | ||
| 7 | Lift out hydraulic fluid reservoir for brake fluid (3) in direction of arrow | ||
| 8 | Collect escaping brake fluid with an absorbent rag | ||

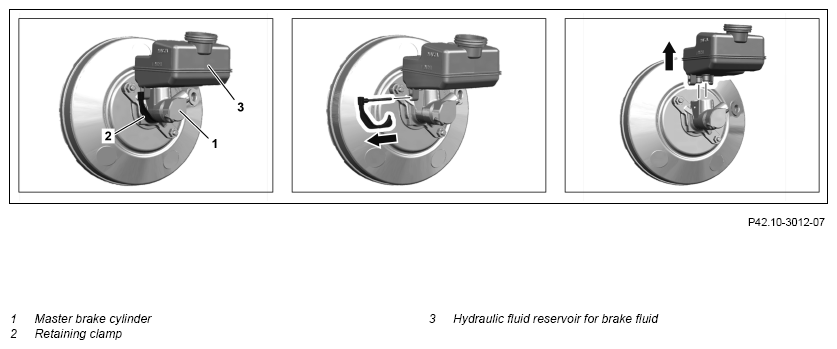

| 9 | Seal connections on master brake cylinder (1) | Figure | |
| 10 | Install in the reverse order | ||
| 11 | Bleed brake system | AR42.10-P-0010SR | |
| Check | |||
| 12 | Check brake system in area of hydraulic fluid reservoir for brake fluid (3) for leaktightness | ||
| 13 | Check fluid level in hydraulic fluid reservoir for brake fluid (3); correct if necessary General brake fluid | BB00.40-P-0330-01A | |
| Brake fluids (DOT 4 plus) | BB00.40-P-0331-00A |
