Remove/Install Gearshift Lever With Bearing Bracket - AR26.60-P-6604SR
MODEL 453 (except 453.09/39/49) with TRANSMISSION 700.12
| Remove/install | |||
| 1 | Remove center console | AR68.20-P-2000SR | |
| 2 | Detach parking brake lever from body | AR42.20-P-0500SR | |

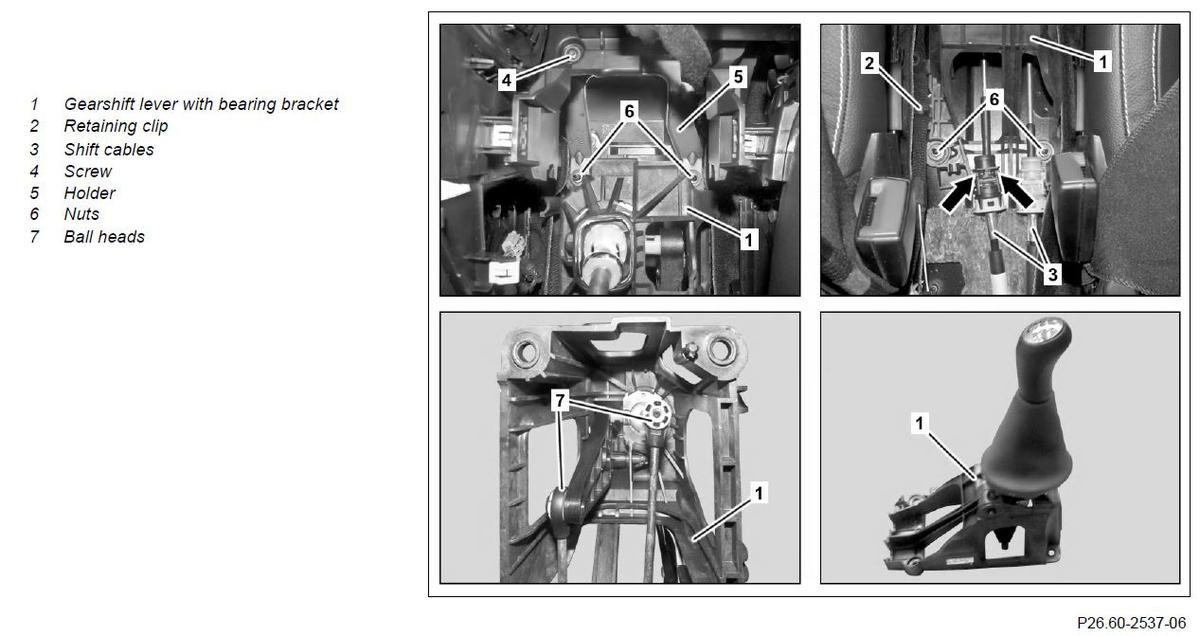

| 3 | Unclip retaining clip (2) | ||
| 4 | Detach shift cables (3) from holders, to do so release both locks inwards (arrows) and remove each shift cable (3) upwards at same time | The procedure is identical on both shift cables (3). | |
| 5 | Remove bolt (4) from blank holder (5) | ||
| 6 | Unscrew nuts (6) | ||
| 7 | Remove blank holder (5) from working area | ||
| 8 | Use suitable tool to unclip ball heads (7) from shift cables (3) | Raise gearshift lever slightly and turn with bearing bracket (1). | |
| 9 | Remove gearshift lever with bearing bracket (1) | ||
| 10 | Install in the reverse order |
