Remove/Install Axle Shaft Radial Shaft Sealing Rings - AR26.40-P-0339SR

MODEL 453

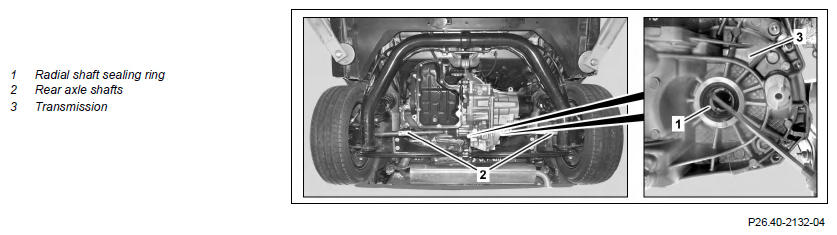

Shown on model 453.04

Courtesy of MERCEDES-BENZ USA

	Remove
1	Remove left or right rear axle shaft (2)	Model 453 Model 453.091/391/491	AR35.30-P-0620SRE
		Model 453 with transmission 700.41	AR35.30-P-0620SRA
		Model 453 with transmission 700.12	AR35.30-P-0620SR
2	Pry radial shaft sealing ring (1) out of transmission (3) using a suitable tool	Do not damage seat surface of radial shaft sealing ring (1). Leaks may occur otherwise.
	Clean
3	Clean seat surface of radial shaft sealing ring (1) using lint-free dry cloth
	Install
4	Install new radial shaft sealing ring (1)	Drift	Fig 1
5	Install left or right rear axle shaft (2)	Model 453 Model 453.091/391/491	AR35.30-P-0620SRE
		Model 453 with transmission 700.41	AR35.30-P-0620SRA
		Model 453 with transmission 700.12	AR35.30-P-0620SR

Fig 1: Identifying Drift (700 589 10 15 00)

Courtesy of MERCEDES-BENZ USA
