Remove/Install Electric Fan - AR20.40-P-5000SRE
ENGINE 780.997 in MODEL 453.091/391/491
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Disconnect battery ground line | AR54.10-P-0003SR | |
| 2 | Remove subwoofer | Engine 780.997 in model 453.091/391/491 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) Engine 780.997 in model 453.091/391/491 with code 557 (RADIO 57A MM2012 without DAB) Engine 780.997 in model 453.091/391/491 with code 561 (Radio 61C - PREMIUM without DAB with PREMIUM SOUND) Engine 780.997 in model 453.091/391/491 with code 562 (Radio 62C - R0 with DAB and PREMIUM SOUND) |
|
| 3.1 | Remove floor covering in trunk | Engine 780.997 in model 453.091 | |
| 3.2 | Fold floor covering in trunk forwards | Engine 780.997 in model 453.391/491 | |
| 4 | Remove covering over engine | ||

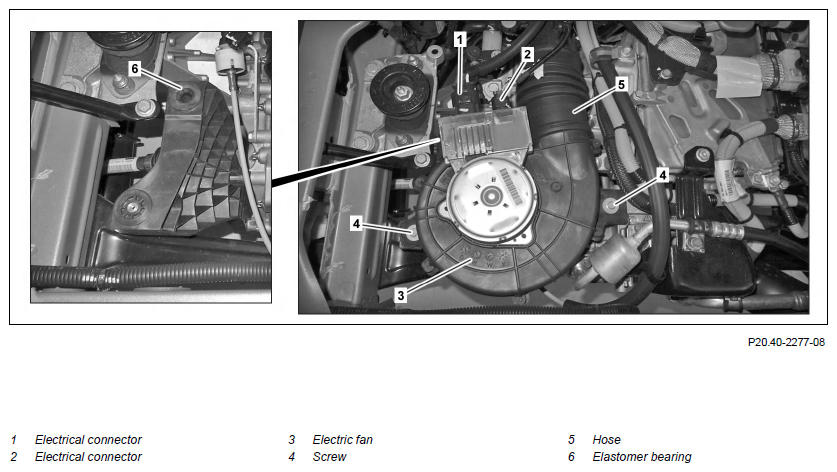

| 5 | Disconnect electrical connections (1, 2) from electric fan (3) | ||
| 6 | Remove screw/bolts (4) | *BA20.40-P-1001-01C | |
| *BA20.40-P-1002-01C | |||
| 7 | Detach electric fan (3) from hose (5) and remove | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 |
Perform function test of electric fan (3) with diagnostic system | AD00.00-P-2000-06SR |
FAN, FAN CLUTCH
| Number | Designation | Engine 780.997 in model 453 | |
|---|---|---|---|
| BA20.40-P-1001-01C | Bolt, electric fan to carrier | Nm | 8 |
FAN, FAN CLUTCH
| Number | Designation | Engine 780.997 in model 453 | |
|---|---|---|---|
| BA20.40-P-1002-01C | Bolt, electric fan to transmission | Nm | 8 |
