Remove/Install Backup Camera - AR54.65-P-0030SRC
MODEL 453.3/4
with CODE 218 (Rear view camera)
MODEL 453.3/4
with CODE V52 (Combination code for rear parking aid and reversing camera)

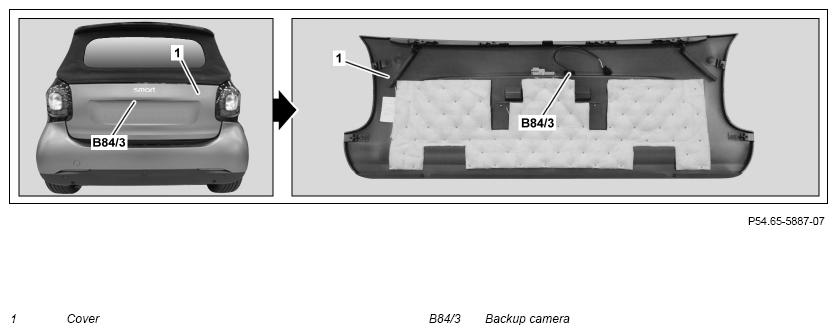

Shown on model 453.4
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Remove trim (1) | AR72.20-P-1016SRA | |
| 2 | Release reversing camera (B84/3) from inside and remove outwards | ||
| 3 | Install in the reverse order | ||
| Calibrate | |||
| 4 | Calibrate reversing camera (B84/3) using the diagnostic system and calibration device | AR54.65-P-0022SR |
