Remove/Install Outside Trim On Liftgate - AR72.20-P-1016SRA

MODEL 453.3/4

Shown on Model 453.3

Shown on Model 453.4 with code V52 (combination code for rear parking assist and reversing camera)

	Risk of injury  caused by fingers being jammed or pinched when removing, installing or aligning hoods, doors, trunk lid/rear-end door or sliding roof.	No parts of the body or limbs should be within the operating area when the components are moving.	AS00.00-Z-0011-01A
	Remove/install

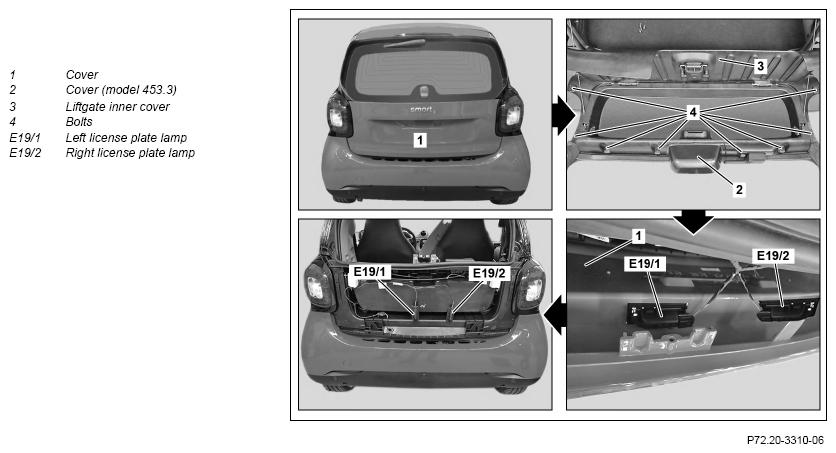

1	Unclip cover (2)	Model 453.3
2	Open liftgate inner cover (3)	Model 453.3
3	Remove screws (4)
4	Fold out paneling (1) in upper area until left license plate lamp (E19/1) and right license plate lamp (E19/2) are accessible
5	Unclip left license plate lamp (E19/1) and right license plate lamp (E19/2) from paneling (1), and remove

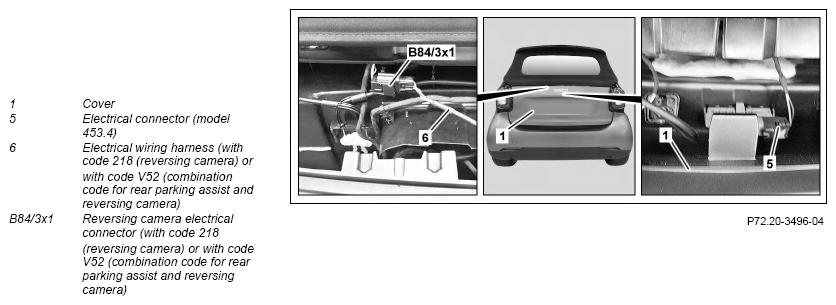

6	Disconnect electrical connection (5)	Model 453.4
7	Detach electrical connection from backup camera (B84/3x1)	Model 453.3/4 with code 218 (Rear view camera) Model 453.3/4 with code V52 (Combination code for rear parking aid and reversing camera)
8	Remove trim panel (1)	: Model 453.3/4 with code 218 (Rear view camera) Model 453.3/4 with code V52 (Combination code for rear parking aid and reversing camera) Ensure that the electrical wiring harness (6) is correctly routed. Otherwise the electrical wiring harness (6) may be damaged, causing the reversing camera to malfunction.
9	Remove reversing camera	Model 453.3/4 with code 218 (Rear view camera) Model 453.3/4 with code V52 (Combination code for rear parking aid and reversing camera) When replacing trim (1).	AR54.65-P-0030SRC
10	Remove liftgate release switch	Model 453.4 When replacing trim (1).	AR72.20-P-2558SRC
11	Install in the reverse order
