Remove/Install 12 Volt Socket - AR54.10-P-1000SR
MODEL 453
MODIFICATION NOTES
| 04.08.2016 | Document regarding armrest at center console revised. |
Shown on model 453.0 except code J59 (Center armrest)
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Move driver seat towards the front | ||
| 3 | Fold backrest of driver's seat forward | Model 453.3/4 | |

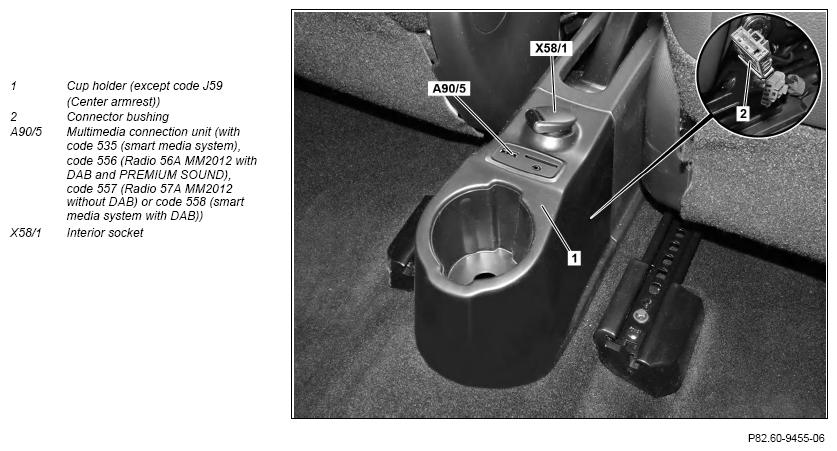

| 4.1 | Unscrew screw/bolt of cup holder (1) and unclip cup holder (1) upward | Model 453 except code J59 (Center armrest) |
|
| 4.2 | Remove armrest at center console and place to one side with lines connected | Model 453 with code J59 (Center armrest) |
AR68.20-P-2026SR |
| 5 | Disconnect connector bushing (2) from interior socket (X58/1) | ||
| 6 | Disconnect electrical connector of multimedia connection unit (A90/5) | Model 453 with code 535 (smart Media system) Model 453 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) Model 453 with code 557 (RADIO 57A MM2012 without DAB) Model 453 with code 558 (smart Media system with DAB) |
|

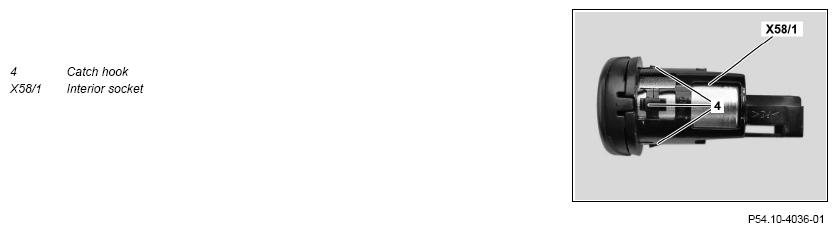

| 7 | Push together catch hooks (4) and pull interior socket (X58/1) out | ||
| 8 | Install in the reverse order | ||
| Check | |||
| 9 | Check interior socket (X58/1) for proper operation |
