Remove/Install Armrest On Center Console - AR68.20-P-2026SR
MODEL 453
with CODE J59 (Center armrest)

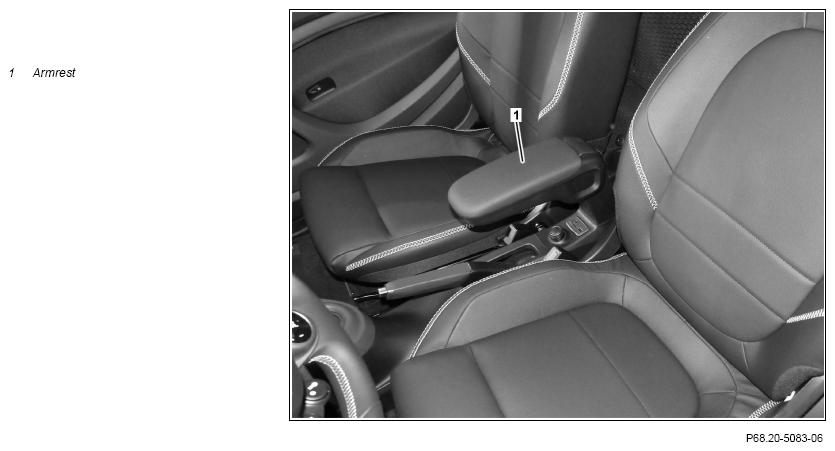

Shown on Model 453.3
Shown on Model 453.3
| Information on preventing damage to electronic components due to electrostatic discharge | AH54.00-P-0001-01A | ||
| Remove/install | |||
| 1 | Switch off ignition and remove transmitter key | ||
| 2 | Move both front seats forward | ||
| 3 | Fold both front backrest toward front | Model 453.3/4 with code J59 (Center armrest) |
|

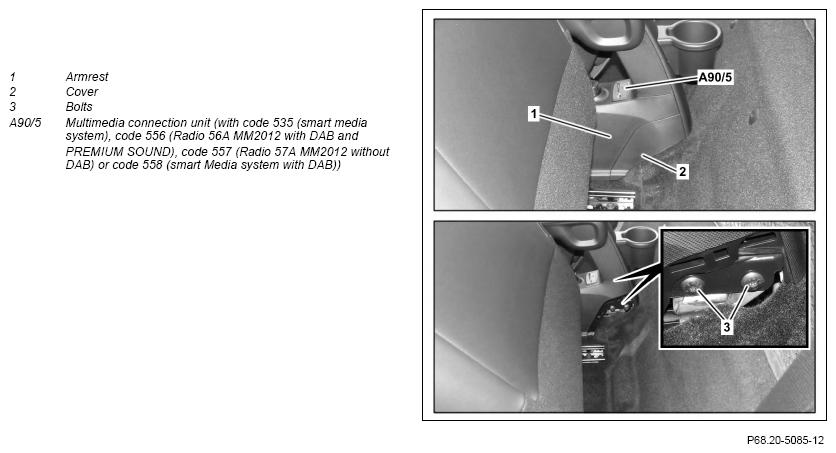

| 4 | Unclip left and right cover (2) | Figure | |
| 5 |
Remove bolts (3) Notes on bolted connections with self tapping screws |
AH00.00-P-0007-01SM | |
| 6 | Remove armrest (1) upward and disconnect electrical connectors | The armrest (1) must be flush up to the center console. |
|
| 7 | Unclip multimedia connection unit (A90/5) and remove | Model 453 with code 535 (smart Media system) with code J59 (Center armrest) Model 453 with code 556 (Radio 56A MM2012 with DAB and PREMIUM SOUND) with code J59 (Center armrest) Model 453 with code 557 (RADIO 57A MM2012 without DAB) with code J59 (Center armrest) Model 453 with code 558 (smart Media system with DAB) with code J59 (Center armrest) When replacing armrest (1). |
|
| 8 | Remove 12-V socket | When replacing armrest (1). | AR54.10-P-1000SR |
| 9 | Install in the reverse order | ||
| Check | |||
| 10 | Check adjustment of armrest (1) |
