Remove/Install Spray-Nozzle For Rear Window - AR82.35-P-7338SR

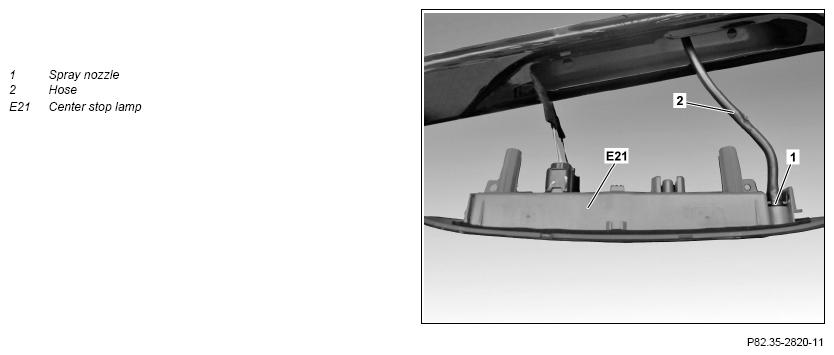

MODEL 453.0/3

MODEL 453.0

Courtesy of MERCEDES-BENZ USA

Courtesy of MERCEDES-BENZ USA

Model 453.3

	Remove/install
1.1	Remove center brake lamp (E21)	Model 453.0	AR82.10-P-5375SR
1.2	Remove rear spoiler (3)	Model 453.3	AR72.20-P-4000SRA
2	Unclip spray nozzle (1)	: Make sure that the spray nozzle (1) is installed at the correct position. Clip remover	Figure
3	Detach hose (2) from spray nozzle (1) and collect leaking washer fluid
4	Install in the reverse order
5	Adjust spray nozzle (1)		AR82.35-P-6975SR

Fig 1: Identifying Clip Remover (452 589 01 63 00)

Courtesy of MERCEDES-BENZ USA
