Inspect Condition Of Brake Disks - AP42.10-P-4258S

MODEL 453

Courtesy of MERCEDES-BENZ USA

	Risk of injury  . Skin or eye injuries may result when handling hot or glowing objects.	Wear protective gloves, protective clothing and safety glasses, if necessary.	AS00.00-Z-0002-01A
	Notes on repairs to brake system		AH42.00-P-0003-01A
	Remove
1	Detach complete wheels at front axle		AR40.10-P-1100SR
	Check
2	Check brake disks (1) on front axle for cracks or score marks	Cracks can occur due to high stress. Brake disks (1) do not have to be replaced when the crack length is a maximum of 25 mm (0.98 inches). For cracks and scores that have widened or that are deeper than 0.5 mm (0.02 inches): ↓ Replace brake disks (1) subject to separate repair order.
	Measure

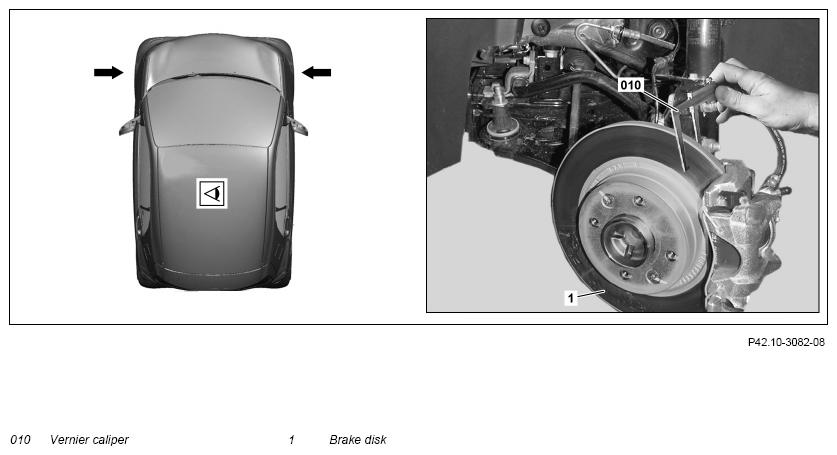

3	Measure brake disk thickness on front axle using vernier caliper (010)	Check values for front axle brake disks Brake disk thickness	*BE42.10-P-1001-08Y
		Caliper gauge Observe recommended limit dimensions. If the wear limit has been exceeded or will be exceeded before the next brake pad change: ↓ Replace brake disks (1) subject to separate repair order.	Fig 1
	Install
4	Mount front axle wheel and tire assemblies		AR40.10-P-1100SR

CHECK VALUES FOR FRONT AXLE BRAKE DISKS

Number	Designation			Model 453 Brake disks not internally ventilated	Model 453 Brake disks internally ventilated
BE42.10-P-1001-08Y	Brake disk thickness	New	mm	12	22
		Minimum brake disk thickness for maintenance service	mm	10, 6	19, 8

Fig 1: Identifying Caliper Gauge (140 589 00 19 00)

Courtesy of MERCEDES-BENZ USA
